Bentley Mulsanne S reservoir & hoses – schema ir OEM kodai

Electrical System · 46 pozicijos · 0 skelbimų

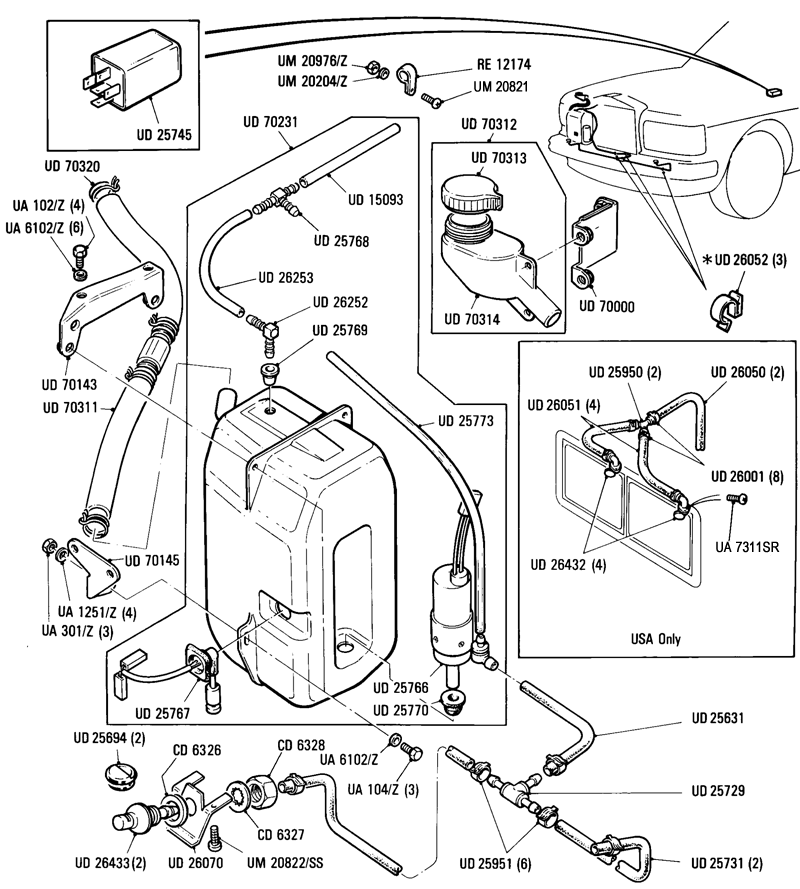

Schema

Paspauskite schemą, kad padidintumėte, arba poziciją lentelėje.

Pozicijos ir kodai

Nr.	Detalė / OEM kodas	Skelb.	Kaina nuo
1	ASSY BRACKET MOUNTING HEADLAMP WASHER RESERVOIR LOWER UD70145	–	–	Ieškoti
2	ASSY BRACKET MOUNTING HEADLAMP WASHER RESERVOIR UPPER UD70143	–	–	Ieškoti
3	ASSY FILLER NECK & CAP HEADLAMP WASH RESERVOIR UD70312	–	–	Ieškoti
4	ASSY FILLER TUBE HEADLAMP WASHER RESERVOIR UD70311	–	–	Ieškoti
5	ASSY JET HEADLAMP POWER WASH UD26433	–	–	Ieškoti
6	ASSY JET HEADLAMP WASH UD26432	–	–	Ieškoti
7	ASSY LOW LEVEL INDICATOR RESERVOIR HEADLAMP POWER WASH UD25767	–	–	Ieškoti
8	ASSY MOUNTING BRACKET FILLER NECK HEADLAMP WASH RESERVOIR UD70000	–	–	Ieškoti
9	ASSY RESERVOIR HEADLAMP POWER WASH UD70231	–	–	Ieškoti
10	BOLT .250 UNF X .500 IN. LONG UA102Z	–	–	Ieškoti
11	BOLT .250 UNF X .750 IN. LONG UA104Z	–	–	Ieškoti
12	BRACKET JET HEADLAMP WASH UD26070	–	–	Ieškoti
13	CLIP RE12174	–	–	Ieškoti
4	DOMED NUT UB12975	–	–	Ieškoti
14	EDGE CLIP HOSE RETENTION UD26052	–	–	Ieškoti
14	EDGE CLIP HOSE RETENTION UD25964	–	–	Ieškoti
15	FILLER CAP HEADLAMP WASH RESERVOIR UD70313	–	–	Ieškoti
16	FILLER NECK HEADLAMP WASH RESERVOIR UD70314	–	–	Ieškoti
17	GROMMET RESERVOIR HEADLAMP POWER WASH UD25770	–	–	Ieškoti
18	GROMMET RESERVOIR HEADLAMP POWER WASH UD25769	–	–	Ieškoti
19	HOSE CLIP 13.50/15.00MM UD26001	–	–	Ieškoti
20	HOSE CLIP 16/17MM (YELLOW) UD25951	–	–	Ieškoti
21	HOSE CLIP 22/25MM UD70320	–	–	Ieškoti
22	JET COVER HEADLAMP POWER WASH UD25694	–	–	Ieškoti
23	NUT CD6328	–	–	Ieškoti
24	NUT PLAIN .250 UNF UA301Z	–	–	Ieškoti
25	NUT PLAIN M5 UM20976Z	–	–	Ieškoti
4	P CLIP NYLON .937 IN. NOMINAL UD12534	–	–	Ieškoti
26	PUMP HEADLAMP POWER WASH UD25766	–	–	Ieškoti
27	RIGHT ANGLED CONNECTOR VENT HOSE HEADLAMP WASH UD26252	–	–	Ieškoti
28	SCREW PAN HEAD M5 X 6MM LONG UM20821	–	–	Ieškoti
29	SCREW PAN HEAD M5 X 8MM LONG UM20822SS	–	–	Ieškoti
30	SCREW PAN HEAD NO.6 X .250 IN. LONG UA7311SR	–	–	Ieškoti
4	SCREW TEKS SPC2664	–	–	Ieškoti
31	T PIECE HEADLAMP WASH HOSE UD25768	–	–	Ieškoti
32	T VALVE HEADLAMP POWER WASH UD25729	–	–	Ieškoti
33	TIMING RELAY HEADLAMP POWER WASH UD25745	–	–	Ieškoti
34	TUBE HEADLAMP POWER WASH PUMP TO 3 WAY UD25631	–	–	Ieškoti
35	TUBE HEADLAMP POWER WASH T VALVE TO JET UD25731	–	–	Ieškoti
36	TUBE HEADLAMP WASHER 18.500 IN. UD26051	–	–	Ieškoti
37	TUBE HEADLAMP WASHER 26.500 IN. UD26050	–	–	Ieškoti
38	VENT HOSE HEADLAMP WASH UD26253	–	–	Ieškoti
39	VENT HOSE HEADLAMP WASHERS UD15093	–	–	Ieškoti
40	VENT HOSE T PIECE TO PUMP RESERVOIR HEADLAMP POWER WASH UD25773	–	–	Ieškoti
41	WASHER CD6326	–	–	Ieškoti
42	WASHER LOCK CD6327	–	–	Ieškoti
43	WASHER PLAIN .265 IN. I.D. UA1251Z	–	–	Ieškoti
44	WASHER PLAIN M5 UM20204Z	–	–	Ieškoti
45	WASHER THICK .255 IN. I.D. UA6102Z	–	–	Ieškoti
46	Y PIECE HEADLAMP WASHER HOSE UD25950	–	–	Ieškoti
