Bentley Mulsanne S fuel filter & pipes – schema ir OEM kodai
Fuel & Emission Control Systems · 40 pozicijų · 0 skelbimų

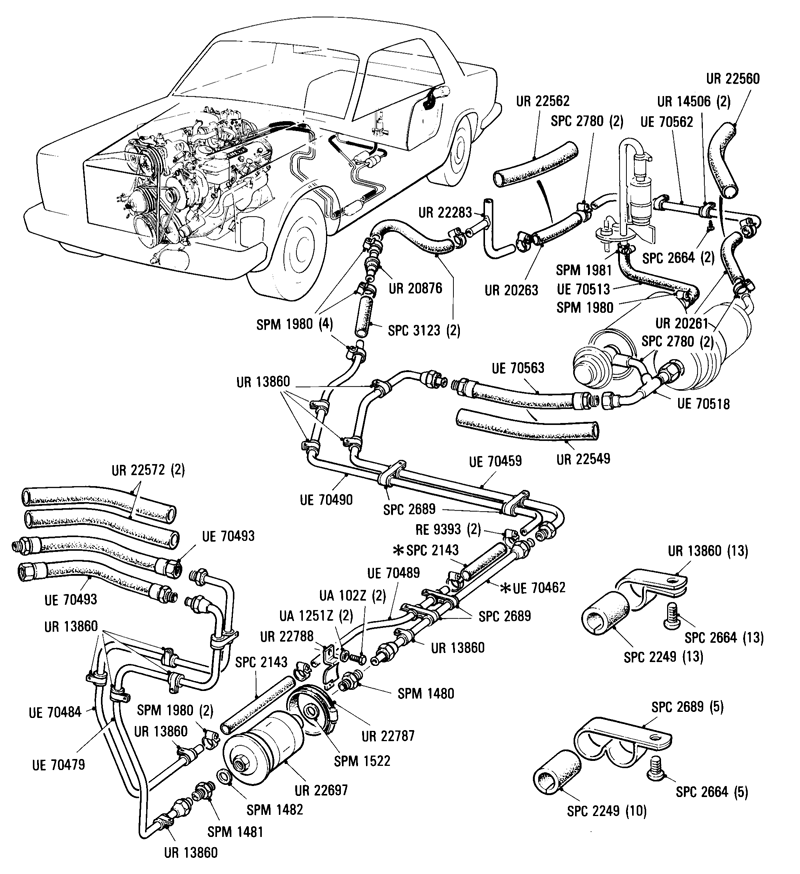

Visos Bentley Mulsanne S dalys →Schema
Paspauskite schemą, kad padidintumėte, arba poziciją lentelėje.
Pozicijos ir kodai
| Nr. | Detalė / OEM kodas | Skelb. | Kaina nuo | |
|---|---|---|---|---|
| 1 | ADAPTOR M12/M14 SPM1481 | – | – | Ieškoti |
| 2 | ADAPTOR M14/M14 SPM1480 | – | – | Ieškoti |
| 3 | ASSY FUEL FEED PIPE ACCUMULATOR TO HEELBOARD UE70459 | – | – | Ieškoti |
| 4 | ASSY FUEL FEED PIPE FILTER TO ENGINE COMPARTMENT UE70479 | – | – | Ieškoti |
| 5 | ASSY FUEL FEED PIPE HEELBOARD TO FILTER LWB UE70464 | – | – | Ieškoti |
| 5 | ASSY FUEL FEED PIPE HEELBOARD TO FILTER SWB UE70462 | – | – | Ieškoti |
| 6 | ASSY FUEL HOSE ACCUMULATOR TO HEELBOARD UE70563 | – | – | Ieškoti |
| 7 | ASSY FUEL HOSE BODY TO ENGINE UE70493 | – | – | Ieškoti |
| 8 | ASSY FUEL PIPE RETURN TO TANK UR22283 | – | – | Ieškoti |
| 9 | ASSY FUEL PUMP & ACCUMULATOR PIPES UE70518 | – | – | Ieškoti |
| 10 | ASSY FUEL RETURN PIPE ENGINE COMPARTMENT TO SILL UE70484 | – | – | Ieškoti |
| 11 | BOLT .250 UNF X .500 IN. LONG UA102Z | – | – | Ieškoti |
| 12 | BUSH SPC2249 | – | – | Ieškoti |
| 13 | CLIP SPC2780 | – | – | Ieškoti |
| 14 | CLIP HYDRAULIC PIPES 1 WAY UR14506 | – | – | Ieškoti |
| 15 | CLIP PIPE SPC2689 | – | – | Ieškoti |
| 16 | FUEL FILTER UR22697 | – | – | Ieškoti |
| 17 | FUEL HOSE .221 IN. I.D. X 13.000 IN. LONG UR20261 | – | – | Ieškoti |
| 18 | FUEL HOSE .221 IN. I.D. X 7.000 IN. LONG UR20263 | – | – | Ieškoti |
| 19 | FUEL RETURN PIPE HEELBOARD TO NON RETURN VALVE UE70490 | – | – | Ieškoti |
| 20 | FUEL RETURN PIPE TOEBOARD TO HEELBOARD UE70489 | – | – | Ieškoti |
| 21 | HOSE 3.250 IN. LONG SPC3123 | – | – | Ieškoti |
| 22 | HOSE CLIP JUBILEE RE9393 | – | – | Ieškoti |
| 23 | HOSE CLIP 12/20MM SPM1981 | – | – | Ieškoti |
| 24 | HOSE CLIP 8/16MM SPM1980 | – | – | Ieškoti |
| 25 | HOSE FUEL LINE SPC2143 | – | – | Ieškoti |
| 26 | HOSE FUEL LINE SPC2147 | – | – | Ieškoti |
| 27 | HOSE PRE PUMP TO FUEL PUMP UE70513 | – | – | Ieškoti |
| 28 | INSULATION SLEEVE 12MM I.D. 30MM O.D. X 162MM LONG UR22562 | – | – | Ieškoti |
| 29 | INSULATION SLEEVE 12MM I.D. 30MM O.D. X 290MM LONG UR22560 | – | – | Ieškoti |
| 30 | INSULATION SLEEVE 15MM I.D. 27MM O.D. X 215MM LONG UR22549 | – | – | Ieškoti |
| 31 | ISOLATING SLEEVE FUEL FILTER UR22787 | – | – | Ieškoti |
| 32 | MOUNTING BRACKET FUEL FILTER UR22788 | – | – | Ieškoti |
| 33 | NON RETURN VALVE FUEL SYSTEM UR20876 | – | – | Ieškoti |
| 34 | P CLIP .687 IN. UR13860 | – | – | Ieškoti |
| 35 | PIPE FUEL ACCUMULATOR DRAIN UE70562 | – | – | Ieškoti |
| 36 | RUBBER SLEEVE 25MM I.D. X 505MM LONG UR22572 | – | – | Ieškoti |
| 37 | SCREW TEKS SPC2664 | – | – | Ieškoti |
| 38 | WASHER PLAIN .265 IN. I.D. UA1251Z | – | – | Ieškoti |
| 39 | WASHER SEALING SPM1482 | – | – | Ieškoti |
| 40 | WASHER SEALING SPM1522 | – | – | Ieškoti |
