Bentley Mulsanne S input shaft & differential – schema ir OEM kodai

Final Drive · 37 pozicijos · 0 skelbimų

Visos Bentley Mulsanne S dalys →

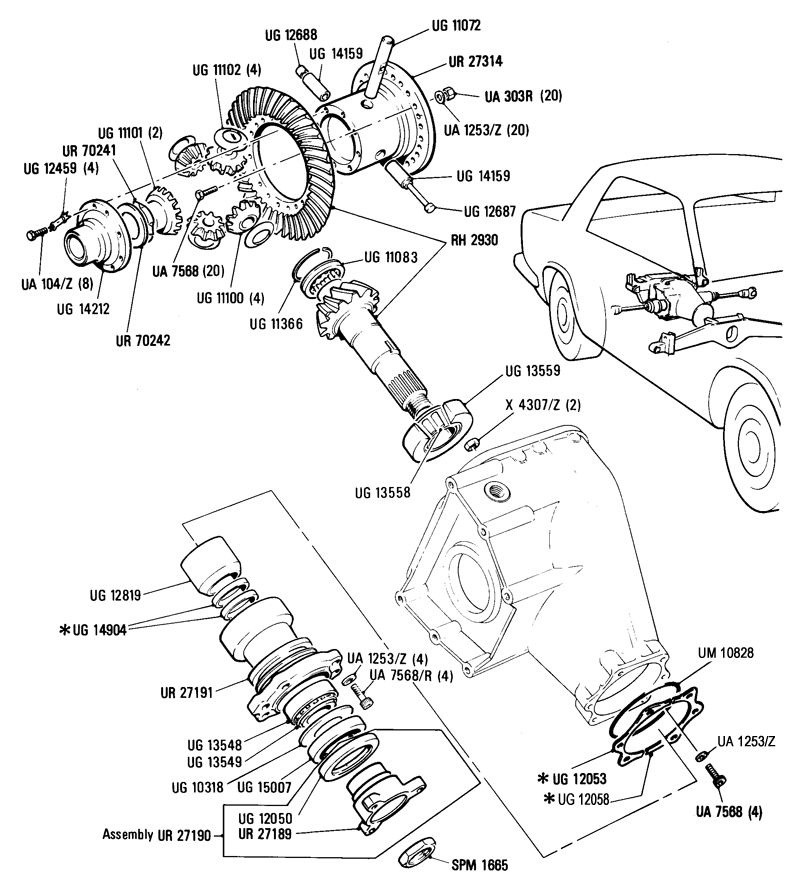

Schema

Paspauskite schemą, kad padidintumėte, arba poziciją lentelėje.

Pozicijos ir kodai

Nr.Detalė / OEM kodasKaina nuo
1ADJUSTING WASHER FINAL DRIVE PINION BEARING HOUSING (.120 IN.)
UG13960		–Ieškoti
2ADJUSTING WASHER FINAL DRIVE PINION BEARING HOUSING (.120 IN.)
UG13958		–Ieškoti
2ADJUSTING WASHER FINAL DRIVE PINION BEARING HOUSING (.125 IN.)
UG12053		–Ieškoti
1ADJUSTING WASHER FINAL DRIVE PINION BEARING HOUSING (.125 IN.)
UG12058		–Ieškoti
1ADJUSTING WASHER FINAL DRIVE PINION BEARING HOUSING (.130 IN.)
UG13961		–Ieškoti
2ADJUSTING WASHER FINAL DRIVE PINION BEARING HOUSING (.130 IN.)
UG13959		–Ieškoti
1ADJUSTING WASHER FINAL DRIVE PINION BEARING HOUSING (.137 IN.)
UG12059		–Ieškoti
2ADJUSTING WASHER FINAL DRIVE PINION BEARING HOUSING (.137 IN.)
UG12054		–Ieškoti
1ADJUSTING WASHER FINAL DRIVE PINION BEARING HOUSING (.149 IN.)
UG12060		–Ieškoti
2ADJUSTING WASHER FINAL DRIVE PINION BEARING HOUSING (.149 IN.)
UG12055		–Ieškoti
3ADJUSTING WASHER PINION BEARINGS FINAL DRIVE (.270 IN.)
UG14904		–Ieškoti
3ADJUSTING WASHER PINION BEARINGS FINAL DRIVE (.271 IN.)
UG14905		–Ieškoti
3ADJUSTING WASHER PINION BEARINGS FINAL DRIVE (.272 IN.)
UG14906		–Ieškoti
3ADJUSTING WASHER PINION BEARINGS FINAL DRIVE (.273 IN.)
UG14907		–Ieškoti
3ADJUSTING WASHER PINION BEARINGS FINAL DRIVE (.274 IN.)
UG14908		–Ieškoti
3ADJUSTING WASHER PINION BEARINGS FINAL DRIVE (.275 IN.)
UG14909		–Ieškoti
3ADJUSTING WASHER PINION BEARINGS FINAL DRIVE (.280 IN.)
UG14910		–Ieškoti
3ADJUSTING WASHER PINION BEARINGS FINAL DRIVE (.285 IN.)
UG14911		–Ieškoti
3ADJUSTING WASHER PINION BEARINGS FINAL DRIVE (.290 IN.)
UG14912		–Ieškoti
3ADJUSTING WASHER PINION BEARINGS FINAL DRIVE (.295 IN.)
UG14913		–Ieškoti
3ADJUSTING WASHER PINION BEARINGS FINAL DRIVE (.300 IN.)
UG14914		–Ieškoti
4ASSY COUPLING FLANGE FINAL DRIVE PINION
UR27190		–Ieškoti
5BEARING FINAL DRIVE PINION
UG11083		–Ieškoti
6BEARING HOUSING PINION FINAL DRIVE
UR27191		–Ieškoti
7BELLEVILLE WASHER FINAL DRIVE
UR70242		–Ieškoti
8BEVEL GEAR DIFFERENTIAL
UG11100		–Ieškoti
9BEVEL GEAR DIFFERENTIAL
UG11101		–Ieškoti
10BOLT .250 UNF X .750 IN. LONG
UA104Z		–Ieškoti
11CAP HOUSING DIFFERENTIAL GEARS
UG14212		–Ieškoti
12CAPSCREW SOCKET HEAD .375 UNF X 1.250 IN. LONG
UA7568		–Ieškoti
13CAPSCREW SOCKET HEAD .375 UNF X 1.250 IN. LONG
UA7568R		–Ieškoti
14CONE BEARING FINAL DRIVE COUPLING FLANGE
UG13548		–Ieškoti
15CONE BEARING FINAL DRIVE PINION
UG13558		–Ieškoti
16COUPLING FLANGE FINAL DRIVE PINION
UR27189		–Ieškoti
17CUP BEARING FINAL DRIVE COUPLING FLANGE
UG13549		–Ieškoti
18CUP BEARING FINAL DRIVE PINION
UG13559		–Ieškoti
19GUARD OIL SEAL COUPLING FLANGE FINAL DRIVE
UG12050		–Ieškoti
20HOUSING BEVEL GEARS DIFFERENTIAL
UR27314		–Ieškoti
21LOCK PLATE CAP DIFFERENTIAL GEAR HOUSING
UG12459		–Ieškoti
22LOCKNUT DIFFERENTIAL TRUNNION
UG12688		–Ieškoti
23LONG TRUNNION DIFFERENTIAL PINION
UG11072		–Ieškoti
24NUT AXLE PINION
SPM1665		–Ieškoti
25NUT LOCK 2BA
X4307Z		–Ieškoti
26NUT PLAIN .375 UNF
UA303R		–Ieškoti
27O RING 3.859 IN. I.D. X .139 IN.
UM10828		–Ieškoti
28OIL FLINGER FINAL DRIVE PINION BEARING
UG10318		–Ieškoti
29OIL SEAL FINAL DRIVE PINION FLANGE
UG15007		–Ieškoti
30SCREW DIFFERENTIAL TRUNNION
UG12687		–Ieškoti
31SET CROWN WHEEL & PINION 16/43
RH2930		–Ieškoti
32SHORT TRUNNION DIFFERENTIAL PINION
UG14159		–Ieškoti
33SNAP RING PINION BEARING FINAL DRIVE
UG11366		–Ieškoti
34SPACER BELLEVILLE WASHER FINAL DRIVE
UR70241		–Ieškoti
35SPACER PINION FINAL DRIVE
UG12819		–Ieškoti
36THRUST WASHER DIFFERENTIAL BEVEL GEAR
UG11102		–Ieškoti
37WASHER PLAIN .390 IN. I.D.
UA1253Z		–Ieškoti
