Bentley Mulsanne S gearbox actuator & loom assembly ud 70286a1 – schema ir OEM kodai

Electrical System · 55 pozicijos · 0 skelbimų

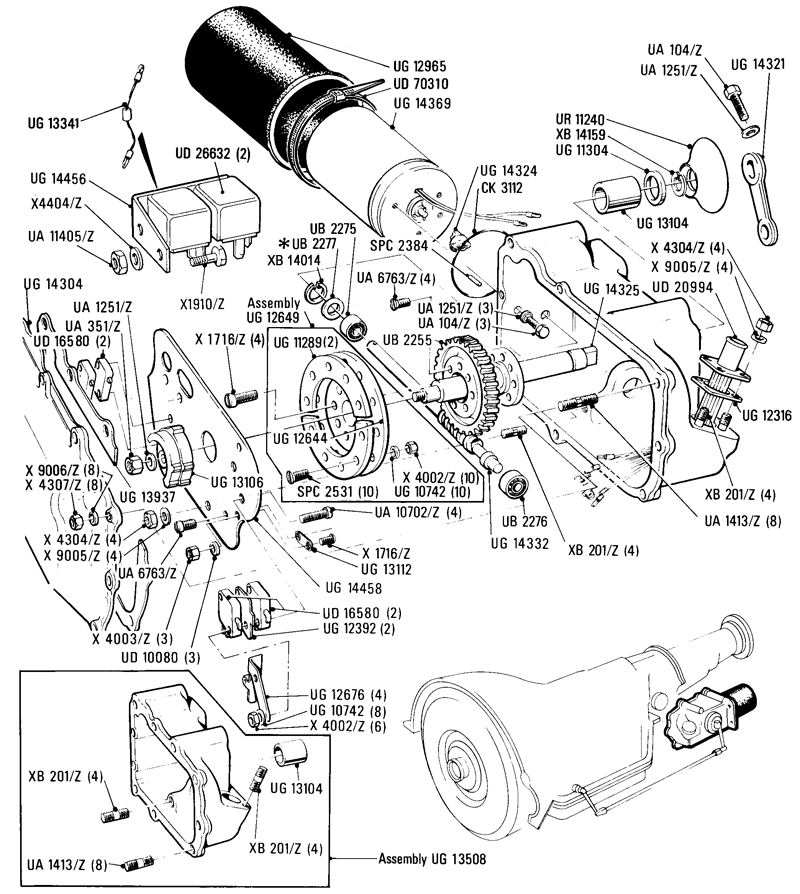

Schema

Paspauskite schemą, kad padidintumėte, arba poziciją lentelėje.

Pozicijos ir kodai

Nr.	Detalė / OEM kodas	Skelb.	Kaina nuo
1	ADAPTOR LOOM CONDUIT GEAR CHANGE ACTUATOR UD20994	–	–	Ieškoti
2	ASSY MAIN CASING TRANSMISSION ACTUATOR UG13508	–	–	Ieškoti
3	ASSY PINION SHAFT TRANSMISSION ACTUATOR UG14325	–	–	Ieškoti
4	ASSY ROLLER MICROSWITCH UG12676	–	–	Ieškoti
5	ASSY SLIP RING TRANSMISSION ACTUATOR UG12649	–	–	Ieškoti
6	BALL BEARING GEARBOX ACTUATOR UB2276	–	–	Ieškoti
7	BASE SPRING CONTACTS GEAR SELECTOR ACTUATOR UG14458	–	–	Ieškoti
8	BOLT .250 UNF X .750 IN. LONG UA104Z	–	–	Ieškoti
9	BUSH OUTPUT LEVER TRANSMISSION ACTUATOR UG13104	–	–	Ieškoti
10	CABLE TIE UD70310	–	–	Ieškoti
11	CIRCLIP EXTERNAL .583 IN. DIAMETER XB14159	–	–	Ieškoti
12	CIRCLIP INTERNAL .838 IN. DIAMETER XB14014	–	–	Ieškoti
13	CONNECTING STRIP TRANSMISSION ACTUATOR UG13112	–	–	Ieškoti
14	COUPLING MOTOR TRANSMISSION ACTUATOR UG14324	–	–	Ieškoti
15	COVER TRANSMISSION ACTUATOR UG14304	–	–	Ieškoti
16	GAITER UR11240	–	–	Ieškoti
17	GASKET LOOM CONDUIT TO TRANSMISSION ACTUATOR UG12316	–	–	Ieškoti
18	GEAR WORM GEARBOX ACTUATOR UB2255	–	–	Ieškoti
19	JOINT COVER TRANSMISSION ACTUATOR UG13937	–	–	Ieškoti
20	LEVER GEAR SELECTOR TRANSMISSION ACTUATOR UG14321	–	–	Ieškoti
21	MICROSWITCH UD16580	–	–	Ieškoti
22	MOTOR TRANSMISSION ACTUATOR UG14369	–	–	Ieškoti
23	MOUNTING BRACKET RELAYS TRANSMISSION ACTUATOR UG14456	–	–	Ieškoti
24	NUT LOCK 2BA X4307Z	–	–	Ieškoti
25	NUT LOCK 3BA X4304Z	–	–	Ieškoti
26	NUT PLAIN 2BA UA11405Z	–	–	Ieškoti
27	NUT PLAIN 5BA X4003Z	–	–	Ieškoti
28	NUT PLAIN 6BA X4002Z	–	–	Ieškoti
29	NUT PLAIN LOCK .250 UNF UA351Z	–	–	Ieškoti
30	OPERATING CAM TRANSMISSION ACTUATOR UG13106	–	–	Ieškoti
31	PIN SHAFT SPC2384	–	–	Ieškoti
32	PLAIN BEARING UB2275	–	–	Ieškoti
33	PROTECTIVE BOOT TRANSMISSION ACTUATOR MOTOR UG12965	–	–	Ieškoti
34	RELAY UD26632	–	–	Ieškoti
35	SCREW CHEESE HEAD 2BA X .500 IN. LONG X1910Z	–	–	Ieškoti
36	SCREW CHEESE HEAD 5BA X .625 IN. LONG X1716Z	–	–	Ieškoti
37	SCREW CHEESE HEAD 6BA X 1.250 IN. LONG UA10702Z	–	–	Ieškoti
38	SCREW CSK HEAD 6BA X .500 IN. LONG SPC2531	–	–	Ieškoti
39	SCREW MUSHROOM HEAD 5BA X .375 IN. LONG UA6763Z	–	–	Ieškoti
40	SEAL RING CK3112	–	–	Ieškoti
41	SEGMENT SLIP RING TRANSMISSION ACTUATOR UG11289	–	–	Ieškoti
42	SEPARATOR MICROSWITCHES UG12392	–	–	Ieškoti
43	SLIP RING TRANSMISSION ACTUATOR UG12644	–	–	Ieškoti
44	STUD 2BA X 1.075 IN. LONG UA1413Z	–	–	Ieškoti
45	STUD 3BA X .750 IN. LONG XB201Z	–	–	Ieškoti
46	SUPPRESSOR TRANSMISSION ACTUATOR UG13341	–	–	Ieškoti
47	WASHER UG11304	–	–	Ieškoti
48	WASHER PLAIN .265 IN. I.D. UA1251Z	–	–	Ieškoti
49	WASHER PLAIN 2BA X4404Z	–	–	Ieškoti
50	WASHER SHAKEPROOF 5BA UD10080	–	–	Ieškoti
51	WASHER SHAKEPROOF 6BA UG10742	–	–	Ieškoti
52	WASHER SPACING BEARING .055 IN. UB2277	–	–	Ieškoti
52	WASHER SPACING BEARING .058 IN. UB2278	–	–	Ieškoti
52	WASHER SPACING BEARING .061 IN. UB2279	–	–	Ieškoti
52	WASHER SPACING BEARING .064 IN. UB2280	–	–	Ieškoti
52	WASHER SPACING BEARING .067 IN. UB2281	–	–	Ieškoti
52	WASHER SPACING BEARING .070 IN. UB2282	–	–	Ieškoti
53	WASHER SPRING 2BA X9006Z	–	–	Ieškoti
54	WASHER SPRING 3BA X9005Z	–	–	Ieškoti
55	WORMSHAFT TRANSMISSION ACTUATOR UG14332	–	–	Ieškoti
