Bentley Mulsanne S evaporator pipes & fittings – schema ir OEM kodai

Automatic Air Conditioning System · 25 pozicijos · 0 skelbimų

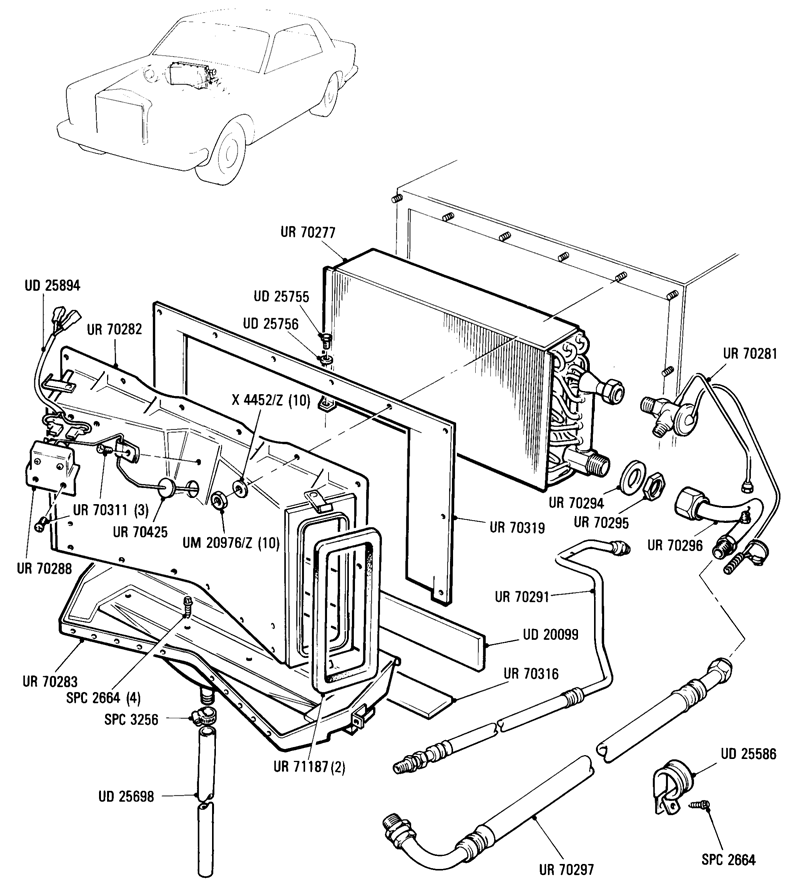

Schema

Paspauskite schemą, kad padidintumėte, arba poziciją lentelėje.

Nr.	Detalė / OEM kodas	Skelb.	Kaina nuo
1	ASSY COVER EVAPORATOR HVAC UR70282	–	–	Ieškoti
2	ASSY EVAPORATOR DRAIN TRAY UR70283	–	–	Ieškoti
3	ASSY EVAPORATOR HVAC UR70277	–	–	Ieškoti
4	ASSY REFRIGERATION HOSE RECEIVER DRIER TO EXPANSION VALVE UR70291	–	–	Ieškoti
5	ASSY REFRIGERATION HOSE SUCTION UR70297	–	–	Ieškoti
6	ASSY REFRIGERATION PIPE OUTLET EVAPORATOR UR70296	–	–	Ieškoti
7	ASSY THERMOSTAT SWITCH & COVER EVAPORATOR UR70288	–	–	Ieškoti
8	BOLT EVAPORATOR TO DRAIN TRAY UD25755	–	–	Ieškoti
9	EXPANSION VALVE HVAC UR70281	–	–	Ieškoti
10	GROMMET THERMOSTAT PROBE EVAPORATOR UR70425	–	–	Ieškoti
11	HOSE CLIP 20/32MM SPC3256	–	–	Ieškoti
12	HOSE EVAPORATOR DRAIN UD25698	–	–	Ieškoti
13	LOOM EVAPORATOR THERMOSTAT UD25894	–	–	Ieškoti
14	NUT BULKHEAD UNION EVAPORATOR UR70295	–	–	Ieškoti
15	NUT PLAIN M5 UM20976Z	–	–	Ieškoti
16	P CLIP UD25586	–	–	Ieškoti
17	SCREW TEKS SPC2664	–	–	Ieškoti
18	SCREW THERMOSTAT TO EVAPORATOR UR70311	–	–	Ieškoti
19	SEAL BLOWER DUCT TO EVAPORATOR COVER UR71187	–	–	Ieškoti
20	SEAL EVAPORATOR BOX TO HEATER BOX UD20099	–	–	Ieškoti
21	SEAL EVAPORATOR COVER TO BULKHEAD UR70319	–	–	Ieškoti
22	SEAL EVAPORATOR DRAIN TRAY TO BODY UR70316	–	–	Ieškoti
23	WASHER BULKHEAD UNION EVAPORATOR UR70294	–	–	Ieškoti
24	WASHER EVAPORATOR TO DRAIN TRAY UD25756	–	–	Ieškoti
25	WASHER PLAIN 2BA X4452Z	–	–	Ieškoti
