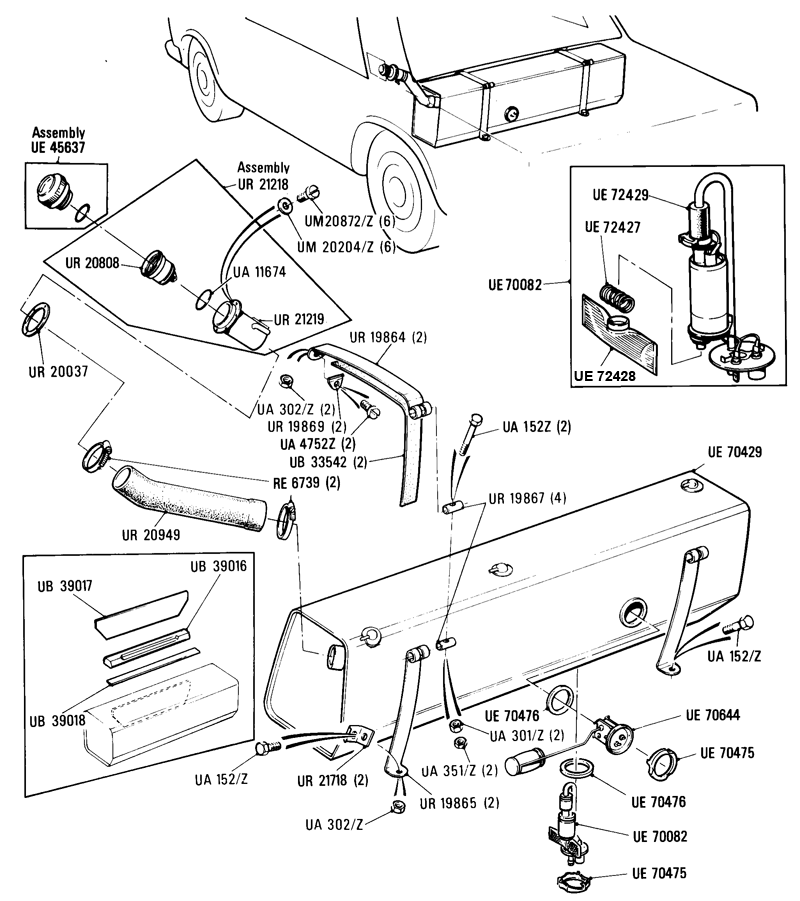

Bentley Mulsanne S cars other than n. america & australia – schema ir OEM kodai
Fuel & Emission Control Systems · 32 pozicijos · 0 skelbimų
Visos Bentley Mulsanne S dalys →Schema
Paspauskite schemą, kad padidintumėte, arba poziciją lentelėje.
Pozicijos ir kodai
| Nr. | Detalė / OEM kodas | Skelb. | Kaina nuo | |
|---|---|---|---|---|
| 1 | ASSY FUEL FILLER NECK UR21218 | – | – | Ieškoti |
| 2 | ASSY FUEL TANK UE70429 | – | – | Ieškoti |
| 3 | ASSY PRE PUMP FUEL TANK UE70082 | – | – | Ieškoti |
| 4 | ASSY TUBE FUEL FILLER NECK UR21219 | – | – | Ieškoti |
| 5 | BOLT.3125 UNF X .625 IN. LONG UA152Z | – | – | Ieškoti |
| 6 | BRACKET RESTRAINING STRAP FUEL TANK UR21718 | – | – | Ieškoti |
| 7 | COMPRIBAND STRIP 26 IN. UB33542 | – | – | Ieškoti |
| 8 | COMPRIBAND STRIP FUEL TANK MOUNTING (26.375 IN.) UB39018 | – | – | Ieškoti |
| 9 | FILLER HEAD FUEL FILLER NECK UR20808 | – | – | Ieškoti |
| 10 | FILTER SOCK PRE PUMP FUEL TANK UE72428 | – | – | Ieškoti |
| 11 | FOAM PANEL FUEL TANK MOUNTING UB39017 | – | – | Ieškoti |
| 12 | FUEL FILLER CAP UE45637 | – | – | Ieškoti |
| 13 | GASKET FUEL FILLER NECK UR20037 | – | – | Ieškoti |
| 14 | HOSE FUEL FILLER HEAD TO TANK UR20949 | – | – | Ieškoti |
| 15 | JUBILEE CLIP RE6739 | – | – | Ieškoti |
| 16 | LOCKING RING FUEL TANK SENDER UNIT UE70475 | – | – | Ieškoti |
| 17 | NUT PLAIN .250 UNF UA301Z | – | – | Ieškoti |
| 18 | NUT PLAIN .3125 UNF UA302Z | – | – | Ieškoti |
| 19 | NUT PLAIN LOCK .250 UNF UA351Z | – | – | Ieškoti |
| 20 | O RING 1.799 I.D. X .103 IN. UA11674 | – | – | Ieškoti |
| 21 | PRE PUMP FUEL TANK UE72429 | – | – | Ieškoti |
| 22 | RESTRAINING STRAP FUEL TANK REAR UR19864 | – | – | Ieškoti |
| 23 | RESTRAINING STRAP FUEL TANK UPPER UR19865 | – | – | Ieškoti |
| 24 | SCREW CHEESE HEAD M5 X 8MM LONG UM20872Z | – | – | Ieškoti |
| 25 | SCREW PAN HEAD .3125 UNF X .625 IN. LONG UA4752Z | – | – | Ieškoti |
| 26 | SEALING RING FUEL TANK SENDER UNIT UE70476 | – | – | Ieškoti |
| 27 | SENDER UNIT FUEL TANK UE70644 | – | – | Ieškoti |
| 28 | SPRING FILTER SOCK PRE PUMP FUEL TANK UE72427 | – | – | Ieškoti |
| 29 | TUBE INSERT FUEL TANK RESTRAINING STRAP UR19867 | – | – | Ieškoti |
| 30 | WASHER FUEL TANK RESTRAINING STRAP UR19869 | – | – | Ieškoti |
| 31 | WASHER PLAIN M5 UM20204Z | – | – | Ieškoti |
| 32 | WOOD BLOCK FUEL TANK MOUNTING UB39016 | – | – | Ieškoti |
