Bentley Mulsanne S hydraulic mineral oil system – schema ir OEM kodai
Hydraulics & Braking System · 23 pozicijos · 0 skelbimų

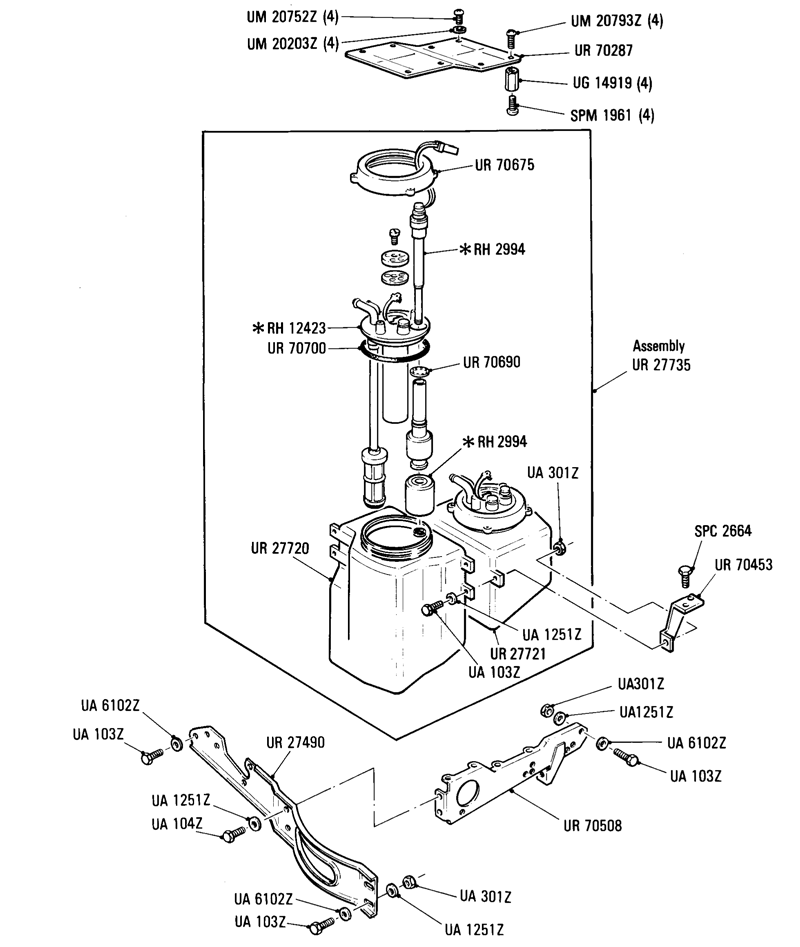

Visos Bentley Mulsanne S dalys →Schema
Paspauskite schemą, kad padidintumėte, arba poziciją lentelėje.
Pozicijos ir kodai
| Nr. | Detalė / OEM kodas | Skelb. | Kaina nuo | |
|---|---|---|---|---|
| 1 | ASSY HYDRAULIC RESERVOIR LARGE UR27720 | – | – | Ieškoti |
| 2 | ASSY HYDRAULIC RESERVOIR SMALL UR27721 | – | – | Ieškoti |
| 3 | ASSY HYDRAULIC RESERVOIRS UR27735 | – | – | Ieškoti |
| 4 | ASSY SUPPORT BRACKET HYDRAULIC RESERVOIRS UR27490 | – | – | Ieškoti |
| 5 | ASSY SUPPORT BRACKET HYDRAULIC RESERVOIRS UR70508 | – | – | Ieškoti |
| 6 | ASSY TOP HYDRAULIC RESERVOIR LARGE RH12423 | – | – | Ieškoti |
| 6 | ASSY TOP HYDRAULIC RESERVOIR SMALL RH12422 | – | – | Ieškoti |
| 7 | ASSY WARNING LABEL HYDRAULIC RESERVOIRS UR70287 | – | – | Ieškoti |
| 8 | BOLT .250 UNF X .625 IN. LONG UA103Z | – | – | Ieškoti |
| 9 | BOLT .250 UNF X .750 IN. LONG UA104Z | – | – | Ieškoti |
| 10 | KIT HYDRAULIC LEVEL INDICATOR RH2994 | – | – | Ieškoti |
| 10 | KIT HYDRAULIC LEVEL INDICATOR RH2993 | – | – | Ieškoti |
| 11 | NUT PLAIN .250 UNF UA301Z | – | – | Ieškoti |
| 12 | O RING 88.6MM I.D. X 2.62MM UR70700 | – | – | Ieškoti |
| 13 | RETAINING RING HYDRAULIC RESERVOIR TOP UR70675 | – | – | Ieškoti |
| 14 | RETAINING RING LEVEL INDICATOR HYDRAULIC RESERVOIR UR70690 | – | – | Ieškoti |
| 15 | SCREW LABEL HYDRAULIC RESERVOIR SPM1961 | – | – | Ieškoti |
| 16 | SCREW PAN HEAD M4 X 8MM LONG UM20793Z | – | – | Ieškoti |
| 17 | SCREW TEKS SPC2664 | – | – | Ieškoti |
| 18 | SETSCREW M4 X 8MM LONG UM20752Z | – | – | Ieškoti |
| 19 | STAND OFF PILLAR WARNING LABEL HYDRAULIC RESERVOIRS UG14919 | – | – | Ieškoti |
| 20 | SUPPORT BRACKET HYDRAULIC RESERVOIR UR70453 | – | – | Ieškoti |
| 21 | WASHER PLAIN .265 IN. I.D. UA1251Z | – | – | Ieškoti |
| 22 | WASHER PLAIN M4 UM20203Z | – | – | Ieškoti |
| 23 | WASHER THICK .255 IN. I.D. UA6102Z | – | – | Ieškoti |
