Bentley Mulsanne S squab & cushion – schema ir OEM kodai
Body · 11 pozicijų · 0 skelbimų

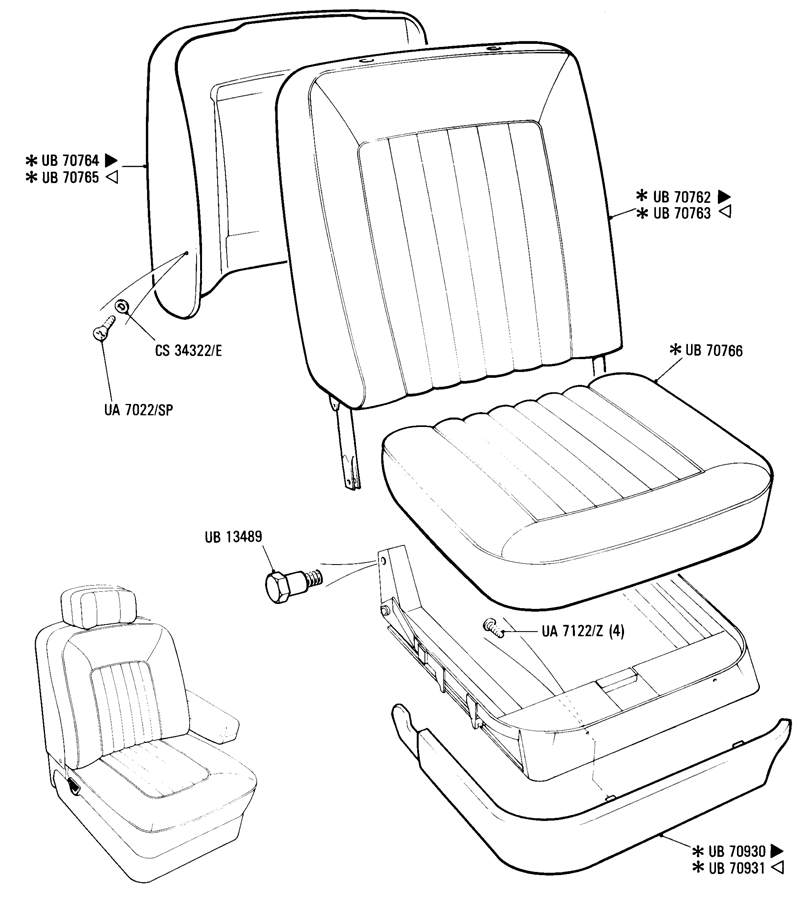

Visos Bentley Mulsanne S dalys →Schema
Paspauskite schemą, kad padidintumėte, arba poziciją lentelėje.
Pozicijos ir kodai
| Nr. | Detalė / OEM kodas | Skelb. | Kaina nuo | |
|---|---|---|---|---|
| 1 | ASSY CUSHION FRONT SEAT CLOTH UB70978 | – | – | Ieškoti |
| 1 | ASSY CUSHION FRONT SEAT HIDE UB70766 | – | – | Ieškoti |
| 2 | ASSY SQUAB FRONT SEAT CLOTH LH UB70979 | – | – | Ieškoti |
| 3 | ASSY SQUAB FRONT SEAT CLOTH RH UB70980 | – | – | Ieškoti |
| 2 | ASSY TRIM FRONT SEAT SQUAB LH UB70763 | – | – | Ieškoti |
| 3 | ASSY TRIM FRONT SEAT SQUAB RH UB70762 | – | – | Ieškoti |
| 4 | ASSY TRIM SQUAB BACK & POCKET FRONT SEAT LH UB70765 | – | – | Ieškoti |
| 4 | ASSY TRIM SQUAB BACK & POCKET FRONT SEAT LH UB70891 | – | – | Ieškoti |
| 5 | ASSY TRIM SQUAB BACK & POCKET FRONT SEAT RH UB70764 | – | – | Ieškoti |
| 5 | ASSY TRIM SQUAB BACK & POCKET FRONT SEAT RH UB70890 | – | – | Ieškoti |
| 4 | ASSY TRIM SQUAB BACK FRONT SEAT LH UB70449 | – | – | Ieškoti |
| 4 | ASSY TRIM SQUAB BACK FRONT SEAT LH UB70485 | – | – | Ieškoti |
| 4 | ASSY TRIM SQUAB BACK FRONT SEAT LH UB70917 | – | – | Ieškoti |
| 5 | ASSY TRIM SQUAB BACK FRONT SEAT RH UB70448 | – | – | Ieškoti |
| 5 | ASSY TRIM SQUAB BACK FRONT SEAT RH UB70916 | – | – | Ieškoti |
| 5 | ASSY TRIM SQUAB BACK FRONT SEAT RH UB70484 | – | – | Ieškoti |
| 6 | ASSY TRIM VALANCE FRONT SEAT LH UB70931 | – | – | Ieškoti |
| 6 | ASSY TRIM VALANCE FRONT SEAT LH UB70933 | – | – | Ieškoti |
| 7 | ASSY TRIM VALANCE FRONT SEAT RH UB70930 | – | – | Ieškoti |
| 7 | ASSY TRIM VALANCE FRONT SEAT RH UB70932 | – | – | Ieškoti |
| 8 | BOLT SHOULDERED SQUAB PIVOT UB13489 | – | – | Ieškoti |
| 6 | FIRE EXTINGUISHER UB70329 | – | – | Ieškoti |
| 7 | FIRE EXTINGUISHER UB70329 | – | – | Ieškoti |
| 9 | SCREW FLANGE HEAD NO.6 X .375 IN. LONG UA7122Z | – | – | Ieškoti |
| 10 | SCREW RAISED HEAD NO.6 X .500 IN. LONG UA7022SP | – | – | Ieškoti |
| 11 | WASHER CUP N0 6 CS34322E | – | – | Ieškoti |
