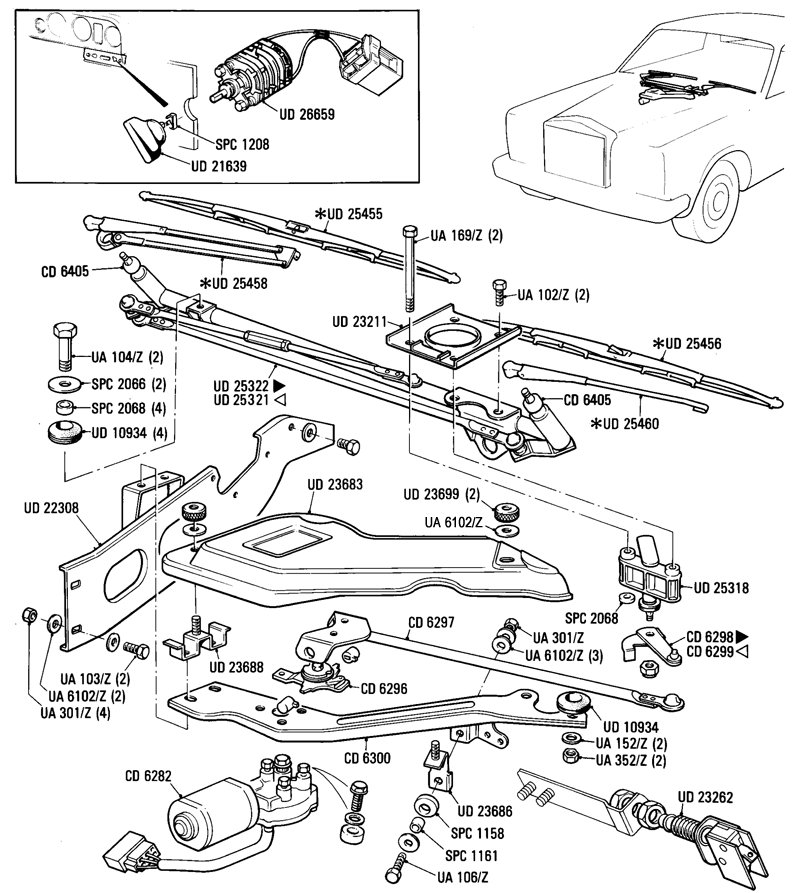

Bentley Mulsanne S windscreen wiper mechanism & switch – schema ir OEM kodai
Electrical System · 38 pozicijos · 0 skelbimų
Visos Bentley Mulsanne S dalys →Schema
Paspauskite schemą, kad padidintumėte, arba poziciją lentelėje.
Pozicijos ir kodai
| Nr. | Detalė / OEM kodas | Skelb. | Kaina nuo | |
|---|---|---|---|---|
| 1 | ANTI STREAK MECHANISM WIPERS CD6296 | – | – | Ieškoti |
| 2 | ASSY BRIDGE PLATE CROSS SHAFT BONNET CATCH UD22308 | – | – | Ieškoti |
| 3 | ASSY COVER & LABEL WINDSCREEN WIPER MECHANISM UD23683 | – | – | Ieškoti |
| 4 | ASSY MOUNTING BRACKET WINDSCREEN WIPER MECHANISM COVER UD23688 | – | – | Ieškoti |
| 5 | ASSY MOUNTING BRACKET WINDSCREEN WIPER MECHANISM COVER UD23686 | – | – | Ieškoti |
| 6 | ASSY SPINDLE & HOUSING WINDSCREEN WIPER MECHANISM UD25318 | – | – | Ieškoti |
| 7 | ASSY STEADY PLATE WINDSCREEN WIPER MECHANISM UD23211 | – | – | Ieškoti |
| 8 | ASSY WINDSCREEN WIPER MECHANISM LHD UD25311 | – | – | Ieškoti |
| 8 | ASSY WINDSCREEN WIPER MECHANISM RHD UD25312 | – | – | Ieškoti |
| 9 | ASSY WINDSCREEN WIPER SWITCH UD26659 | – | – | Ieškoti |
| 10 | BOLT .250 UNF X .500 IN. LONG UA102Z | – | – | Ieškoti |
| 11 | BOLT .250 UNF X .625 IN. LONG UA103Z | – | – | Ieškoti |
| 12 | BOLT .250 UNF X .750 IN. LONG UA104Z | – | – | Ieškoti |
| 13 | BOLT .250 UNF X 1.000 IN. LONG UA106Z | – | – | Ieškoti |
| 14 | BOLT .3125 UNF X 2.750 IN. LONG UA169Z | – | – | Ieškoti |
| 15 | BOLT.3125 UNF X .625 IN. LONG UA152Z | – | – | Ieškoti |
| 16 | BUSH SPC2068 | – | – | Ieškoti |
| 17 | DISTANCE PIECE SPC1161 | – | – | Ieškoti |
| 18 | GROMMET SPC1158 | – | – | Ieškoti |
| 19 | GROMMET UD10934 | – | – | Ieškoti |
| 20 | KNOB WINDSCREEN WIPER & HVAC SWITCHES UD21639 | – | – | Ieškoti |
| 21 | KNURLED NUT WIPER MECHANISM COVER UD23699 | – | – | Ieškoti |
| 3 | LABEL WIPER MECHANISM UD23685 | – | – | Ieškoti |
| 22 | LINK OSCILLATING LHD CD6299 | – | – | Ieškoti |
| 23 | LINK OSCILLATING RHD CD6298 | – | – | Ieškoti |
| 8 | MOTOR WIPER CD6282 | – | – | Ieškoti |
| 24 | MOUNTING STRIP CD6300 | – | – | Ieškoti |
| 25 | MOUNTING TUBE & SPINDLE WINDSCREEN WIPER MECHANISM LHD UD25321 | – | – | Ieškoti |
| 26 | MOUNTING TUBE & SPINDLE WINDSCREEN WIPER MECHANISM RHD UD25322 | – | – | Ieškoti |
| 27 | NUT PLAIN .250 UNF UA301Z | – | – | Ieškoti |
| 28 | NUT PLAIN LOCK .3125 UNF UA352Z | – | – | Ieškoti |
| 29 | PRIMARY LINK CD6297 | – | – | Ieškoti |
| 30 | RUBBER SEAL CD6405 | – | – | Ieškoti |
| 31 | SPRING CLIP SPC1208 | – | – | Ieškoti |
| 32 | SWITCH WINDSCREEN WIPER PARK UD23262 | – | – | Ieškoti |
| 33 | WASHER SPC2066 | – | – | Ieškoti |
| 34 | WASHER THICK .255 IN. I.D. UA6102Z | – | – | Ieškoti |
| 35 | WINDSCREEN WIPER ARM DRIVERS LHD UD25457 | – | – | Ieškoti |
| 35 | WINDSCREEN WIPER ARM DRIVERS RHD UD25458 | – | – | Ieškoti |
| 36 | WINDSCREEN WIPER ARM PASSENGER LHD UD25459 | – | – | Ieškoti |
| 36 | WINDSCREEN WIPER ARM PASSENGER RHD UD25460 | – | – | Ieškoti |
| 37 | WINDSCREEN WIPER BLADE DRIVERS UD25455 | – | – | Ieškoti |
| 38 | WINDSCREEN WIPER BLADE PASSENGER UD25456 | – | – | Ieškoti |
