Bentley Mulsanne S other than n. america (facia lower trim & centre console) – schema ir OEM kodai

Body · 33 pozicijos · 0 skelbimų

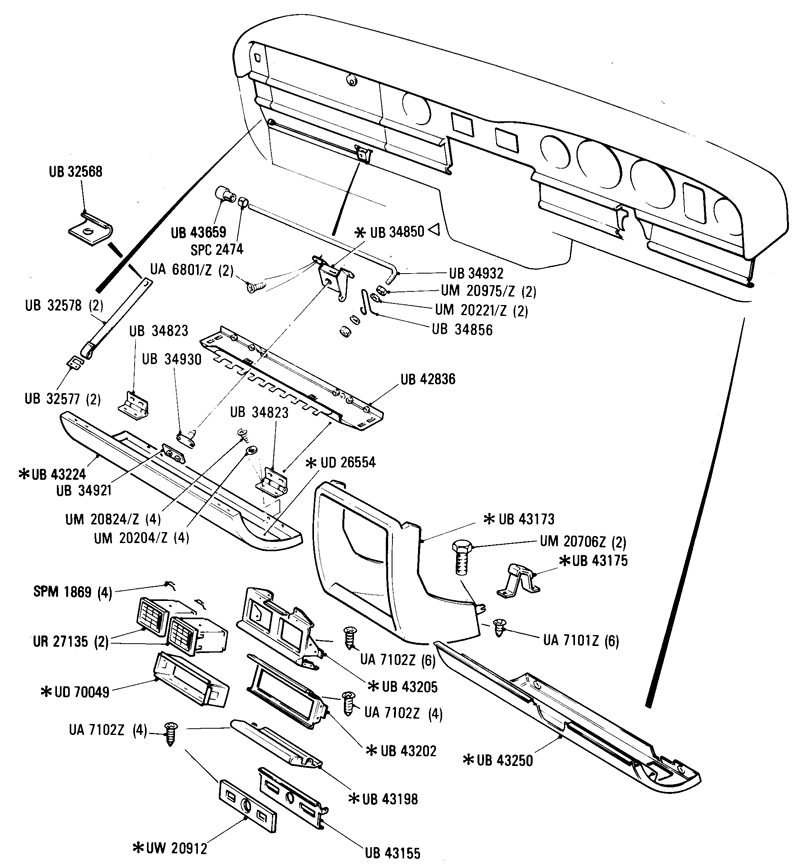

Schema

Paspauskite schemą, kad padidintumėte, arba poziciją lentelėje.

Pozicijos ir kodai

Nr.	Detalė / OEM kodas	Skelb.	Kaina nuo
1	ASSY CENTRE CONSOLE UB43173	–	–	Ieškoti
1	ASSY CENTRE CONSOLE UB43174	–	–	Ieškoti
2	ASSY FINISHER CENTRE CONSOLE UB43198	–	–	Ieškoti
2	ASSY FINISHER CENTRE CONSOLE UB43197	–	–	Ieškoti
3	ASSY FUSE COMPARTMENT DOOR LHD UB43223	–	–	Ieškoti
3	ASSY FUSE COMPARTMENT DOOR LHD UB43225	–	–	Ieškoti
3	ASSY FUSE COMPARTMENT DOOR RHD UB43222	–	–	Ieškoti
3	ASSY FUSE COMPARTMENT DOOR RHD UB43224	–	–	Ieškoti
4	ASSY HINGE FUSEBOARD DOOR UB34823	–	–	Ieškoti
5	ASSY OUTLET VENT FACIA CENTRE UR27135	–	–	Ieškoti
6	ASSY PANEL FACIA OUTLET DUCTS CENTRE CONSOLE UB43205	–	–	Ieškoti
6	ASSY PANEL FACIA OUTLET DUCTS CENTRE CONSOLE UB43204	–	–	Ieškoti
7	ASSY PANEL RADIO TAPE CENTRE CONSOLE UB43201	–	–	Ieškoti
7	ASSY PANEL RADIO TAPE CENTRE CONSOLE UB43202	–	–	Ieškoti
8	ASSY SUPPORT BRACKET RADIO TAPE UD70052	–	–	Ieškoti
9	CATCH FUSEBOARD DOOR LHD UB34851	–	–	Ieškoti
9	CATCH FUSEBOARD DOOR RHD UB34850	–	–	Ieškoti
10	CATCH SPIGOT FUSEBOARD DOOR UB34930	–	–	Ieškoti
11	CLAMP WEBBING LOWER TRIM UB32568	–	–	Ieškoti
12	END PIECE STRAP LOWER TRIM UB32577	–	–	Ieškoti
13	FACIA PANEL CIGAR LIGHTER CENTRE CONSOLE UW20912	–	–	Ieškoti
13	FACIA PANEL CIGAR LIGHTER CENTRE CONSOLE UW21319	–	–	Ieškoti
13	FACIA PANEL CIGAR LIGHTER CENTRE CONSOLE UW21321	–	–	Ieškoti
13	FACIA PANEL CIGAR LIGHTER CENTRE CONSOLE UW20911	–	–	Ieškoti
14	HINGE SUPPORT & RELAY BRACKET FUSEBOARD UB42836	–	–	Ieškoti
15	HOLDER PIONEER RADIO UD70049	–	–	Ieškoti
16	LABEL FUSEBOARD UD26554	–	–	Ieškoti
16	LABEL RELAY IDENTIFICATION LHD UD26551	–	–	Ieškoti
16	LABEL RELAY IDENTIFICATION RHD UD26553	–	–	Ieškoti
17	MOUNTING PANEL CENTRE CONSOLE UB43155	–	–	Ieškoti
18	NUT PLAIN M4 UM20975Z	–	–	Ieškoti
19	PANEL LOWER DASH TRIM DRIVERS LHD UB43251	–	–	Ieškoti
19	PANEL LOWER DASH TRIM DRIVERS LHD UB43249	–	–	Ieškoti
19	PANEL LOWER DASH TRIM DRIVERS RHD UB43250	–	–	Ieškoti
19	PANEL LOWER DASH TRIM DRIVERS RHD UB43248	–	–	Ieškoti
20	PUSH BUTTON FUSEBOARD DOOR UB43659	–	–	Ieškoti
21	PUSH ROD CATCH FUSEBOARD DOOR UB34932	–	–	Ieškoti
22	RETAINING CLIP SPM1869	–	–	Ieškoti
23	SCREW FLANGE HEAD NO.4 X .250 IN. LONG UA7101Z	–	–	Ieškoti
24	SCREW FLANGE HEAD NO.4 X .375 IN. LONG UA7102Z	–	–	Ieškoti
25	SCREW PAN HEAD 2BA X .375 IN. LONG UA6801Z	–	–	Ieškoti
26	SCREW PAN HEAD M5 X 12MM LONG UM20824Z	–	–	Ieškoti
27	SETSCREW M5 X 16MM LONG UM20706Z	–	–	Ieškoti
28	SPIRE CLIP SPC2474	–	–	Ieškoti
29	SPRING CATCH FUSEBOARD DOOR UB34856	–	–	Ieškoti
30	STRAP LOWER TRIM UB32578	–	–	Ieškoti
8	SUPPORT BRACKET RADIO TAPE CENTRE CONSOLE UB43175	–	–	Ieškoti
31	TAPPING PLATE FUSEBOARD DOOR UB34921	–	–	Ieškoti
32	WASHER PLAIN M4 UM20221Z	–	–	Ieškoti
33	WASHER PLAIN M5 UM20204Z	–	–	Ieškoti
