Bentley Mulsanne S instruments & warning light cluster – schema ir OEM kodai
Electrical System · 28 pozicijos · 0 skelbimų

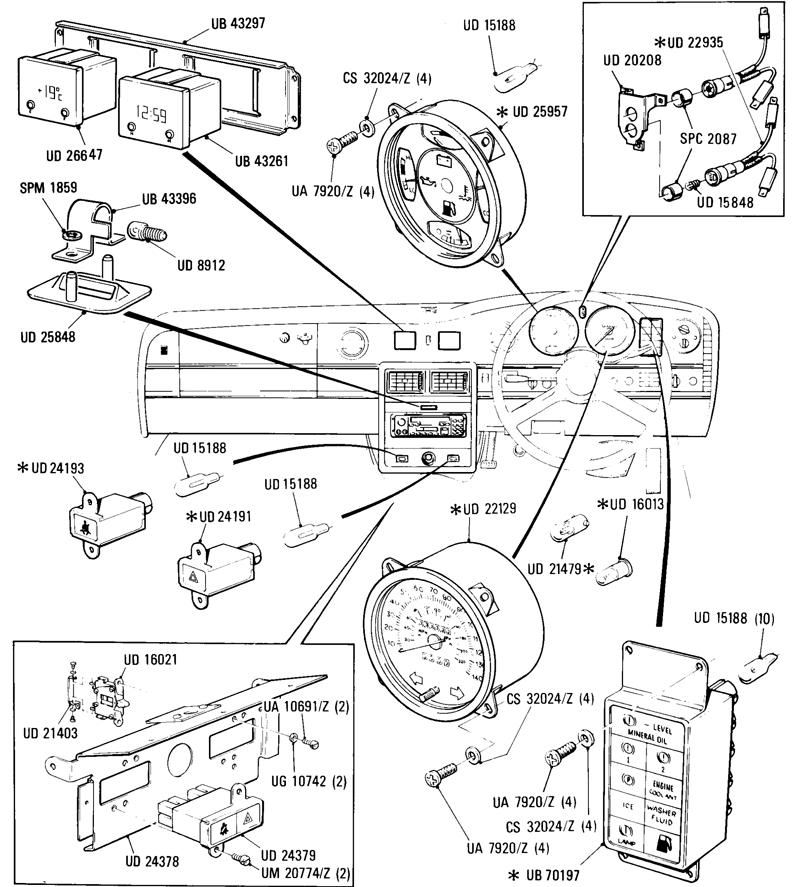

Visos Bentley Mulsanne S dalys →Schema
Paspauskite schemą, kad padidintumėte, arba poziciją lentelėje.
Pozicijos ir kodai
| Nr. | Detalė / OEM kodas | Skelb. | Kaina nuo | |
|---|---|---|---|---|
| 1 | AMMETER CD6196 | – | – | Ieškoti |
| 2 | ASSY MICROSWITCHES & OPERATING LEVER UD16021 | – | – | Ieškoti |
| 3 | ASSY MICROSWITCHES & OPERATING LEVER UD16021 | – | – | Ieškoti |
| 3 | ASSY MODULE HORN CHANGEOVER SWITCH UD24446 | – | – | Ieškoti |
| 4 | ASSY MOUNTING PANEL WARNING LIGHTS CENTRE CONSOLE UD24378 | – | – | Ieškoti |
| 5 | ASSY OUTSIDE TEMPERATURE GAUGE (DIGITAL) UD26647 | – | – | Ieškoti |
| 6 | ASSY WARNING LAMP INSTRUMENT BOARD (AMBER) UD23602 | – | – | Ieškoti |
| 6 | ASSY WARNING LAMP INSTRUMENT BOARD (BLUE) UD22935 | – | – | Ieškoti |
| 6 | ASSY WARNING LAMP INSTRUMENT BOARD (GREEN) UD23143 | – | – | Ieškoti |
| 6 | ASSY WARNING LAMP INSTRUMENT BOARD (RED) UD21625 | – | – | Ieškoti |
| 7 | ASSY WARNING LIGHT CLUSTER UB70197 | – | – | Ieškoti |
| 7 | ASSY WARNING LIGHT CLUSTER UB70195 | – | – | Ieškoti |
| 7 | ASSY WARNING LIGHT CLUSTER UB70196 | – | – | Ieškoti |
| 3 | ASSY WARNING LIGHT HAZARD WARNING UD24191 | – | – | Ieškoti |
| 8 | ASSY WARNING LIGHT MODULE UD24379 | – | – | Ieškoti |
| 9 | ASSY WARNING LIGHT MODULE UD24379 | – | – | Ieškoti |
| 8 | ASSY WARNING LIGHT SEATBELT UD24193 | – | – | Ieškoti |
| 10 | BRACKET CLOCK & TEMPERATURE GAUGE UB43297 | – | – | Ieškoti |
| 11 | BRACKET LAMP CENTRE CONSOLE UB43396 | – | – | Ieškoti |
| 12 | BULB 12V 1.5W LES UD8912 | – | – | Ieškoti |
| 13 | BULB 12V 2W BAYONET UD16013 | – | – | Ieškoti |
| 14 | BULB 12V 2W MCC UD21479 | – | – | Ieškoti |
| 15 | BULB 12V 3W CAPLESS UD15188 | – | – | Ieškoti |
| 16 | BULB 14V .56W LES UD15848 | – | – | Ieškoti |
| 17 | BUS BAR MICROSWITCH UD21403 | – | – | Ieškoti |
| 18 | CLOCK DIGITAL UB43261 | – | – | Ieškoti |
| 1 | COOLANT TEMPERATURE GAUGE RH9791 | – | – | Ieškoti |
| 1 | FUEL GAUGE CD6194 | – | – | Ieškoti |
| 1 | INSTRUMENT 4 IN 1 UD25957 | – | – | Ieškoti |
| 19 | LIGHT FILTER ASHTRAY LAMP CENTRE CONSOLE UD25848 | – | – | Ieškoti |
| 20 | MOUNTING BRACKET WARNING LAMPS INSTRUMENT PANEL UD20208 | – | – | Ieškoti |
| 1 | OIL PRESSURE GAUGE CD6195 | – | – | Ieškoti |
| 21 | SCREW CHEESE HEAD 6BA X .1875 IN. LONG UA10691Z | – | – | Ieškoti |
| 22 | SCREW PAN HEAD M3 X 10MM LONG UM20774Z | – | – | Ieškoti |
| 23 | SCREW PAN HEAD NO.8 X .375 IN. LONG UA7920Z | – | – | Ieškoti |
| 24 | SLEEVE SPC2087 | – | – | Ieškoti |
| 25 | SPEEDOMETER 140MPH/220KPH UD22129 | – | – | Ieškoti |
| 25 | SPEEDOMETER 220KPH UD21233 | – | – | Ieškoti |
| 25 | SPEEDOMETER 220KPH UD21285 | – | – | Ieškoti |
| 25 | SPEEDOMETER 220KPH/140MPH UD23051 | – | – | Ieškoti |
| 25 | SPEEDOMETER 85MPH/140KPH UD22892 | – | – | Ieškoti |
| 26 | STARLOCK WASHER 2.00MM NOMINAL SPM1859 | – | – | Ieškoti |
| 1 | TEMPERATURE GAUGE CD6193 | – | – | Ieškoti |
| 1 | VOLTMETER CD6230 | – | – | Ieškoti |
| 27 | WASHER PLAIN (NO.8) .1875 IN. I.D. CS32024Z | – | – | Ieškoti |
| 28 | WASHER SHAKEPROOF 6BA UG10742 | – | – | Ieškoti |
