Bentley Mulsanne S interior trim & waistrail finisher (front door) – schema ir OEM kodai
Body · 23 pozicijos · 0 skelbimų

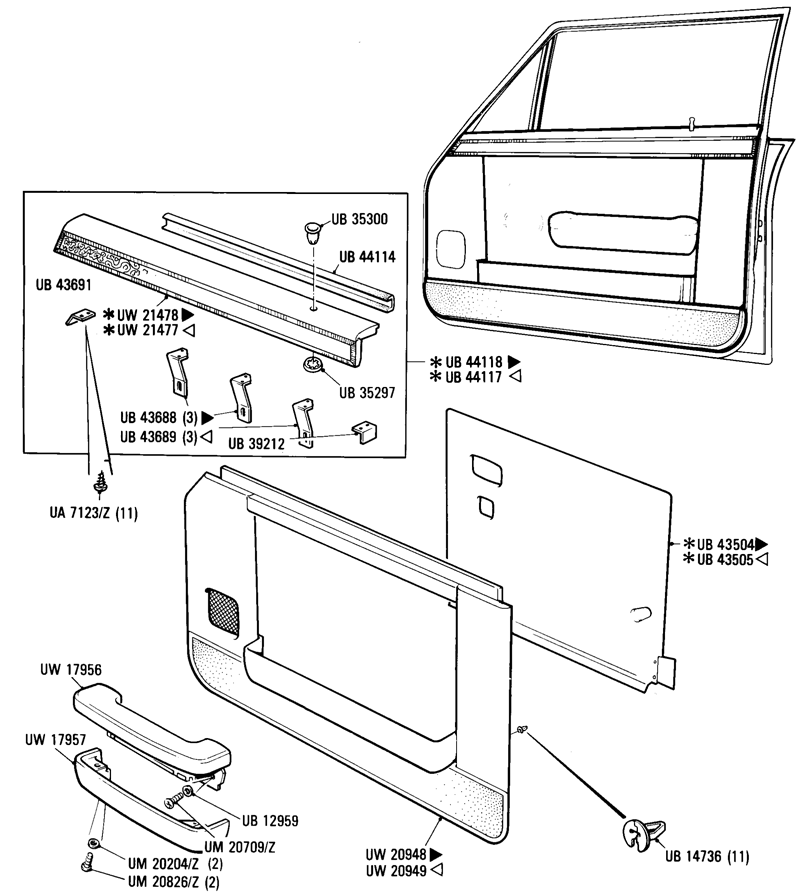

Visos Bentley Mulsanne S dalys →Schema
Paspauskite schemą, kad padidintumėte, arba poziciją lentelėje.
Pozicijos ir kodai
| Nr. | Detalė / OEM kodas | Skelb. | Kaina nuo | |
|---|---|---|---|---|
| 1 | ASSY DOOR INNER TRIM LH LHD UB43503 | – | – | Ieškoti |
| 1 | ASSY DOOR INNER TRIM LH RHD UB43505 | – | – | Ieškoti |
| 2 | ASSY DOOR INNER TRIM RH LHD UB43502 | – | – | Ieškoti |
| 2 | ASSY DOOR INNER TRIM RH RHD UB43504 | – | – | Ieškoti |
| 3 | ASSY FRONT DOOR ARMREST LOWER UW17957 | – | – | Ieškoti |
| 4 | ASSY FRONT DOOR ARMREST UPPER UW17956 | – | – | Ieškoti |
| 5 | ASSY OUTER TRIM PANEL FRONT DOOR LH UW20949 | – | – | Ieškoti |
| 6 | ASSY OUTER TRIM PANEL FRONT DOOR RH UW20948 | – | – | Ieškoti |
| 7 | ASSY WAISTRAIL FRONT DOOR LH UB44147 | – | – | Ieškoti |
| 8 | ASSY WAISTRAIL FRONT DOOR RH UB44146 | – | – | Ieškoti |
| 7 | ASSY WAISTRAIL FRONT LH UB71721 | – | – | Ieškoti |
| 8 | ASSY WAISTRAIL FRONT RH UB71722 | – | – | Ieškoti |
| 9 | BOLT M5 X 30MM LONG UM20709Z | – | – | Ieškoti |
| 10 | BRACKET ATTACHMENT WAISTRAIL UB39212 | – | – | Ieškoti |
| 11 | BRACKET FRONT DOOR WAISTRAIL CENTRE LH UB43688 | – | – | Ieškoti |
| 12 | BRACKET FRONT DOOR WAISTRAIL CENTRE RH UB43689 | – | – | Ieškoti |
| 13 | BRACKET FRONT DOOR WAISTRAIL FRONT UB43691 | – | – | Ieškoti |
| 14 | BUSH SILL BUTTON UB35300 | – | – | Ieškoti |
| 15 | SCREW FLANGE HEAD NO.6 X .500 IN. LONG UA7123Z | – | – | Ieškoti |
| 16 | SCREW PAN HEAD M5 X 20MM LONG UM20826Z | – | – | Ieškoti |
| 17 | SEAL WAIST INNER FRONT DOOR UB44114 | – | – | Ieškoti |
| 18 | STARLOCK WASHER .500 IN. NOMINAL UB35297 | – | – | Ieškoti |
| 19 | TRIM CLIP UB14736 | – | – | Ieškoti |
| 20 | WAISTRAIL FRONT DOOR LH UW21477 | – | – | Ieškoti |
| 21 | WAISTRAIL FRONT DOOR RH UW21478 | – | – | Ieškoti |
| 7 | WAISTRAIL FRONT LH UB44117 | – | – | Ieškoti |
| 20 | WAISTRAIL FRONT LH UB71568 | – | – | Ieškoti |
| 8 | WAISTRAIL FRONT RH UB44118 | – | – | Ieškoti |
| 21 | WAISTRAIL FRONT RH UB71566 | – | – | Ieškoti |
| 22 | WASHER UB12959 | – | – | Ieškoti |
| 23 | WASHER PLAIN M5 UM20204Z | – | – | Ieškoti |
