Bentley Mulsanne S usa only – schema ir OEM kodai
Body · 38 pozicijos · 0 skelbimų

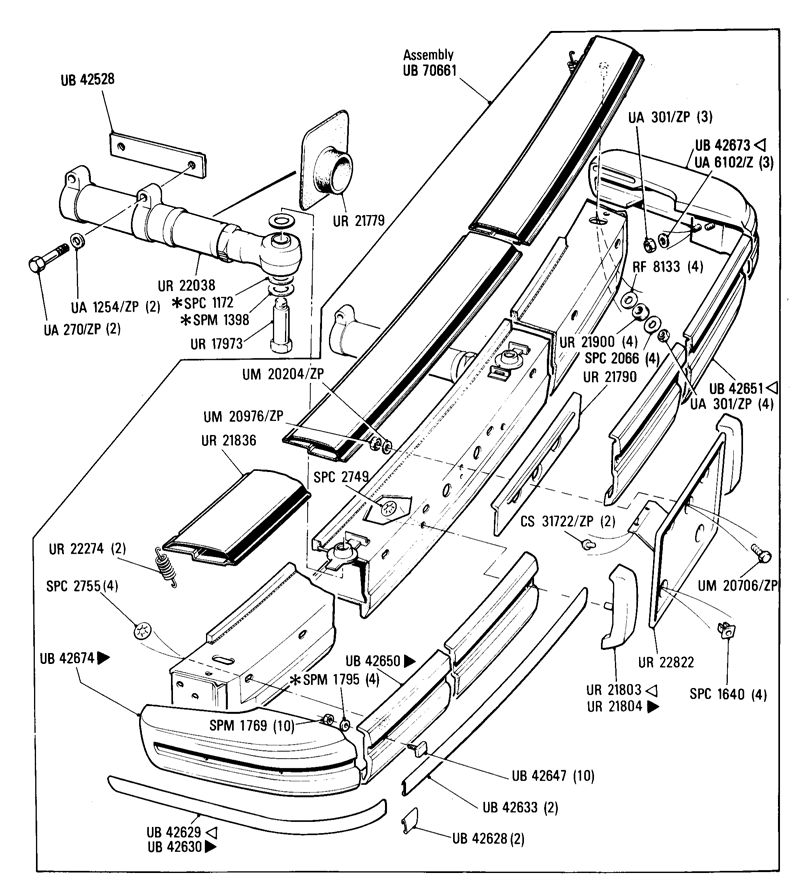

Visos Bentley Mulsanne S dalys →Schema
Paspauskite schemą, kad padidintumėte, arba poziciją lentelėje.
Pozicijos ir kodai
| Nr. | Detalė / OEM kodas | Skelb. | Kaina nuo | |
|---|---|---|---|---|
| 1 | ASSY BUMPER FRONT UB70661 | – | – | Ieškoti |
| 2 | ASSY MOULDING FRONT BUMPER CENTRE LH UB42651 | – | – | Ieškoti |
| 3 | ASSY MOULDING FRONT BUMPER CENTRE RH UB42650 | – | – | Ieškoti |
| 4 | ASSY NUMBER PLATE UR22822 | – | – | Ieškoti |
| 5 | ASSY TOP FINISHER FRONT BUMPER UR21836 | – | – | Ieškoti |
| 5 | BADGE BAR BENTLEY UB41931 | – | – | Ieškoti |
| 5 | BADGE BAR ROLLS-ROYCE UB14320 | – | – | Ieškoti |
| 6 | BOLT .4375 UNF X 3.000 IN. LONG UA270ZP | – | – | Ieškoti |
| 7 | BOLT BUMPER BEAM UR17973 | – | – | Ieškoti |
| 8 | ENERGY ABSORBTION UNIT BUMPER UR22038 | – | – | Ieškoti |
| 9 | FINISHER FRONT BUMPER CENTRE UB42633 | – | – | Ieškoti |
| 10 | FINISHER FRONT BUMPER SIDE LH UB42629 | – | – | Ieškoti |
| 11 | FINISHER FRONT BUMPER SIDE RH UB42630 | – | – | Ieškoti |
| 12 | JOINT PIECE BUMPER FINISHER UB42628 | – | – | Ieškoti |
| 13 | MOULDING BUMPER CENTRE (NUMBER PLATE) UR21790 | – | – | Ieškoti |
| 14 | MOULDING FRONT BUMPER SIDE LH UB42673 | – | – | Ieškoti |
| 15 | MOULDING FRONT BUMPER SIDE RH UB42674 | – | – | Ieškoti |
| 16 | NUT LOKUT SPC1640 | – | – | Ieškoti |
| 17 | NUT PLAIN .250 UNF UA301ZP | – | – | Ieškoti |
| 18 | NUT PLAIN M5 UM20976ZP | – | – | Ieškoti |
| 19 | NUT RETAINING SPM1769 | – | – | Ieškoti |
| 20 | OVER RIDER FRONT BUMPER LH UR21803 | – | – | Ieškoti |
| 21 | OVER RIDER FRONT BUMPER RH UR21804 | – | – | Ieškoti |
| 22 | RETAINING SPRING BUMPER TOP FINISHER UR22274 | – | – | Ieškoti |
| 23 | RUBBER WASHER UR21900 | – | – | Ieškoti |
| 24 | SCREW BINDING HEAD NO.10 X .375 IN. LONG CS31722ZP | – | – | Ieškoti |
| 25 | SEAL BUMPER MOUNTING TO BODY UR21779 | – | – | Ieškoti |
| 26 | SETSCREW M5 X 16MM LONG UM20706ZP | – | – | Ieškoti |
| 27 | STARLOCK WASHER .375 IN. SPC2749 | – | – | Ieškoti |
| 28 | T STUD BUMPER FINISHER UB42647 | – | – | Ieškoti |
| 29 | TAPPING PLATE BUMPER MOUNTING UB42528 | – | – | Ieškoti |
| 30 | WASHER SPC2066 | – | – | Ieškoti |
| 31 | WASHER RF8133 | – | – | Ieškoti |
| 32 | WASHER SPM1795 | – | – | Ieškoti |
| 32 | WASHER SPM1796 | – | – | Ieškoti |
| 33 | WASHER SPM1398 | – | – | Ieškoti |
| 34 | WASHER SPC1172 | – | – | Ieškoti |
| 35 | WASHER PLAIN .453 IN. I.D. UA1254ZP | – | – | Ieškoti |
| 36 | WASHER PLAIN M5 UM20204ZP | – | – | Ieškoti |
| 37 | WASHER STARLOCK .250 IN. SPC2755 | – | – | Ieškoti |
| 38 | WASHER THICK .255 IN. I.D. UA6102Z | – | – | Ieškoti |
