Bentley Mulsanne S mechanism – schema ir OEM kodai

Body · 41 pozicija · 0 skelbimų

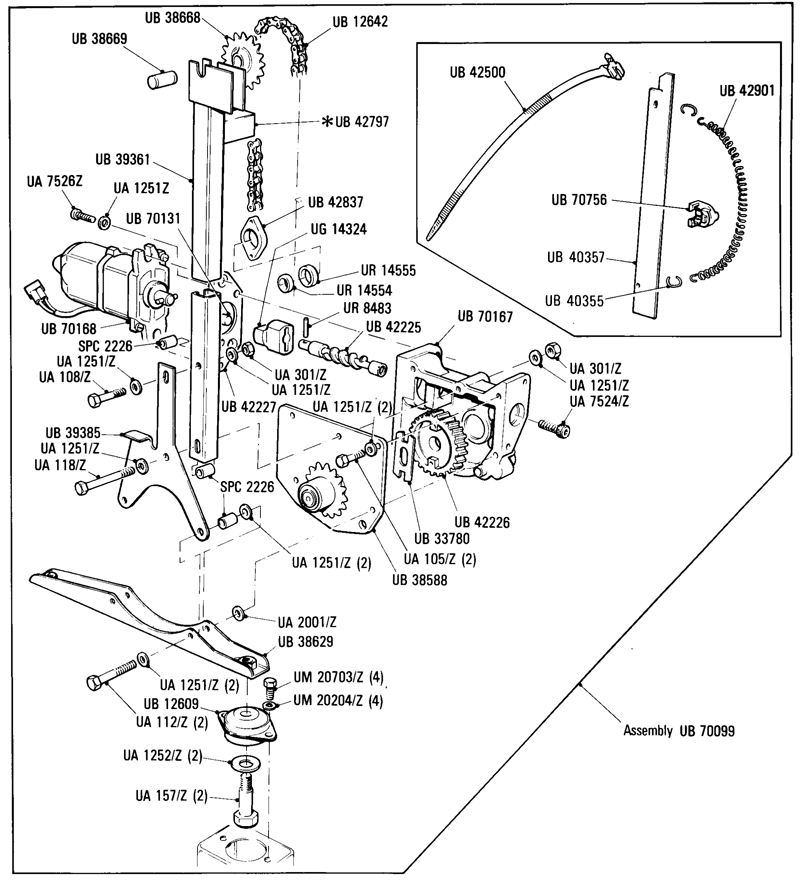

Schema

Paspauskite schemą, kad padidintumėte, arba poziciją lentelėje.

Pozicijos ir kodai

Nr.	Detalė / OEM kodas	Skelb.	Kaina nuo
1	ASSY CHANNEL ELECTRIC WINDOW LIFT UB39361	–	–	Ieškoti
2	ASSY ELECTRIC WINDOW LIFT UB70099	–	–	Ieškoti
3	ASSY GEARBOX ELECTRIC WINDOW LIFT UB70167	–	–	Ieškoti
4	ASSY MOUNTING BRACKET WINDOW LIFT LOWER UB38629	–	–	Ieškoti
5	ASSY SHAFT & SPROCKET WINDOW LIFT UB38588	–	–	Ieškoti
6	BEARING PIN UPPER SPROCKET WINDOW LIFT UB38669	–	–	Ieškoti
7	BOLT .250 UNF X .875 IN. LONG UA105Z	–	–	Ieškoti
8	BOLT .250 UNF X 1.250 IN. LONG UA108Z	–	–	Ieškoti
9	BOLT .3125 UNF X 1.250 IN. LONG UA157Z	–	–	Ieškoti
10	BOLT.250 UNF X 1.750 IN. LONG UA112Z	–	–	Ieškoti
11	BOLT.250 UNF X 2.500 IN. LONG UA118Z	–	–	Ieškoti
12	BUSH SPHERICAL BEARING UR14555	–	–	Ieškoti
13	CAPSCREW SOCKET HEAD .250 UNF X .625 IN. LONG UA7524Z	–	–	Ieškoti
14	CAPSCREW SOCKET HEAD .250 UNF X .875 IN. LONG UA7526Z	–	–	Ieškoti
15	CHAIN ROLLER COMPLETE UB12642	–	–	Ieškoti
16	CHANNEL SUPPORT BRACKET WINDOW LIFT UB39385	–	–	Ieškoti
17	COUPLING MOTOR TRANSMISSION ACTUATOR UG14324	–	–	Ieškoti
18	GEAR SPROCKET UPPER WINDOW LIFT UB38668	–	–	Ieškoti
19	GEAR WHEEL DRIVEN ELECTRIC WINDOW LIFT UB42226	–	–	Ieškoti
20	GUIDE ELECTRIC WINDOW LIFT UB70756	–	–	Ieškoti
21	HOOK CABLE DROP GLASS GUIDANCE UB40355	–	–	Ieškoti
22	LIMIT PAD ELECTRIC WINDOW LIFT UB70131	–	–	Ieškoti
23	MOTOR ELECTRIC WINDOW LIFT UB70168	–	–	Ieškoti
24	MOUNTING BUSH ELECTRIC WINDOW LIFT UB12609	–	–	Ieškoti
25	NUT PLAIN .250 UNF UA301Z	–	–	Ieškoti
26	PICK UP PLATE ELECTRIC WINDOW LIFT UB42837	–	–	Ieškoti
27	PLATE ADAPTOR ELECTRIC WINDOW LIFT UB42227	–	–	Ieškoti
28	PLATE DRIVING ELECTRIC WINDOW LIFT UB33780	–	–	Ieškoti
29	PLATE GUIDE ELECTRIC WINDOW LIFT UB40357	–	–	Ieškoti
30	RETAINING STRAP UB42500	–	–	Ieškoti
31	ROLL PIN .125 IN. X .687 IN. LONG UR8483	–	–	Ieškoti
32	SETSCREW M5 X 10MM LONG UM20703Z	–	–	Ieškoti
33	SPACER CHANNEL WINDOW LIFT SPC2226	–	–	Ieškoti
34	SPHERICAL BEARING UR14554	–	–	Ieškoti
35	SPRING TENSION ELECTRIC WINDOW LIFT UB42901	–	–	Ieškoti
36	UPPER MOUNTING BLOCK (RUBBER) ELECTRIC WINDOW LIFT UB42797	–	–	Ieškoti
36	UPPER MOUNTING BLOCK (RUBBER) ELECTRIC WINDOW LIFT UB38982	–	–	Ieškoti
37	WASHER PLAIN .265 IN. I.D. UA1251Z	–	–	Ieškoti
38	WASHER PLAIN .328 IN. I.D. UA1252Z	–	–	Ieškoti
39	WASHER PLAIN M5 UM20204Z	–	–	Ieškoti
40	WASHER PLAIN THIN .265 IN. I.D. UA2001Z	–	–	Ieškoti
41	WORM ELECTRIC WINDOW LIFT UB42225	–	–	Ieškoti
