Bentley Mulsanne S throttle control engine compartment – schema ir OEM kodai

Fuel & Emission Control Systems · 37 pozicijos · 0 skelbimų

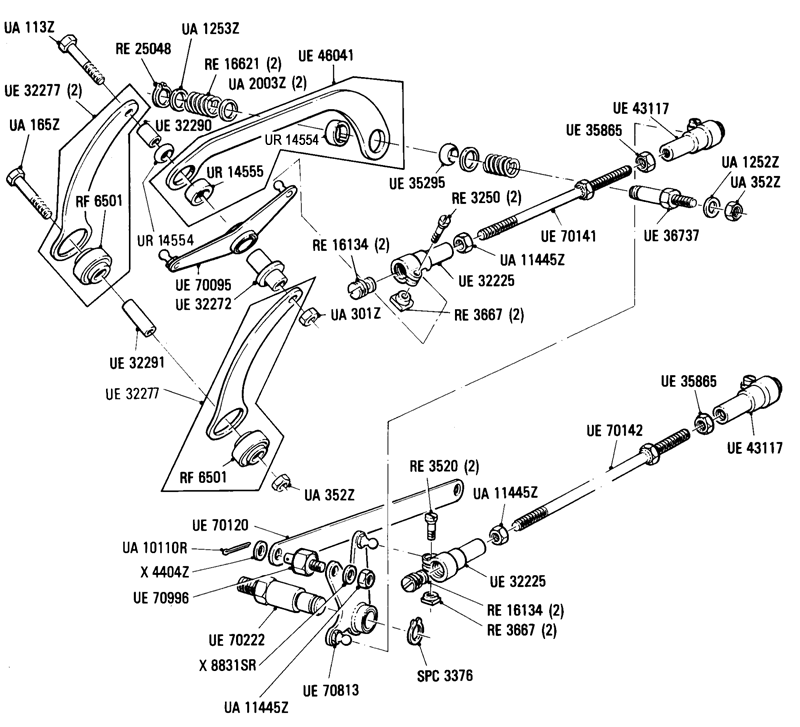

Schema

Paspauskite schemą, kad padidintumėte, arba poziciją lentelėje.

Pozicijos ir kodai

Nr.	Detalė / OEM kodas	Skelb.	Kaina nuo
1	ADJUSTING SCREW BALL JOINT RE16134	–	–	Ieškoti
2	ASSY BELLCRANK LEVER THROTTLE LINKAGE UE70813	–	–	Ieškoti
3	ASSY COMPENSATOR LINK THROTTLE LINKAGE UE32277	–	–	Ieškoti
4	ASSY FULCRUM LEVER THROTTLE LINKAGE UE70095	–	–	Ieškoti
4	ASSY FULCRUM LEVER THROTTLE LINKAGE UE70112	–	–	Ieškoti
5	ASSY TIE ROD ISOLATOR THROTTLE LINKAGE UE46041	–	–	Ieškoti
6	BODY BALL JOINT THROTTLE LINKAGE UE43117	–	–	Ieškoti
7	BODY BALL JOINT THROTTLE LINKAGE UE32225	–	–	Ieškoti
8	BOLT .3125 UNF X 2.250 IN. LONG UA165Z	–	–	Ieškoti
9	BOLT CSK HEAD 5BA BALL JOINT RE3520	–	–	Ieškoti
10	BOLT.250 UNF X 1.875 IN. LONG UA113Z	–	–	Ieškoti
11	BUSH SPHERICAL BEARING UR14555	–	–	Ieškoti
12	CIRCLIP RE25048	–	–	Ieškoti
13	CIRCLIP EXTERNAL .375 IN. NOMINAL SPC3376	–	–	Ieškoti
14	CONTROL ROD THROTTLE LINKAGE UE70141	–	–	Ieškoti
15	CONTROL ROD THROTTLE LINKAGE UE70142	–	–	Ieškoti
16	DISTANCE PIECE COMPENSATOR LINK THROTTLE LINKAGE UE32290	–	–	Ieškoti
17	DISTANCE PIECE COMPENSATOR LINK THROTTLE LINKAGE UE32291	–	–	Ieškoti
18	ECCENTRIC ADJUSTER THROTTLE LINKAGE UE70996	–	–	Ieškoti
19	FULCRUM PIN THROTTLE LINKAGE UE32272	–	–	Ieškoti
20	FULCRUM PIN THROTTLE LINKAGE UE70222	–	–	Ieškoti
21	ISOLATING BUSH GEAR CHANGE RF6501	–	–	Ieškoti
22	LOCK NUT 2BA LEFT HAND UE35865	–	–	Ieškoti
23	NUT 5BA BALL JOINT RE3667	–	–	Ieškoti
24	NUT PLAIN .250 UNF UA301Z	–	–	Ieškoti
25	NUT PLAIN LOCK .3125 UNF UA352Z	–	–	Ieškoti
26	NUT PLAIN LOCK 2BA UA11445Z	–	–	Ieškoti
27	PIVOT PIN TIE ROD THROTTLE LINKAGE UE36737	–	–	Ieškoti
28	SLOTTED LINK BELLCRANK TO SPEED CONTROL ACTUATOR UE70120	–	–	Ieškoti
29	SPHERICAL BEARING UR14554	–	–	Ieškoti
30	SPHERICAL BEARING THROTTLE LINKAGE UE35295	–	–	Ieškoti
31	SPLIT PIN .062 IN. X .375 IN. LONG UA10110R	–	–	Ieškoti
32	SPRING RE16621	–	–	Ieškoti
33	WASHER PLAIN .328 IN. I.D. UA1252Z	–	–	Ieškoti
34	WASHER PLAIN .390 IN. I.D. UA1253Z	–	–	Ieškoti
35	WASHER PLAIN 2BA X4404Z	–	–	Ieškoti
36	WASHER PLAIN 2BA X8831SR	–	–	Ieškoti
37	WASHER PLAIN THIN .390 IN. I.D. UA2003Z	–	–	Ieškoti
