Bentley Mulsanne S induction manifold – schema ir OEM kodai
Fuel & Emission Control Systems · 34 pozicijos · 0 skelbimų

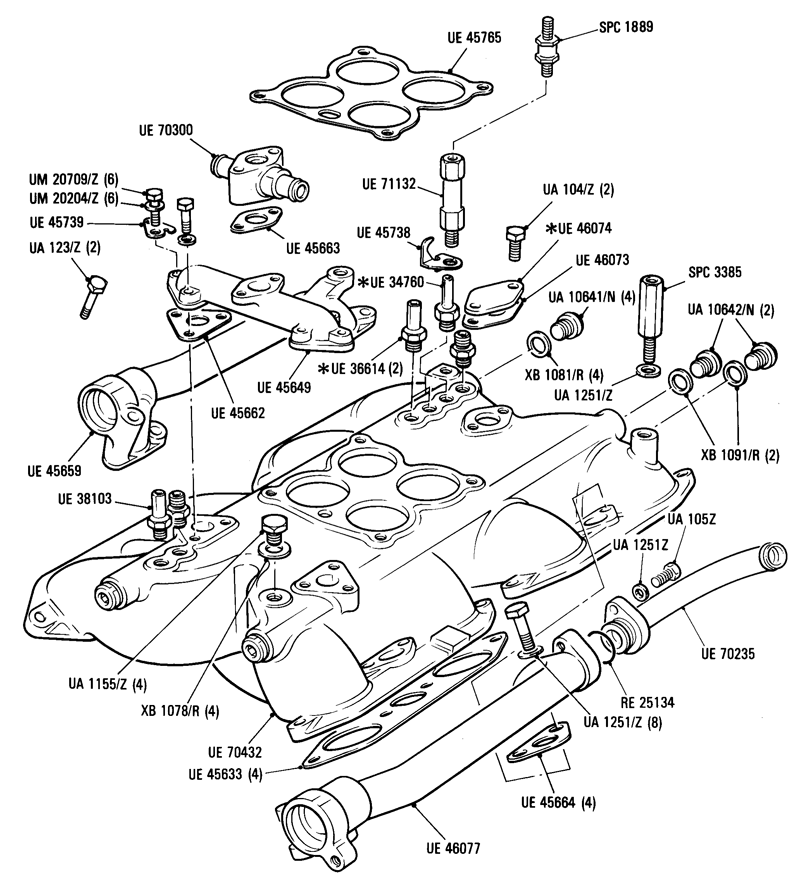

Visos Bentley Mulsanne S dalys →Schema
Paspauskite schemą, kad padidintumėte, arba poziciją lentelėje.
Pozicijos ir kodai
| Nr. | Detalė / OEM kodas | Skelb. | Kaina nuo | |
|---|---|---|---|---|
| 1 | ADAPTOR VACUUM CONNECTION UE38103 | – | – | Ieškoti |
| 2 | ADAPTOR VACUUM CONNECTION UE36614 | – | – | Ieškoti |
| 3 | ADAPTOR VACUUM CONNECTION UE34760 | – | – | Ieškoti |
| 4 | AIR GALLERY COLD START INJECTOR TO INLET MANIFOLD UE45649 | – | – | Ieškoti |
| 5 | ASSY HOUSING & PIPES COLD START INJECTOR UE70300 | – | – | Ieškoti |
| 6 | ASSY PIPE HEATER FEED UE70235 | – | – | Ieškoti |
| 7 | BOLT .250 UNF X .750 IN. LONG UA104Z | – | – | Ieškoti |
| 8 | BOLT .250 UNF X .875 IN. LONG UA105Z | – | – | Ieškoti |
| 9 | BOLT M5 X 30MM LONG UM20709Z | – | – | Ieškoti |
| 10 | BOLT.250 UNF X 3.250 IN. LONG UA123Z | – | – | Ieškoti |
| 11 | BRACKET SPRING ANCHOR PRIMARY THROTTLE UE45738 | – | – | Ieškoti |
| 12 | BRACKET SPRING ANCHOR SECONDARY THROTTLE UE45739 | – | – | Ieškoti |
| 13 | COOLANT GALLERY A BANK UE45659 | – | – | Ieškoti |
| 14 | CORE PLUG .625 UNF UA10641N | – | – | Ieškoti |
| 15 | CORE PLUG .750 UNF UA10642N | – | – | Ieškoti |
| 16 | COVER EXHAUST GAS RECIRCULATION INLET INLET MANIFOLD UE46074 | – | – | Ieškoti |
| 17 | GASKET EXHAUST GAS RECIRCULATION ELBOW TO INLET MANIFOLD UE46073 | – | – | Ieškoti |
| 18 | GASKET THROTTLE BODY TO INLET MANIFOLD UE45765 | – | – | Ieškoti |
| 19 | INLET MANIFOLD UE70432 | – | – | Ieškoti |
| 20 | JOINT COLD START INJECTOR AIR GALLERY TO INLET MANIFOLD UE45662 | – | – | Ieškoti |
| 21 | JOINT COLD START INJECTOR HOUSING TO AIR GALLERY UE45663 | – | – | Ieškoti |
| 22 | JOINT COOLANT GALLERY OUTLET TO INLET MANIFOLD UE45664 | – | – | Ieškoti |
| 23 | JOINT INLET MANIFOLD TO CYLINDER HEAD UE45633 | – | – | Ieškoti |
| 24 | MOUNT METALASTIC SPC1889 | – | – | Ieškoti |
| 25 | MOUNTING PILLAR WARM UP REGULATOR UE71132 | – | – | Ieškoti |
| 26 | O RING ADAPTOR RE25134 | – | – | Ieškoti |
| 27 | PILLAR MOUNTING AIR METER HOUSING SPC3385 | – | – | Ieškoti |
| 28 | PIPE COOLANT OUTLET CYLINDER HEAD B BANK TO THERMOSTAT HOUSING UE46077 | – | – | Ieškoti |
| 29 | PLUG HEX HEAD .375 UNF UA1155Z | – | – | Ieškoti |
| 30 | WASHER JOINT XB1091R | – | – | Ieškoti |
| 31 | WASHER JOINT XB1081R | – | – | Ieškoti |
| 32 | WASHER JOINT XB1078R | – | – | Ieškoti |
| 33 | WASHER PLAIN .265 IN. I.D. UA1251Z | – | – | Ieškoti |
| 34 | WASHER PLAIN M5 UM20204Z | – | – | Ieškoti |
