Bentley Mulsanne S oil filler breather & fittings – schema ir OEM kodai
Engine · 29 pozicijos · 0 skelbimų

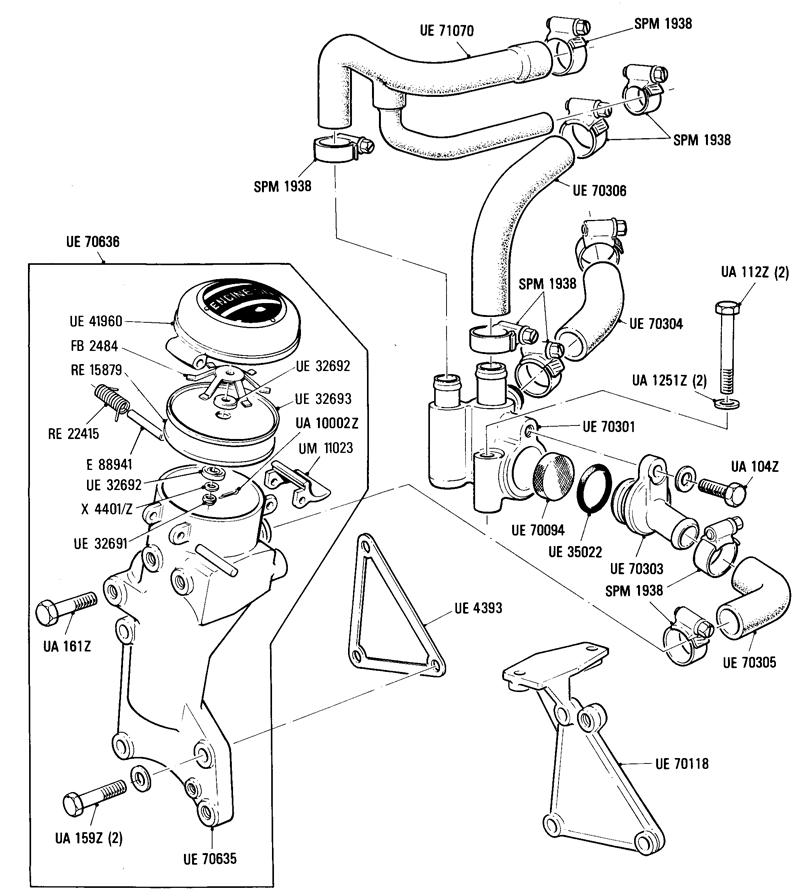

Visos Bentley Mulsanne S dalys →Schema
Paspauskite schemą, kad padidintumėte, arba poziciją lentelėje.
Pozicijos ir kodai
| Nr. | Detalė / OEM kodas | Skelb. | Kaina nuo | |
|---|---|---|---|---|
| 1 | ASSY HOUSING FLAME TRAP CRANKCASE BREATHER UE70301 | – | – | Ieškoti |
| 2 | ASSY OIL FILLER CAP ENGINE UE41960 | – | – | Ieškoti |
| 3 | ASSY OIL FILLER ENGINE UE70636 | – | – | Ieškoti |
| 4 | BOLT .250 UNF X .750 IN. LONG UA104Z | – | – | Ieškoti |
| 5 | BOLT .3125 UNF X 1.500 IN. LONG UA159Z | – | – | Ieškoti |
| 6 | BOLT .3125 UNF X 1.750 IN. LONG UA161Z | – | – | Ieškoti |
| 7 | BOLT.250 UNF X 1.750 IN. LONG UA112Z | – | – | Ieškoti |
| 8 | CATCH OIL FILLER CAP UM11023 | – | – | Ieškoti |
| 9 | COVER HOUSING FLAME TRAP CRANKCASE BREATHER UE70303 | – | – | Ieškoti |
| 10 | COVER PLATE CYLINDER HEAD UE70118 | – | – | Ieškoti |
| 11 | FLAME TRAP CRANKCASE BREATHER UE70094 | – | – | Ieškoti |
| 12 | HINGE PIN E88941 | – | – | Ieškoti |
| 13 | HOSE AUXILIARY AIR VALVE & IDLE CONTROL SOLENOID TO BREATHER UE71070 | – | – | Ieškoti |
| 14 | HOSE CIP 20/32MM SPM1938 | – | – | Ieškoti |
| 15 | HOSE FLAME TRAP HOUSING TO AIR INTAKE DUCT UE70306 | – | – | Ieškoti |
| 16 | HOSE FLAME TRAP HOUSING TO COLD START INJECTOR UE70304 | – | – | Ieškoti |
| 17 | HOSE FLAME TRAP HOUSING TO OIL FILLER UE70305 | – | – | Ieškoti |
| 18 | JOINT OIL FILLER TO CYLINDER HEAD UE4393 | – | – | Ieškoti |
| 19 | NUT OIL FILLER CAP UE32691 | – | – | Ieškoti |
| 20 | O RING .987 IN. I.D. X .103 IN. UE35022 | – | – | Ieškoti |
| 21 | OIL FILLER ENGINE UE70635 | – | – | Ieškoti |
| 22 | PLATE OIL FILLER CAP UE32693 | – | – | Ieškoti |
| 23 | SPIGOT WASHER OIL FILLER CAP UE32692 | – | – | Ieškoti |
| 24 | SPLIT PIN .031 IN. X .375 IN. LONG UA10002Z | – | – | Ieškoti |
| 25 | SPRING FB2484 | – | – | Ieškoti |
| 26 | TORSION SPRING RE22415 | – | – | Ieškoti |
| 27 | WASHER OIL FILLER CAP RE15879 | – | – | Ieškoti |
| 28 | WASHER PLAIN .265 IN. I.D. UA1251Z | – | – | Ieškoti |
| 29 | WASHER PLAIN 5BA X4401Z | – | – | Ieškoti |
