Bentley Arnage Le Mans pipes & silencers – schema ir OEM kodai

Exhaust System · 36 pozicijos · 0 skelbimų

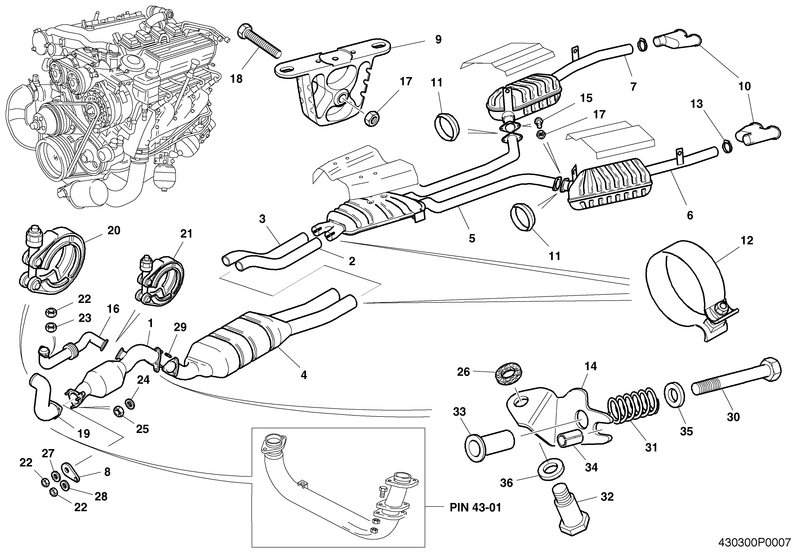

Schema

Paspauskite schemą, kad padidintumėte, arba poziciją lentelėje.

Pozicijos ir kodai

Nr.	Detalė / OEM kodas	Skelb.	Kaina nuo
4	ASSY CATALYST & PIPES PJ55312PA	–	–	Ieškoti
4	ASSY NON ACTIVE CATALYST & PIPES (NON CATALYST CARS) PJ55224PA	–	–	Ieškoti
16	ASSY PIPE BYPASS TURBO PJ55227PB	–	–	Ieškoti
1	ASSY PRE CATALYST PJ55232PB	–	–	Ieškoti
1	ASSY PRE CATALYST NON ACTIVE (NON CATALYST CARS) PJ55233PB	–	–	Ieškoti
5	ASSY SILENCER INTERMEDIATE & PIPES PJ55315PA	–	–	Ieškoti
30	BOLT .375 UNF X 4.000 IN. LONG UV11130PA	–	–	Ieškoti
18	BOLT M8 X 45MM LONG FLANGE HEAD PJ32668PA	–	–	Ieškoti
15	BOLT M8 X 55MM LONG FLANGE HEAD PJ26089PA	–	–	Ieškoti
32	BOLT SUPPORT PRE CATALYST REAR PJ57896PC	–	–	Ieškoti
14	BRACKET MOUNTING EXHAUST PRE CATALYST PJ58218PD	–	–	Ieškoti
12	CLAMP EXHAUST PJ27273PA	–	–	Ieškoti
20	CLAMP TURBOCHARGER OUTLET UE74974	–	–	Ieškoti
27	DISTANCE PIECE SPC3337	–	–	Ieškoti
13	HOSE CLIP 50/70MM SPM1950	–	–	Ieškoti
26	MESH SUPPORT PRE CATALYST REAR PJ57897PA	–	–	Ieškoti
8	MOUNTING BRACKET PRE CATALYST FRONT UE79198	–	–	Ieškoti
25	NUT .3125 UNF BINX SELF LOCKING PZ57976PA	–	–	Ieškoti
17	NUT M8 WHIZZ TYPE PC25597PA	–	–	Ieškoti
23	NUT PLAIN LOCK .3125 UNF UA352Z	–	–	Ieškoti
19	OUTLET PIPE TURBOCHARGER UE74539	–	–	Ieškoti
3	PIPE EXHAUST CATALYST TO INTERMEDIATE LH PJ55313PA	–	–	Ieškoti
2	PIPE EXHAUST CATALYST TO INTERMEDIATE RH PJ55314PA	–	–	Ieškoti
6	REAR SILENCER & PIPES LH PJ20475PD	–	–	Ieškoti
7	REAR SILENCER & PIPES RH PJ20474PD	–	–	Ieškoti
34	ROLL PIN BRACKET PRE CATALYST PZ58223PA	–	–	Ieškoti
9	RUBBER MOUNT EXHAUST PJ20478PA	–	–	Ieškoti
11	SEALING RING EXHAUST TO REAR SILENCER PJ26506PA	–	–	Ieškoti
36	SPACER 12.5MM I.D. X 22MM O.D. X 4MM THICK PZ106510PA	–	–	Ieškoti
33	SPACER BRACKET PRE CATALYST PJ58513PA	–	–	Ieškoti
22	SPHERICAL NUT WASTEGATE OUTLET TO MANIFOLD UE73173	–	–	Ieškoti
31	SPRING BRACKET PRE CATALYST PZ58221PA	–	–	Ieškoti
29	STUD .312 UNF X 1.937 IN. LONG WASTEGATE MOUNTING SPC3647	–	–	Ieškoti
10	TRIM EXHAUST TAILPIPE PJ59067PA	–	–	Ieškoti
21	V CLAMP TURBO BYPASS PIPE TO PRE CATALYST UE75209	–	–	Ieškoti
28	WASHER PLAIN .328 IN. I.D. UA1252R	–	–	Ieškoti
35	WASHER PLAIN M10 UM20225Z	–	–	Ieškoti
24	WASHER SEALING BLANKING PLUG SPC3602	–	–	Ieškoti
