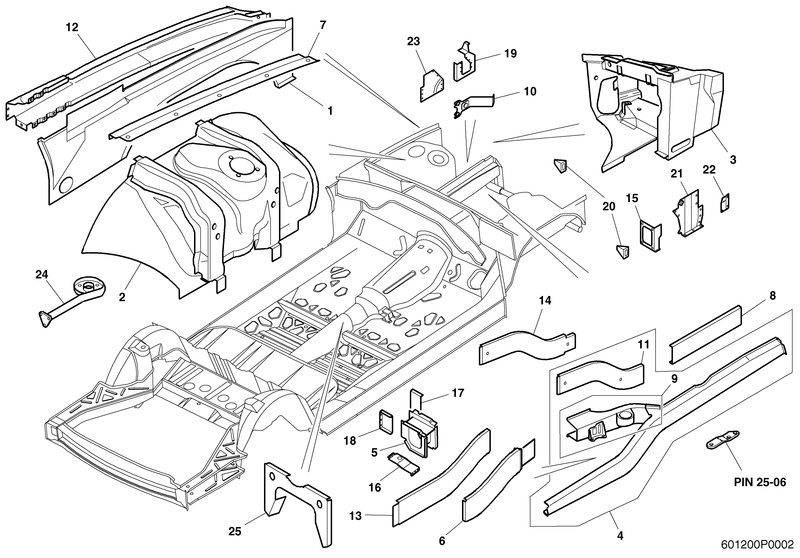

Bentley Arnage Le Mans front underframe – schema ir OEM kodai
Body Shell Excl Closing Panels · 25 pozicijos · 0 skelbimų
Visos Bentley Arnage Le Mans dalys →Schema
Paspauskite schemą, kad padidintumėte, arba poziciją lentelėje.
Pozicijos ir kodai
| Nr. | Detalė / OEM kodas | Skelb. | Kaina nuo | |
|---|---|---|---|---|
| 22 | ASSY BRACKET MOUNTING SHEAR PLATE PN56444PC | – | – | Ieškoti |
| 10 | ASSY BRAKE HOSE BRACKET FRONT PN32609PC | – | – | Ieškoti |
| 5 | ASSY CLOSER CENTRE FRONT LONGITUDINAL LH PN24137PF | – | – | Ieškoti |
| 5 | ASSY CLOSER CENTRE FRONT LONGITUDINAL RH PN24136PG | – | – | Ieškoti |
| 8 | ASSY CLOSER FRONT LONGITUDINAL LH PN22105PF | – | – | Ieškoti |
| 8 | ASSY CLOSER FRONT LONGITUDINAL RH PN22106PF | – | – | Ieškoti |
| 9 | ASSY DIAGONAL MEMBER LH PN25327PG | – | – | Ieškoti |
| 9 | ASSY DIAGONAL MEMBER RH PN25328PG | – | – | Ieškoti |
| 3 | ASSY HEADLAMP HOUSING COMPLETE LH PN25227PH | – | – | Ieškoti |
| 3 | ASSY HEADLAMP HOUSING COMPLETE RH PN25228PH | – | – | Ieškoti |
| 4 | ASSY LONGITUDINAL FRONT LH PN23121PJ | – | – | Ieškoti |
| 4 | ASSY LONGITUDINAL FRONT RH PN23122PJ | – | – | Ieškoti |
| 1 | ASSY PANEL VALANCE SIDE LH PN27353PF | – | – | Ieškoti |
| 1 | ASSY PANEL VALANCE SIDE RH PN27354PG | – | – | Ieškoti |
| 12 | ASSY REINFORCEMENT UPPER SIDE VALANCE LH PN28697PE | – | – | Ieškoti |
| 12 | ASSY REINFORCEMENT UPPER SIDE VALANCE RH PN28698PE | – | – | Ieškoti |
| 19 | ASSY SHEAR PLATE LH PN56399PB | – | – | Ieškoti |
| 15 | ASSY SHEAR PLATE RH PN56398PD | – | – | Ieškoti |
| 24 | ASSY TORSION STRUT LH PN57277PC | – | – | Ieškoti |
| 24 | ASSY TORSION STRUT RH PN57232PC | – | – | Ieškoti |
| 2 | ASSY WHEELARCH INNER FRONT LH PN22543PF | – | – | Ieškoti |
| 2 | ASSY WHEELARCH INNER FRONT RH PN22542PG | – | – | Ieškoti |
| 14 | CLOSER DIAGONAL MEMBER LH PN25407PC | – | – | Ieškoti |
| 14 | CLOSER DIAGONAL MEMBER RH PN25408PC | – | – | Ieškoti |
| 21 | CLOSER SHEAR PLATE RH PN55902PB | – | – | Ieškoti |
| 23 | CLOSER-SHEAR PLATE LH PN55903PA | – | – | Ieškoti |
| 13 | CLOSING PANEL CENTRE FRONT LONGITUDINAL LH PN27051PB | – | – | Ieškoti |
| 13 | CLOSING PANEL CENTRE FRONT LONGITUDINAL RH PN27052PB | – | – | Ieškoti |
| 16 | CLOSING PLATE LOWER FRONT LH PN24147PE | – | – | Ieškoti |
| 16 | CLOSING PLATE LOWER FRONT RH PN24148PE | – | – | Ieškoti |
| 6 | DOUBLING PLATE FRONT LONGITUDINAL LH PN27055PC | – | – | Ieškoti |
| 6 | DOUBLING PLATE FRONT LONGITUDINAL RH PN27056PC | – | – | Ieškoti |
| 17 | PANEL FRONT OUTRIGGER REAR EXTENSION LH PN25897PB | – | – | Ieškoti |
| 17 | PANEL FRONT OUTRIGGER REAR EXTENSION RH PN25898PB | – | – | Ieškoti |
| 18 | PANEL REAR OUTRIGGER FRONT EXTENSION LH PN25899PC | – | – | Ieškoti |
| 18 | PANEL REAR OUTRIGGER FRONT EXTENSION RH PN25900PC | – | – | Ieškoti |
| 7 | PANEL VALANCE UPPER LH PN20373PI | – | – | Ieškoti |
| 7 | PANEL VALANCE UPPER RH PN20374PI | – | – | Ieškoti |
| 11 | REINFORCEMENT DIAGONAL MEMBER LH PN25331PC | – | – | Ieškoti |
| 11 | REINFORCEMENT DIAGONAL MEMBER RH PN25332PC | – | – | Ieškoti |
| 25 | SADDLE BRACKETS TUNNEL LV11024PA | – | – | Ieškoti |
| 20 | WELD BOLT ASSY BRACKET CLOSER SHEAR PLATE PN57530PB | – | – | Ieškoti |
