Bentley Arnage Le Mans pipes & hoses, engine to tank – schema ir OEM kodai

Emission Control · 28 pozicijos · 0 skelbimų

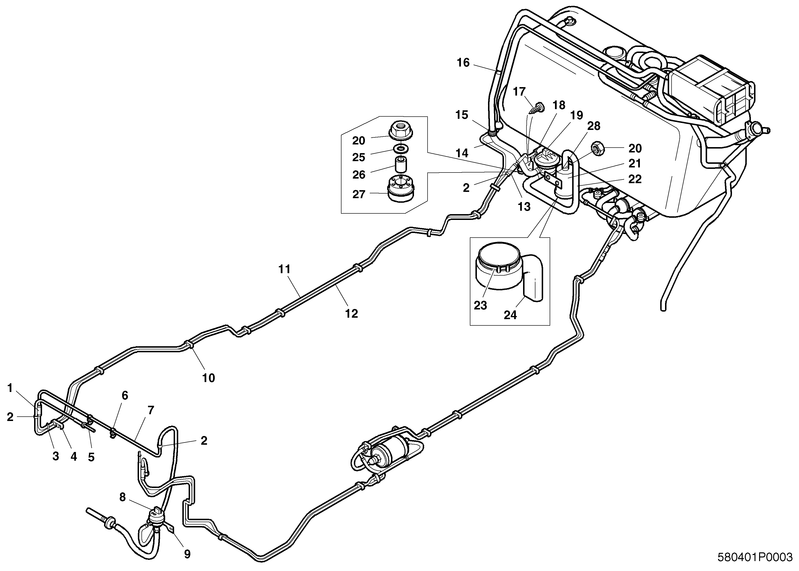

Schema

Paspauskite schemą, kad padidintumėte, arba poziciją lentelėje.

Pozicijos ir kodai

Nr.	Detalė / OEM kodas	Skelb.	Kaina nuo
5	ASSY HOSE ENGINE TO VACUUM PIPE PB55359PA	–	–	Ieškoti
13	ASSY HOSE VACUUM PIPE TO LEAK DETECTION PUMP PB55645PA	–	–	Ieškoti
8	ASSY PURGE VALVE CHECK VALVE PF55923PA	–	–	Ieškoti
9	BRACKET MOUNTING ASSY PURGE VALVE PF55924PA	–	–	Ieškoti
18	BRACKET MOUNTING LEAK DETECTION PUMP PB55916PA	–	–	Ieškoti
2	CLIP HOSE 12.5/14.0 MM PF29233PA	–	–	Ieškoti
28	CLIP HOSE 21.5/23.0 MM PF29242PA	–	–	Ieškoti
16	CONNECTOR (NORMA) PF30947PA	–	–	Ieškoti
21	FILTER LEAK DETECTION PUMP PB21406PA	–	–	Ieškoti
15	GROMMET CANISTER TO LEAK DETECTION PUMP PF27206PA	–	–	Ieškoti
1	HOSE PF26306PB	–	–	Ieškoti
23	HOSE CLIP (COBRA 64/9) PB31171PA	–	–	Ieškoti
14	HOSE LEAK DETECTION PUMP TO STRAIGHT CONNECTOR PB55334PA	–	–	Ieškoti
22	HOSE LEAK DETECTION PUMP TO FILTER PB56361PA	–	–	Ieškoti
19	LEAK DETECTION PUMP PB21405PC	–	–	Ieškoti
20	NUT WHIZTITE M6 PB25054PA	–	–	Ieškoti
11	PIPE CANISTER TO PURGE CLUSTER PF55251PB	–	–	Ieškoti
10	PIPE CLIP 2 X 8.00 RETAINED TYPE PC31719PA	–	–	Ieškoti
4	PIPE CLIP 3 WAY (1 X 4.76MM + 2 X 8MM) PC29988PA	–	–	Ieškoti
6	PIPE CLIP 4.76 AND 8.00 RETAINED TYPE PC32790PA	–	–	Ieškoti
3	PIPE CLIP TRW PF32017PA	–	–	Ieškoti
7	PIPE PURGE VALVE TO CLUSTER LHD PF55415PB	–	–	Ieškoti
7	PIPE PURGE VALVE TO CLUSTER RHD PF55418PB	–	–	Ieškoti
12	PIPE VACUUM TO LEAK DETECTION PUMP PB55646PB	–	–	Ieškoti
27	RUBBER MOUNT PC21090PA	–	–	Ieškoti
17	SCREW PRESSURE PUMP MOUNTING PB23173PB	–	–	Ieškoti
26	SPACER RUBBER MOUNT PC21094PA	–	–	Ieškoti
25	WASHER PC21093PA	–	–	Ieškoti
24	WATERSHIELD LEAK DETECTION PUMP FILTER PB27312PB	–	–	Ieškoti
