Bentley Arnage Le Mans external coolant gallery – schema ir OEM kodai
Cooling System · 13 pozicijų · 0 skelbimų

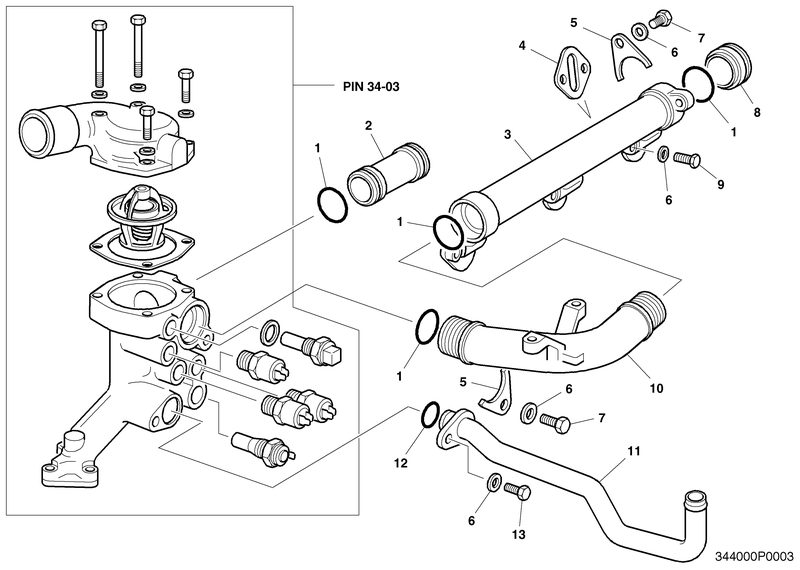

Visos Bentley Arnage Le Mans dalys →Schema
Paspauskite schemą, kad padidintumėte, arba poziciją lentelėje.
Pozicijos ir kodai
| Nr. | Detalė / OEM kodas | Skelb. | Kaina nuo | |
|---|---|---|---|---|
| 8 | BLANKING PLUG COOLANT PIPE UE74491 | – | – | Ieškoti |
| 7 | BOLT .250 UNF X .625 IN. LONG UA103Z | – | – | Ieškoti |
| 13 | BOLT .250 UNF X .875 IN. LONG UA105Z | – | – | Ieškoti |
| 9 | BOLT .250 UNF X 1.500 IN. LONG UA110Z | – | – | Ieškoti |
| 2 | COOLANT PIPE A BANK GALLERY TO THERMOSTAT HOUSING UE73954 | – | – | Ieškoti |
| 4 | JOINT COOLANT PIPE TO CYLINDER HEAD UE73952 | – | – | Ieškoti |
| 1 | O RING 1.174 IN. I.D. X .103 IN. UE34219 | – | – | Ieškoti |
| 12 | O RING ADAPTOR RE25134 | – | – | Ieškoti |
| 10 | PIPE COOLANT GALLERY TO THERMOSTAT HOUSING B BANK UV35197PB | – | – | Ieškoti |
| 11 | PIPE-HVAC-HEATER-FLOW-ENG-L675 PA56317PB | – | – | Ieškoti |
| 5 | RETAINING PLATE COOLANT PIPE UE36237 | – | – | Ieškoti |
| 6 | WASHER PLAIN .265 IN. I.D. UA1251Z | – | – | Ieškoti |
| 3 | WATER GALLERY PB58222PA | – | – | Ieškoti |
