Bentley Arnage Le Mans interior trim & waistrail (door rear) – schema ir OEM kodai

Door Rear · 39 pozicijos · 0 skelbimų

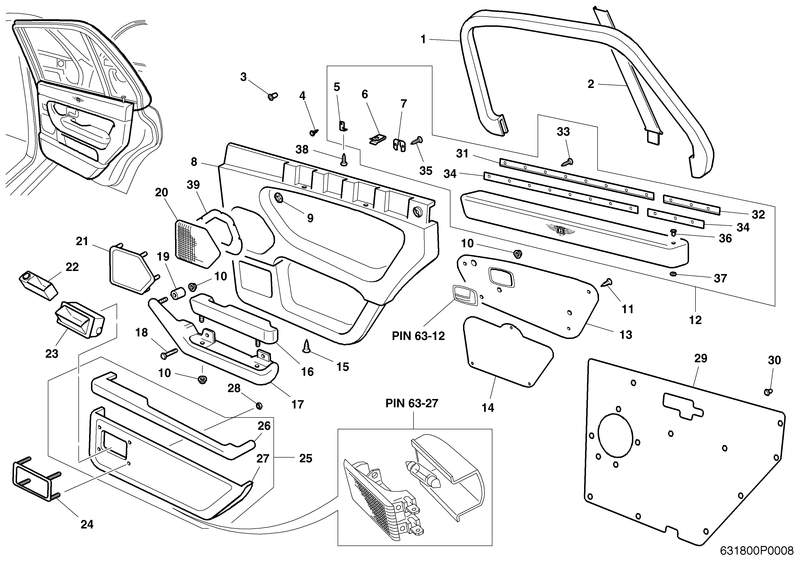

Schema

Paspauskite schemą, kad padidintumėte, arba poziciją lentelėje.

Pozicijos ir kodai

Nr.	Detalė / OEM kodas	Skelb.	Kaina nuo
16	ASSY ARMREST REAR DOOR LH PP56915PA	–	–	Ieškoti
16	ASSY ARMREST REAR DOOR RH PP56916PA	–	–	Ieškoti
22	ASSY ASHTRAY INSERT LH PP32573PA	–	–	Ieškoti
22	ASSY ASHTRAY INSERT RH PP32574PA	–	–	Ieškoti
23	ASSY ASHTRAY TRIMMED DOOR LH PP33332PA	–	–	Ieškoti
23	ASSY ASHTRAY TRIMMED DOOR RH PP33330PA	–	–	Ieškoti
24	ASSY BEZEL ASHTRAY TRIMMED LH PP29703PB	–	–	Ieškoti
24	ASSY BEZEL ASHTRAY TRIMMED RH PP29702PB	–	–	Ieškoti
27	ASSY DOOR POCKET LOWER REAR LH PP23933PE	–	–	Ieškoti
27	ASSY DOOR POCKET LOWER REAR RH PP23932PE	–	–	Ieškoti
26	ASSY DOOR POCKET UPPER REAR LH PP23895PC	–	–	Ieškoti
26	ASSY DOOR POCKET UPPER REAR RH PP23896PC	–	–	Ieškoti
19	ASSY DOOR PULL BOSS REAR LH PP25419PB	–	–	Ieškoti
19	ASSY DOOR PULL BOSS REAR RH PP25418PB	–	–	Ieškoti
17	ASSY DOOR PULL REAR LH PP56913PA	–	–	Ieškoti
17	ASSY DOOR PULL REAR RH PP56914PA	–	–	Ieškoti
1	ASSY DOOR UPPER REAR LH PP21361PB	–	–	Ieškoti
1	ASSY DOOR UPPER REAR RH PP21362PB	–	–	Ieškoti
14	ASSY INSERT PANEL LOWER TRIMMED REAR DOOR LH PP23715PA	–	–	Ieškoti
14	ASSY INSERT PANEL LOWER TRIMMED REAR DOOR RH PP23716PA	–	–	Ieškoti
13	ASSY INSERT PANEL UPPER TRIMMED REAR LH PP21323PA	–	–	Ieškoti
13	ASSY INSERT PANEL UPPER TRIMMED REAR RH PP21322PA	–	–	Ieškoti
25	ASSY POCKET REAR DOOR LH PP21341PC	–	–	Ieškoti
25	ASSY POCKET REAR DOOR RH PP21342PC	–	–	Ieškoti
8	ASSY TRIM PAD REAR DOOR LH PP21153PB	–	–	Ieškoti
8	ASSY TRIM PAD REAR DOOR RH PP21152PB	–	–	Ieškoti
2	ASSY TRIMMED GLASS DIVISION BAR LH PP33113PA	–	–	Ieškoti
2	ASSY TRIMMED GLASS DIVISION BAR RH PP33112PA	–	–	Ieškoti
12	ASSY WAISTRAIL BENTLEY LOGO REAR LH PP59327PA	–	–	Ieškoti
12	ASSY WAISTRAIL BENTLEY LOGO REAR RH PP59326PA	–	–	Ieškoti
21	BEZEL SPEAKER PRIMER FINISH REAR DOOR LH PP28255PD	–	–	Ieškoti
21	BEZEL SPEAKER PRIMER FINISH REAR DOOR RH PP28254PD	–	–	Ieškoti
5	BRACKET SUPPORT WAISTRAIL PP27154PD	–	–	Ieškoti
36	BUSH SILL BUTTON UB35300	–	–	Ieškoti
6	CAPTIVE NUT UB15969	–	–	Ieškoti
3	CAPTIVE NUT (FASTEX) UB72026	–	–	Ieškoti
32	FINISHER WAISTRAIL QUARTER GLASS PP29449PE	–	–	Ieškoti
31	FINISHER WAISTRAIL REAR DOOR PP29448PE	–	–	Ieškoti
39	GASKET SPEAKER BEZEL REAR DOOR LH PP58193PA	–	–	Ieškoti
39	GASKET SPEAKER BEZEL REAR DOOR RH PP58192PA	–	–	Ieškoti
20	GRILLE SPEAKER PRIMER FINISH REAR DOOR LH PP33885PA	–	–	Ieškoti
20	GRILLE SPEAKER PRIMER FINISH REAR DOOR RH PP33884PA	–	–	Ieškoti
34	INSEAL X 25MM X 1.5MM X 4.8M LONG UB75620	–	–	Ieškoti
7	KEYHOLE PLATE PP27153PC	–	–	Ieškoti
28	NUT M4 COMBINATION PF30219PA	–	–	Ieškoti
10	NUT WHIZTITE M5 X 0.8 PT24658PA	–	–	Ieškoti
35	SCREW CSK HEAD NO.4 X .375 IN. LONG UA8901Z	–	–	Ieškoti
33	SCREW FLANGE HEAD NO.4 X .500 IN. LONG UA7103Z	–	–	Ieškoti
15	SCREW FLANGE HEAD NO.6 X .625 IN. LONG UA9313Z	–	–	Ieškoti
11	SCREW FLANGE HEAD NO.8 X .500 IN. LONG UA9321Z	–	–	Ieškoti
38	SCREW WASHER PAN HEAD NO.6 X .750 IN. LONG BLACK SPC2735	–	–	Ieškoti
18	SETSCREW M5 X 25MM LONG UM20716Z	–	–	Ieškoti
37	STARLOCK WASHER .500 IN. NOMINAL UB35297	–	–	Ieškoti
9	STARLOCK WASHER 2.00MM NOMINAL SPM1859	–	–	Ieškoti
30	STUD HOLDER TRIM PANELS GREEN PP28903PB	–	–	Ieškoti
4	TRIM CLIP FIXED RED PP32162PA	–	–	Ieškoti
29	WATER SHEDDER REAR DOOR LH PP26345PF	–	–	Ieškoti
29	WATER SHEDDER REAR DOOR RH PP26346PF	–	–	Ieškoti
