Bentley Arnage Le Mans shell panels, front – schema ir OEM kodai

Body Shell Excl Closing Panels · 36 pozicijos · 0 skelbimų

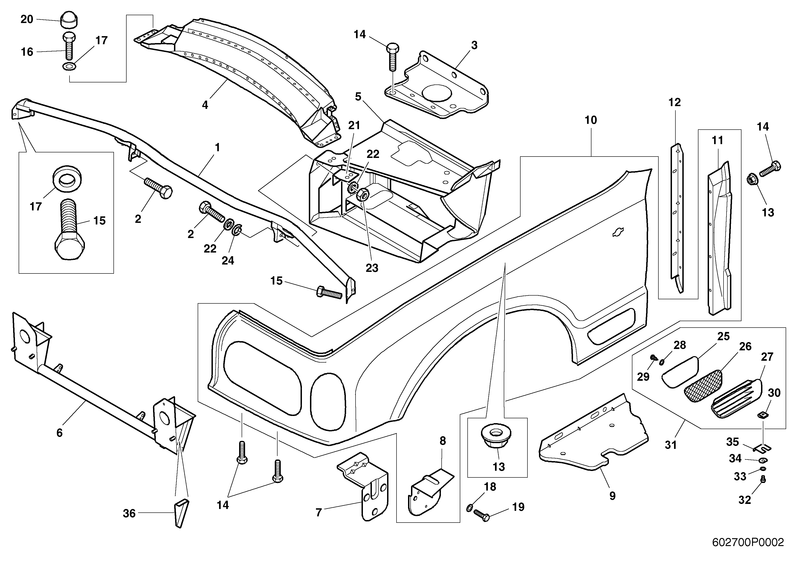

Schema

Paspauskite schemą, kad padidintumėte, arba poziciją lentelėje.

Pozicijos ir kodai

Nr.	Detalė / OEM kodas	Skelb.	Kaina nuo
8	ASSY BRACKET BUMPER MOUNTING LH PN23279PB	–	–	Ieškoti
8	ASSY BRACKET BUMPER MOUNTING RH PN23278PB	–	–	Ieškoti
7	ASSY BRACKET BUMPER SLIDE LH PN25267PC	–	–	Ieškoti
7	ASSY BRACKET BUMPER SLIDE RH PN25268PC	–	–	Ieškoti
4	ASSY CROSSMEMBER BONNET PN109328PA	–	–	Ieškoti
6	ASSY CROSSMEMBER FRONT LOWER PN57004PA	–	–	Ieškoti
1	ASSY CROSSTUBE UPPER PN56428PA	–	–	Ieškoti
10	ASSY FRONT WING WITH VENT & SIDE REPEATER APERTURE LH PN59255PA	–	–	Ieškoti
10	ASSY FRONT WING WITH VENT & SIDE REPEATER APERTURE RH PN59254PA	–	–	Ieškoti
10	ASSY FRONT WING WITH VENT APERTURE LH PN59257PA	–	–	Ieškoti
10	ASSY FRONT WING WITH VENT APERTURE RH PN59256PA	–	–	Ieškoti
5	ASSY HEADLAMP HOUSING COMPLETE LH PN25227PH	–	–	Ieškoti
5	ASSY HEADLAMP HOUSING COMPLETE RH PN25228PH	–	–	Ieškoti
31	ASSY MOULDING WING VENT LH PS59285PA	–	–	Ieškoti
31	ASSY MOULDING WING VENT RH PS59284PA	–	–	Ieškoti
21	ASSY REINFORCEMENT RADIATOR SIDE PANEL PN24630PC	–	–	Ieškoti
9	ASSY SUPPORT FRONT WING LOWER LH PN23551PE	–	–	Ieškoti
9	ASSY SUPPORT FRONT WING LOWER RH PN23550PE	–	–	Ieškoti
25	BACKING WING VENT PS59290PA	–	–	Ieškoti
16	BOLT M8 X 45MM LONG UM21476Z	–	–	Ieškoti
3	BRACKET MOUNTING BONNET LOCK LH PN24487PF	–	–	Ieškoti
3	BRACKET MOUNTING BONNET LOCK RH PN24488PF	–	–	Ieškoti
20	CAP PROTECTION M8 BOLT SIZE PP32743PA	–	–	Ieškoti
30	CAPTIVE NUT SPC3751	–	–	Ieškoti
26	MESH WING VENT PS59259PA	–	–	Ieškoti
23	NUT PLAIN M8 UM21558Z	–	–	Ieškoti
13	NUT WHIZTITE M6 PB25054PA	–	–	Ieškoti
35	PACKER ANTI ROTATION WING VENT PS59439PA	–	–	Ieškoti
12	PANEL A POST FRONT WING LH PN21071PD	–	–	Ieškoti
12	PANEL A POST FRONT WING RH PN21072PD	–	–	Ieškoti
11	PANEL BAFFLE FRONT WING LH PN20113PG	–	–	Ieškoti
11	PANEL BAFFLE FRONT WING RH PN20114PG	–	–	Ieškoti
29	SCREW FLANGE HEAD NO.4 X .500 IN. LONG UA7103Z	–	–	Ieškoti
32	SCREW HEX HEAD NO.8 x .500 IN. LONG UA7822Z	–	–	Ieškoti
19	SETSCREW M6 X 12MM LONG UM21434Z	–	–	Ieškoti
14	SETSCREW M6 X 16MM LONG UM21436Z	–	–	Ieškoti
15	SETSCREW M6 X 16MM LONG UM21436Z	–	–	Ieškoti
2	SETSCREW M8 X 20MM LONG UM21466Z	–	–	Ieškoti
24	SPRING WASHER M8 UM21910Z	–	–	Ieškoti
36	TUBE LOWER SUPPORT CROSSMEMBER OUTER LH PN56299PB	–	–	Ieškoti
36	TUBE LOWER SUPPORT CROSSMEMBER OUTER RH PN56298PB	–	–	Ieškoti
27	VENT WING UNFINISHED LH PS59157PA	–	–	Ieškoti
27	VENT WING UNFINISHED RH PS59156PA	–	–	Ieškoti
34	WASHER SPC3046	–	–	Ieškoti
28	WASHER PLAIN 5BA X4401Z	–	–	Ieškoti
33	WASHER PLAIN M4 UM20203Z	–	–	Ieškoti
18	WASHER PLAIN M6 UM22706Z	–	–	Ieškoti
17	WASHER PLAIN M8 UM20206Z	–	–	Ieškoti
22	WASHER PLAIN M8 UM20206Z	–	–	Ieškoti
