Bentley Mulsanne SL parcel shelf & roof trim – schema ir OEM kodai
Body · 14 pozicijų · 0 skelbimų

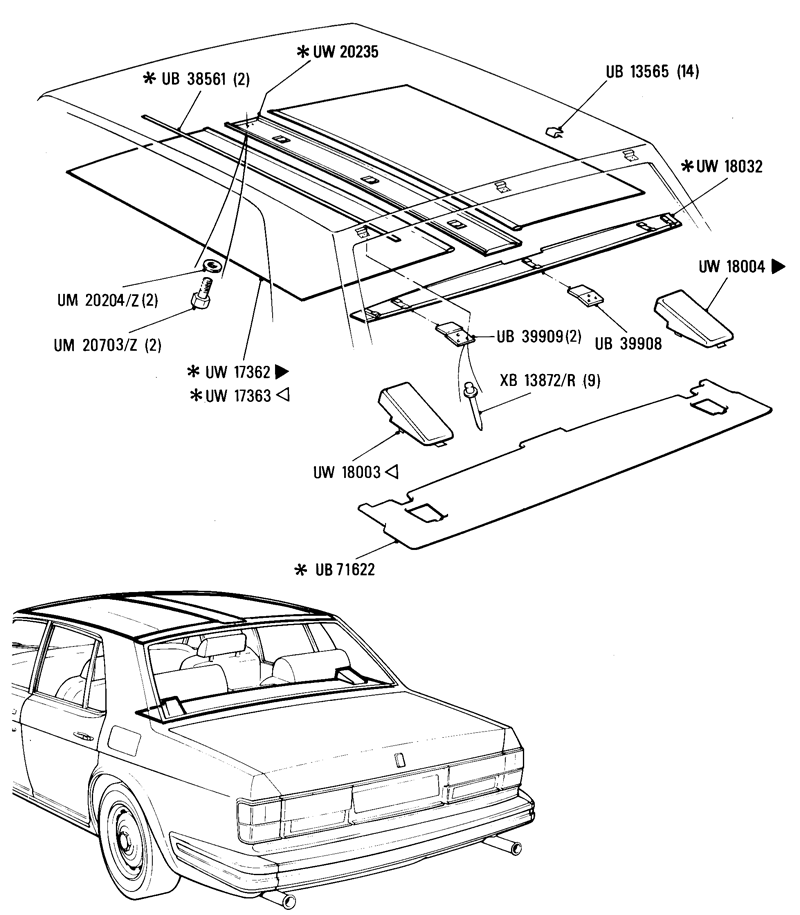

Visos Bentley Mulsanne SL dalys →Schema
Paspauskite schemą, kad padidintumėte, arba poziciją lentelėje.
Pozicijos ir kodai
| Nr. | Detalė / OEM kodas | Skelb. | Kaina nuo | |
|---|---|---|---|---|
| 1 | ASSY CENTRE ROOF BOW LWB UW20231 | – | – | Ieškoti |
| 1 | ASSY CENTRE ROOF BOW LWB UW20232 | – | – | Ieškoti |
| 1 | ASSY CENTRE ROOF BOW LWB UW20233 | – | – | Ieškoti |
| 1 | ASSY CENTRE ROOF BOW LWB UW20234 | – | – | Ieškoti |
| 1 | ASSY CENTRE ROOF BOW SWB UW20236 | – | – | Ieškoti |
| 1 | ASSY CENTRE ROOF BOW SWB UW20237 | – | – | Ieškoti |
| 1 | ASSY CENTRE ROOF BOW SWB UW20238 | – | – | Ieškoti |
| 1 | ASSY CENTRE ROOF BOW SWB UW20235 | – | – | Ieškoti |
| 2 | ASSY COVER SEATBELT PARCEL SHELF LH UW18003 | – | – | Ieškoti |
| 3 | ASSY COVER SEATBELT PARCEL SHELF RH UW18004 | – | – | Ieškoti |
| 4 | ASSY TRIM PARCEL SHELF CLOTH UB71542 | – | – | Ieškoti |
| 4 | ASSY TRIM PARCEL SHELF CLOTH UB71618 | – | – | Ieškoti |
| 4 | ASSY TRIM PARCEL SHELF CLOTH UB71625 | – | – | Ieškoti |
| 4 | ASSY TRIM PARCEL SHELF HIDE UB71539 | – | – | Ieškoti |
| 4 | ASSY TRIM PARCEL SHELF HIDE UB71615 | – | – | Ieškoti |
| 4 | ASSY TRIM PARCEL SHELF HIDE UB71622 | – | – | Ieškoti |
| 4 | ASSY TRIM PARCEL SHELF MARVELON UB71540 | – | – | Ieškoti |
| 4 | ASSY TRIM PARCEL SHELF MARVELON UB71616 | – | – | Ieškoti |
| 4 | ASSY TRIM PARCEL SHELF MARVELON UB71623 | – | – | Ieškoti |
| 4 | ASSY TRIM PARCEL SHELF WHIPCORD UB71541 | – | – | Ieškoti |
| 4 | ASSY TRIM PARCEL SHELF WHIPCORD UB71617 | – | – | Ieškoti |
| 4 | ASSY TRIM PARCEL SHELF WHIPCORD UB71624 | – | – | Ieškoti |
| 5 | ASSY TRIM REAR HEADER PANEL UW18032 | – | – | Ieškoti |
| 5 | ASSY TRIM REAR HEADER PANEL UW18033 | – | – | Ieškoti |
| 5 | ASSY TRIM REAR HEADER PANEL UW18034 | – | – | Ieškoti |
| 5 | ASSY TRIM REAR HEADER PANEL UW18035 | – | – | Ieškoti |
| 6 | BRACKET SUPPORT REAR HEADER CENTRE UB39908 | – | – | Ieškoti |
| 7 | BRACKET SUPPORT REAR HEADER OUTBOARD UB39909 | – | – | Ieškoti |
| 8 | EDGE CLIP UB13565 | – | – | Ieškoti |
| 9 | LONGITUDINAL LISTING BAR HEADLINING LWB UB38562 | – | – | Ieškoti |
| 9 | LONGITUDINAL LISTING BAR HEADLINING SWB UB38561 | – | – | Ieškoti |
| 10 | PANEL HEADLINING CLOTH LH LWB UW17361 | – | – | Ieškoti |
| 10 | PANEL HEADLINING CLOTH LH SWB UW17369 | – | – | Ieškoti |
| 11 | PANEL HEADLINING CLOTH RH LWB UW17360 | – | – | Ieškoti |
| 11 | PANEL HEADLINING CLOTH RH SWB UW17368 | – | – | Ieškoti |
| 10 | PANEL HEADLINING HIDE LH LWB UW17355 | – | – | Ieškoti |
| 10 | PANEL HEADLINING HIDE LH SWB UW17363 | – | – | Ieškoti |
| 11 | PANEL HEADLINING HIDE RH LWB UW17354 | – | – | Ieškoti |
| 11 | PANEL HEADLINING HIDE RH SWB UW17362 | – | – | Ieškoti |
| 10 | PANEL HEADLINING MARVELON LH LWB UW17357 | – | – | Ieškoti |
| 10 | PANEL HEADLINING MARVELON LH SWB UW17365 | – | – | Ieškoti |
| 11 | PANEL HEADLINING MARVELON RH LWB UW17356 | – | – | Ieškoti |
| 11 | PANEL HEADLINING MARVELON RH SWB UW17364 | – | – | Ieškoti |
| 10 | PANEL HEADLINING WHIPCORD LH LWB UW17359 | – | – | Ieškoti |
| 10 | PANEL HEADLINING WHIPCORD LH SWB UW17367 | – | – | Ieškoti |
| 11 | PANEL HEADLINING WHIPCORD RH LWB UW17358 | – | – | Ieškoti |
| 11 | PANEL HEADLINING WHIPCORD RH SWB UW17366 | – | – | Ieškoti |
| 12 | RIVET POP DOMED HEAD .156 IN. X .240 IN. LONG XB13872R | – | – | Ieškoti |
| 13 | SETSCREW M5 X 10MM LONG UM20703Z | – | – | Ieškoti |
| 14 | WASHER PLAIN M5 UM20204Z | – | – | Ieškoti |
