Bentley Mulsanne SL electrically operated door mirror – schema ir OEM kodai
Body · 12 pozicijų · 0 skelbimų

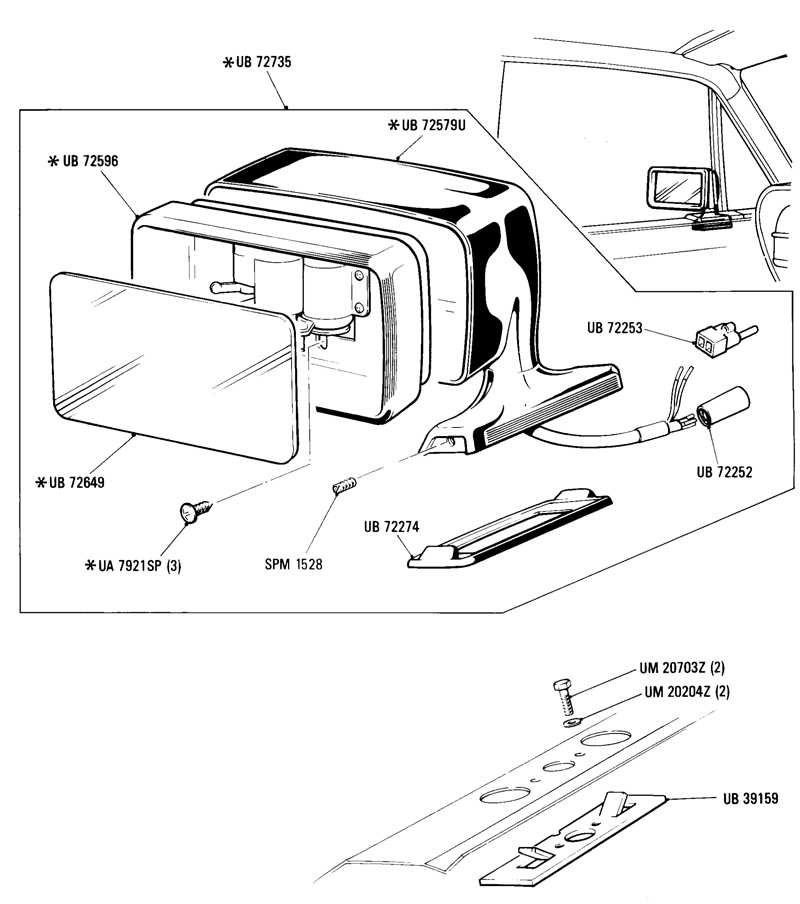

Visos Bentley Mulsanne SL dalys →Schema
Paspauskite schemą, kad padidintumėte, arba poziciją lentelėje.
Pozicijos ir kodai
| Nr. | Detalė / OEM kodas | Skelb. | Kaina nuo | |
|---|---|---|---|---|
| 1 | ASSY DOOR MIRROR CONVEX GLASS LH LHD UB72735 | – | – | Ieškoti |
| 1 | ASSY DOOR MIRROR CONVEX GLASS LH RHD UB72737 | – | – | Ieškoti |
| 1 | ASSY DOOR MIRROR CONVEX GLASS RH LHD UB72736 | – | – | Ieškoti |
| 1 | ASSY DOOR MIRROR CONVEX GLASS RH RHD UB72738 | – | – | Ieškoti |
| 1 | ASSY DOOR MIRROR FLAT GLASS LH LHD UB72739 | – | – | Ieškoti |
| 1 | ASSY DOOR MIRROR FLAT GLASS LH RHD UB72741 | – | – | Ieškoti |
| 1 | ASSY DOOR MIRROR FLAT GLASS RH LHD UB72740 | – | – | Ieškoti |
| 1 | ASSY DOOR MIRROR FLAT GLASS RH RHD UB72742 | – | – | Ieškoti |
| 2 | ASSY GLASS DOOR MIRROR CONVEX UB72649 | – | – | Ieškoti |
| 2 | ASSY GLASS DOOR MIRROR FLAT UB72648 | – | – | Ieškoti |
| 3 | ASSY LINER & MOTOR DOOR MIRROR UB72596 | – | – | Ieškoti |
| 4 | ASSY SHELL & FOOT DOOR MIRROR PRIMED LH LHD UB72579U | – | – | Ieškoti |
| 4 | ASSY SHELL & FOOT DOOR MIRROR PRIMED LH RHD UB72581U | – | – | Ieškoti |
| 4 | ASSY SHELL & FOOT DOOR MIRROR PRIMED RH LHD UB72580U | – | – | Ieškoti |
| 4 | ASSY SHELL & FOOT DOOR MIRROR PRIMED RH RHD UB72582U | – | – | Ieškoti |
| 5 | CONNECTOR HOUSING HEATER DOOR MIRROR UB72253 | – | – | Ieškoti |
| 6 | CONNECTOR HOUSING MOTOR DOOR MIRROR UB72252 | – | – | Ieškoti |
| 7 | GASKET DOOR MIRROR UB72274 | – | – | Ieškoti |
| 8 | GRUBSCREW M6 X 16MM LONG SPM1528 | – | – | Ieškoti |
| 9 | MOUNTING PLATE DOOR MIRROR UB39159 | – | – | Ieškoti |
| 10 | SCREW PAN HEAD NO.8 X .500 IN. LONG UA7921SP | – | – | Ieškoti |
| 11 | SETSCREW M5 X 10MM LONG UM20703Z | – | – | Ieškoti |
| 12 | WASHER PLAIN M5 UM20204Z | – | – | Ieškoti |
