Bentley Mulsanne SL front subframe & mountings (2) – schema ir OEM kodai
Subframe & Suspension · 40 pozicijų · 0 skelbimų

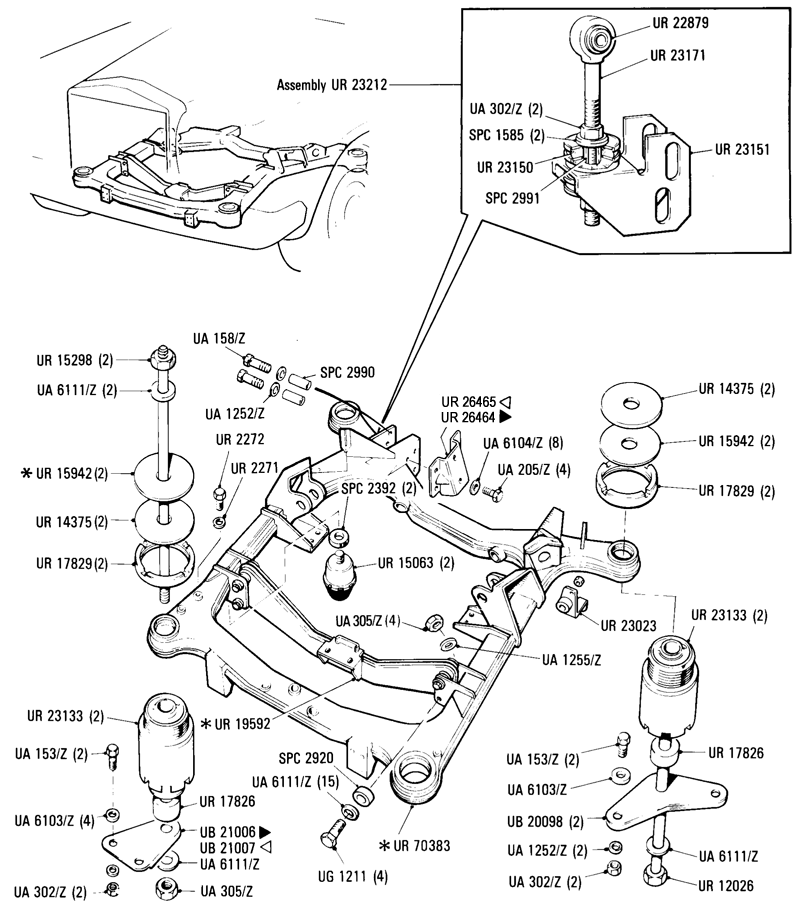

Visos Bentley Mulsanne SL dalys →Schema
Paspauskite schemą, kad padidintumėte, arba poziciją lentelėje.
Pozicijos ir kodai
| Nr. | Detalė / OEM kodas | Skelb. | Kaina nuo | |
|---|---|---|---|---|
| 1 | ASSY BUMP STOP FRONT SUSPENSION UR15063 | – | – | Ieškoti |
| 2 | ASSY STUD FRONT SUBFRAME MOUNTING UR15298 | – | – | Ieškoti |
| 3 | ASSY SUBFRAME FRONT UR70383 | – | – | Ieškoti |
| 4 | ASSY TIE BAR & BRACKET FRONT SUBFRAME UR23212 | – | – | Ieškoti |
| 5 | ASSY TIE BAR FRONT SUBFRAME UR23171 | – | – | Ieškoti |
| 6 | BOLT .3125 UNF X .750 IN. LONG UA153Z | – | – | Ieškoti |
| 7 | BOLT .3125 UNF X 1.250 IN. LONG UA158Z | – | – | Ieškoti |
| 8 | BOLT .375 UNF X .875 IN. LONG UA205Z | – | – | Ieškoti |
| 9 | BOLT .500 UNF X 3.250 IN. LONG UG1211 | – | – | Ieškoti |
| 10 | BOLT FRONT SUBFRAME TO BODY UR12026 | – | – | Ieškoti |
| 11 | BRACKET ENGINE MOUNT REAR LH UR26465 | – | – | Ieškoti |
| 12 | BRACKET ENGINE MOUNT REAR RH UR26464 | – | – | Ieškoti |
| 13 | BRACKET REAR MOUNTING FRONT SUBFRAME UB20098 | – | – | Ieškoti |
| 14 | BRACKET STEADY FRONT MOUNTING FRONT SUBFRAME LH UB21007 | – | – | Ieškoti |
| 15 | BRACKET STEADY FRONT MOUNTING FRONT SUBFRAME RH UB21006 | – | – | Ieškoti |
| 16 | COMPRESSION WASHER TIE BAR FRONT SUBFRAME UR23150 | – | – | Ieškoti |
| 17 | DISTANCE PIECE SPC2920 | – | – | Ieškoti |
| 18 | ENGINE CROSSMEMBER FRONT SUBFRAME UR19592 | – | – | Ieškoti |
| 19 | METALASTIC BUSH ENGINE TIE BAR FRONT SUBFRAME UR22879 | – | – | Ieškoti |
| 20 | MOUNT FRONT SUBFRAME UR23133 | – | – | Ieškoti |
| 21 | MOUNTING BRACKET TIE BAR FRONT SUBFRAME UR23151 | – | – | Ieškoti |
| 22 | NUT PLAIN .3125 UNF UA302Z | – | – | Ieškoti |
| 23 | NUT PLAIN .500 UNF UA305Z | – | – | Ieškoti |
| 24 | PACKING WASHER FRONT SUBFRAME MOUNT (.036 IN.) UR15942 | – | – | Ieškoti |
| 24 | PACKING WASHER FRONT SUBFRAME MOUNT (.064 IN.) UR15943 | – | – | Ieškoti |
| 25 | PACKING WASHER FRONT SUBFRAME MOUNT (.128 IN.) UR15944 | – | – | Ieškoti |
| 26 | PLUG 1/8 BSP UR2272 | – | – | Ieškoti |
| 27 | RING NUT FRONT SUBFRAME MOUNT UR17829 | – | – | Ieškoti |
| 28 | SPACER SPC2991 | – | – | Ieškoti |
| 29 | SPACER SPC2990 | – | – | Ieškoti |
| 30 | SPACER FRONT SUBFRAME MOUNT UR17826 | – | – | Ieškoti |
| 31 | STABILISER BRACKET FRONT SUBFRAME UR23023 | – | – | Ieškoti |
| 32 | WASHER SPC2392 | – | – | Ieškoti |
| 33 | WASHER 1/8 BSP UR2271 | – | – | Ieškoti |
| 34 | WASHER FRONT SUBFRAME MOUNT UR14375 | – | – | Ieškoti |
| 35 | WASHER HEAVY SPC1585 | – | – | Ieškoti |
| 36 | WASHER PLAIN .328 IN. I.D. UA1252Z | – | – | Ieškoti |
| 37 | WASHER PLAIN .515 IN. I.D. UA1255Z | – | – | Ieškoti |
| 38 | WASHER THICK .3175 IN. I.D. UA6103Z | – | – | Ieškoti |
| 39 | WASHER THICK .380 IN. I.D. UA6104Z | – | – | Ieškoti |
| 40 | WASHER THICK .505 IN. I.D. UA6111Z | – | – | Ieškoti |
