Bentley Mulsanne SL n. america only (rear bumper) – schema ir OEM kodai
Body · 37 pozicijos · 0 skelbimų

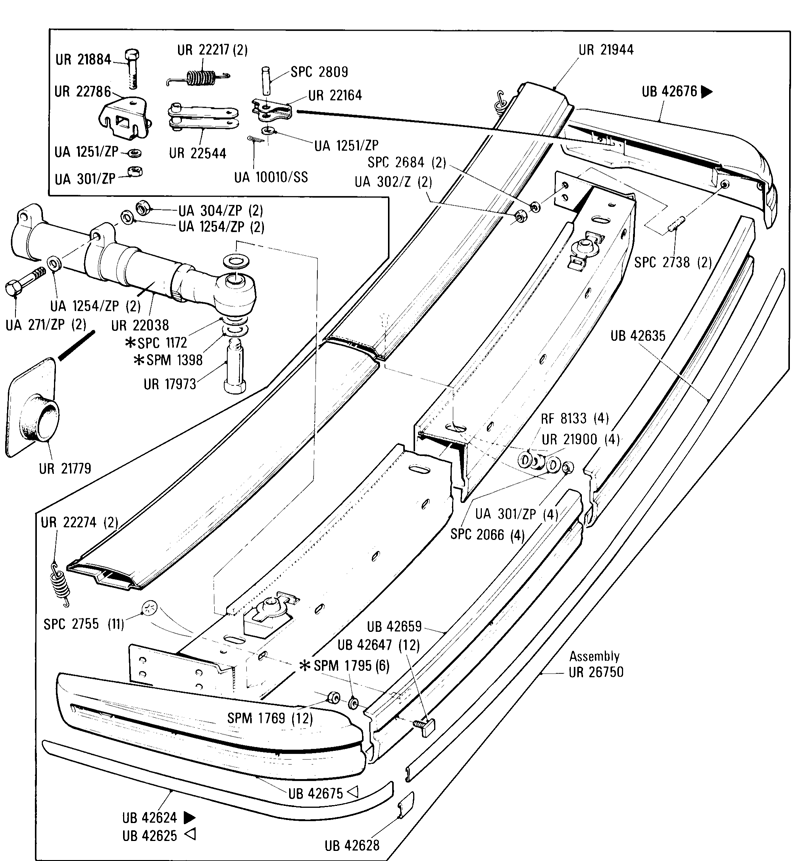

Visos Bentley Mulsanne SL dalys →Schema
Paspauskite schemą, kad padidintumėte, arba poziciją lentelėje.
Pozicijos ir kodai
| Nr. | Detalė / OEM kodas | Skelb. | Kaina nuo | |
|---|---|---|---|---|
| 1 | ASSY BUMPER REAR UR26750 | – | – | Ieškoti |
| 2 | ASSY RADIUS ARM REAR BUMPER SIDE MOUNTING UR22544 | – | – | Ieškoti |
| 3 | ASSY TOP FINISHER REAR BUMPER UR21944 | – | – | Ieškoti |
| 4 | BOLT .4375 UNF X 3.250 IN. LONG UA271ZP | – | – | Ieškoti |
| 5 | BOLT BUMPER BEAM UR17973 | – | – | Ieškoti |
| 6 | BOLT FRONT BUMPER SIDE MOUNTING UR21884 | – | – | Ieškoti |
| 7 | ENERGY ABSORBTION UNIT BUMPER UR22038 | – | – | Ieškoti |
| 8 | FINISHER REAR BUMPER CENTRE UB42635 | – | – | Ieškoti |
| 9 | FINISHER REAR BUMPER SIDE LH UB42625 | – | – | Ieškoti |
| 10 | FINISHER REAR BUMPER SIDE RH UB42624 | – | – | Ieškoti |
| 11 | JOINT PIECE BUMPER FINISHER UB42628 | – | – | Ieškoti |
| 12 | MOULDING REAR BUMPER CENTRE UB42659 | – | – | Ieškoti |
| 13 | MOULDING REAR BUMPER SIDE LH UB42675 | – | – | Ieškoti |
| 14 | MOULDING REAR BUMPER SIDE RH UB42676 | – | – | Ieškoti |
| 15 | NUT PLAIN .250 UNF UA301ZP | – | – | Ieškoti |
| 16 | NUT PLAIN .3125 UNF UA302Z | – | – | Ieškoti |
| 17 | NUT PLAIN .4375 UNF UA304ZP | – | – | Ieškoti |
| 18 | NUT RETAINING SPM1769 | – | – | Ieškoti |
| 19 | PIVOT BRACKET REAR BUMPER SIDE MOUNTING UR22164 | – | – | Ieškoti |
| 20 | PIVOT PIN SPC2809 | – | – | Ieškoti |
| 21 | PIVOT PLATE REAR BUMPER SIDE MOUNTING UR22786 | – | – | Ieškoti |
| 22 | RETAINING SPRING BUMPER TOP FINISHER UR22274 | – | – | Ieškoti |
| 23 | RUBBER WASHER UR21900 | – | – | Ieškoti |
| 24 | SEAL BUMPER MOUNTING TO BODY UR21779 | – | – | Ieškoti |
| 25 | SPLIT PIN .062 IN. X .375 IN. LONG UA10010SS | – | – | Ieškoti |
| 26 | SPRING REAR BUMPER SIDE MOUNTING UR22217 | – | – | Ieškoti |
| 27 | STUD .3125 UNF SPC2738 | – | – | Ieškoti |
| 28 | T STUD BUMPER FINISHER UB42647 | – | – | Ieškoti |
| 29 | WASHER SPC1172 | – | – | Ieškoti |
| 30 | WASHER SPM1398 | – | – | Ieškoti |
| 31 | WASHER SPC2066 | – | – | Ieškoti |
| 32 | WASHER SPM1795 | – | – | Ieškoti |
| 32 | WASHER SPM1796 | – | – | Ieškoti |
| 33 | WASHER RF8133 | – | – | Ieškoti |
| 34 | WASHER SPC2684 | – | – | Ieškoti |
| 35 | WASHER PLAIN .265 IN. I.D. UA1251ZP | – | – | Ieškoti |
| 36 | WASHER PLAIN .453 IN. I.D. UA1254ZP | – | – | Ieškoti |
| 37 | WASHER STARLOCK .250 IN. SPC2755 | – | – | Ieškoti |
