Bentley Mulsanne SL demister ducts & facia vents – schema ir OEM kodai
Automatic Air Conditioning System · 35 pozicijos · 0 skelbimų

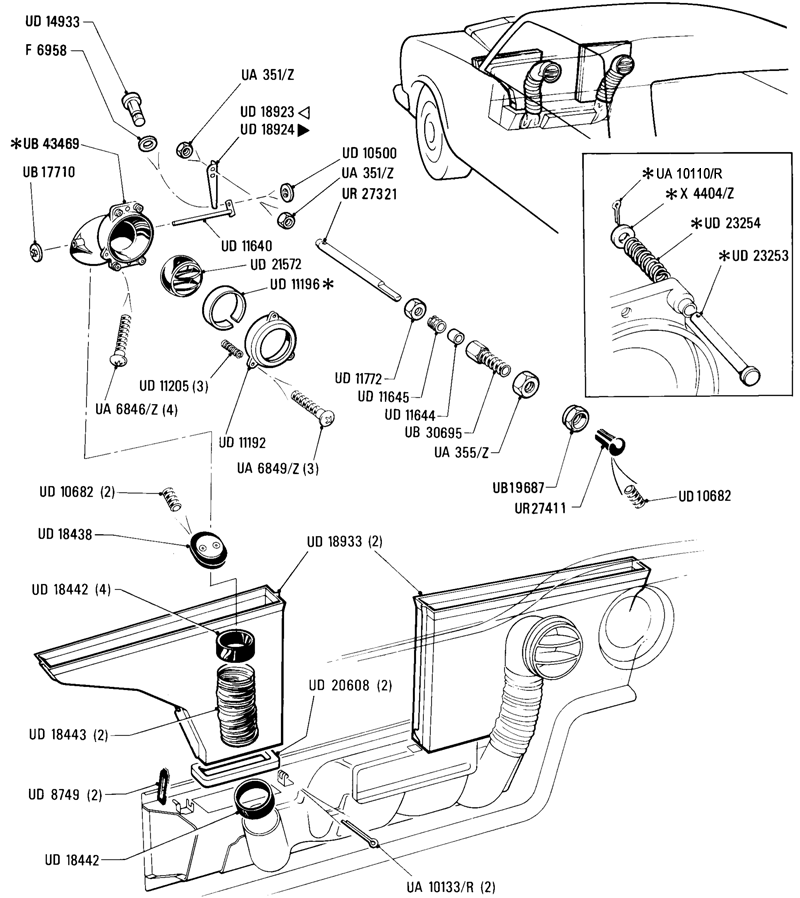

Visos Bentley Mulsanne SL dalys →Schema
Paspauskite schemą, kad padidintumėte, arba poziciją lentelėje.
Pozicijos ir kodai
| Nr. | Detalė / OEM kodas | Skelb. | Kaina nuo | |
|---|---|---|---|---|
| 1 | ADJUSTER SCREW BULLS EYE OPERATING ROD UD11645 | – | – | Ieškoti |
| 2 | ASSY DUCT DEMISTER UD18933 | – | – | Ieškoti |
| 3 | ASSY FLAP VALVE FACIA VENT UD18438 | – | – | Ieškoti |
| 4 | ASSY HOUSING BULLSEYE UB43469 | – | – | Ieškoti |
| 4 | ASSY HOUSING BULLSEYE UB43468 | – | – | Ieškoti |
| 5 | ASSY SPINDLE BULLS EYE FLAP UD11640 | – | – | Ieškoti |
| 6 | BRACKET CONTROL LINKAGE FACIA VENT LH UD18923 | – | – | Ieškoti |
| 7 | BRACKET CONTROL LINKAGE FACIA VENT RH UD18924 | – | – | Ieškoti |
| 8 | CLIP CABLES UD8749 | – | – | Ieškoti |
| 9 | CONTROL KNOB FACIA VENT UR27411 | – | – | Ieškoti |
| 10 | DEFLECTOR BULLS EYE FACIA VENT UD21572 | – | – | Ieškoti |
| 11 | FELT BEARING FACIA VENT UD21111 | – | – | Ieškoti |
| 11 | FELT BEARING FACIA VENT UD11196 | – | – | Ieškoti |
| 12 | FELT RING BULLS EYE OPERATING ROD UD11644 | – | – | Ieškoti |
| 13 | FLEXIBLE DUCTING FACIA VENT UD18443 | – | – | Ieškoti |
| 14 | GRUBSCREW 5BA X .250 IN. LONG UD10682 | – | – | Ieškoti |
| 15 | GUIDE PIN HOUSING BULLS EYE FACIA VENT UD23253 | – | – | Ieškoti |
| 16 | LOCK NUT ADJUSTER SCREW BULLS EYE OPERATING ROD UD11772 | – | – | Ieškoti |
| 17 | NUT BULLSEYE SPINDLE UB19687 | – | – | Ieškoti |
| 18 | NUT PLAIN LOCK .250 UNF UA351Z | – | – | Ieškoti |
| 19 | NUT PLAIN LOCK .500 UNF UA355Z | – | – | Ieškoti |
| 20 | PIVOT PIN SPINDLE BULLS EYE UD14933 | – | – | Ieškoti |
| 21 | RETAINER BULLS EYE VENT UD11192 | – | – | Ieškoti |
| 22 | RETAINING CLIP UD10500 | – | – | Ieškoti |
| 23 | SCREW PAN HEAD 4BA X .625 IN. LONG UA6846Z | – | – | Ieškoti |
| 24 | SCREW PAN HEAD 4BA X 1.000 IN. LONG UA6849Z | – | – | Ieškoti |
| 25 | SEAL DEMISTER DUCT TO DISTRIBUTION BOX UD20608 | – | – | Ieškoti |
| 26 | SLEEVE FLEXIBLE DUCTING FACIA VENT UD18442 | – | – | Ieškoti |
| 27 | SPINDLE BEARING BULLSEYE UB30695 | – | – | Ieškoti |
| 28 | SPINDLE OPERATING FLAP FACIA VENT UR27321 | – | – | Ieškoti |
| 29 | SPLIT PIN .062 IN. X .375 IN. LONG UA10110R | – | – | Ieškoti |
| 30 | SPLIT PIN .124 IN. X 1.000 IN. LONG UA10133R | – | – | Ieškoti |
| 31 | SPRING UD11205 | – | – | Ieškoti |
| 32 | SPRING HOUSING BULLS EYE FACIA VENT UD23254 | – | – | Ieškoti |
| 33 | WASHER F6958 | – | – | Ieškoti |
| 34 | WASHER PLAIN 2BA X4404Z | – | – | Ieškoti |
| 35 | WASHER STARLOCK .125 IN. NOMINAL UB17710 | – | – | Ieškoti |
