Bentley Mulsanne SL foot pedal, lever & pivot – schema ir OEM kodai
Hydraulics & Braking System · 30 pozicijų · 0 skelbimų

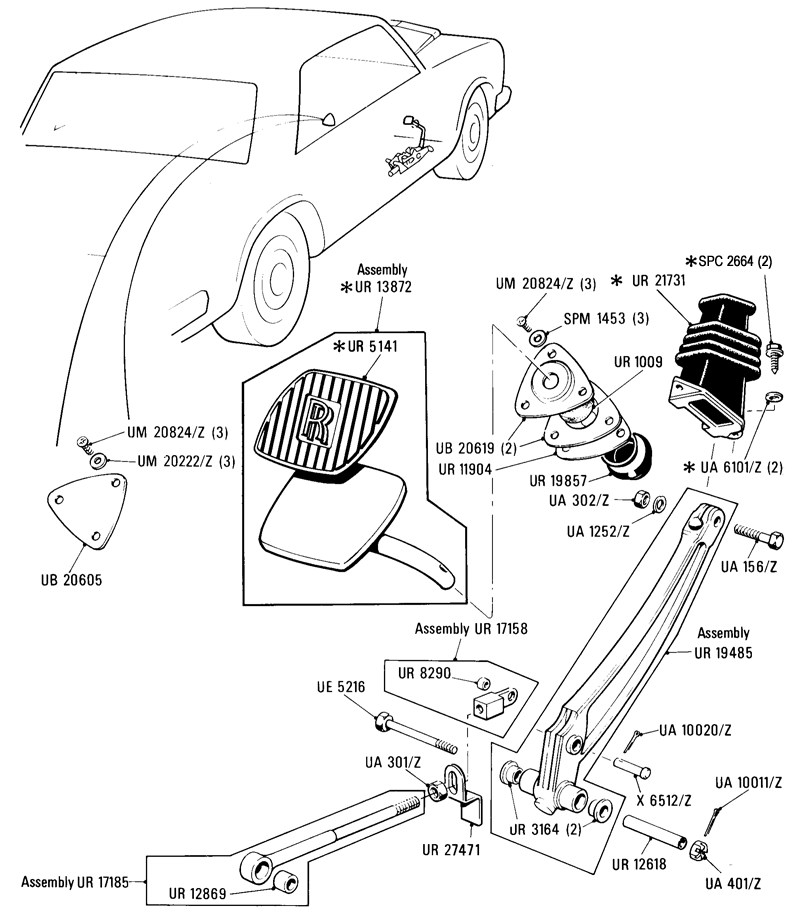

Visos Bentley Mulsanne SL dalys →Schema
Paspauskite schemą, kad padidintumėte, arba poziciją lentelėje.
Pozicijos ir kodai
| Nr. | Detalė / OEM kodas | Skelb. | Kaina nuo | |
|---|---|---|---|---|
| 1 | ACTUATOR PLATE STOP LAMP SWITCH BRAKE ACTUATION MECHANISM UR27471 | – | – | Ieškoti |
| 2 | ASSY BRAKE LEVER UR19485 | – | – | Ieškoti |
| 3 | ASSY BRAKE PEDAL BENTLEY UR13873 | – | – | Ieškoti |
| 3 | ASSY BRAKE PEDAL ROLLS-ROYCE UR13872 | – | – | Ieškoti |
| 4 | ASSY ROD BRAKE PEDAL TO ACTUATION MECHANISM UR17185 | – | – | Ieškoti |
| 5 | BLANKING PLATE BRAKE PEDAL TOEBOARD UB20605 | – | – | Ieškoti |
| 6 | BOLT .250 UNF X 3.100 IN. LONG UE5216 | – | – | Ieškoti |
| 7 | BOLT .3125 UNF X 1.125 IN. LONG UA156Z | – | – | Ieškoti |
| 8 | BUSH UR8290 | – | – | Ieškoti |
| 9 | BUSH BRAKE PEDAL ACTUATION ROD UR12869 | – | – | Ieškoti |
| 10 | BUSH BRAKE PEDAL LEVER UR3164 | – | – | Ieškoti |
| 11 | CLEVIS PIN .250 IN. DIAMETER X .990 IN. LONG X6512Z | – | – | Ieškoti |
| 12 | CONNECTOR BRAKE PEDAL ACTUATION ROD UR17158 | – | – | Ieškoti |
| 13 | DISTANCE TUBE BRAKE PEDAL PIVOT UR12618 | – | – | Ieškoti |
| 14 | FELT SEAL BRAKE PEDAL UR1009 | – | – | Ieškoti |
| 15 | HOUSING BRAKE PEDAL TOEBOARD UB20619 | – | – | Ieškoti |
| 16 | JOINT BRAKE PEDAL HOUSING UR11904 | – | – | Ieškoti |
| 17 | NUT CASTELLATED .250 UNF UA401Z | – | – | Ieškoti |
| 18 | NUT PLAIN .250 UNF UA301Z | – | – | Ieškoti |
| 19 | NUT PLAIN .3125 UNF UA302Z | – | – | Ieškoti |
| 20 | RUBBER PAD BRAKE PEDAL BENTLEY UR5140 | – | – | Ieškoti |
| 20 | RUBBER PAD BRAKE PEDAL ROLLS-ROYCE UR5141 | – | – | Ieškoti |
| 21 | SCREW PAN HEAD M5 X 12MM LONG UM20824Z | – | – | Ieškoti |
| 22 | SCREW TEKS SPC2664 | – | – | Ieškoti |
| 23 | SEAL BRAKE PEDAL LEVER UR21731 | – | – | Ieškoti |
| 24 | SEAL BRAKE PEDAL STEM UR19857 | – | – | Ieškoti |
| 25 | SPLIT PIN .062 IN. X .500 IN. LONG UA10011Z | – | – | Ieškoti |
| 26 | SPLIT PIN .093 IN. X .625 IN. LONG UA10020Z | – | – | Ieškoti |
| 27 | WASHER ARMREST DOOR SPM1453 | – | – | Ieškoti |
| 28 | WASHER PLAIN .328 IN. I.D. UA1252Z | – | – | Ieškoti |
| 29 | WASHER PLAIN M5 UM20222Z | – | – | Ieškoti |
| 30 | WASHER THICK .185 IN. I.D. UA6101Z | – | – | Ieškoti |
