Bentley Mulsanne SL bc post & cantrail – schema ir OEM kodai
Body · 37 pozicijos · 0 skelbimų

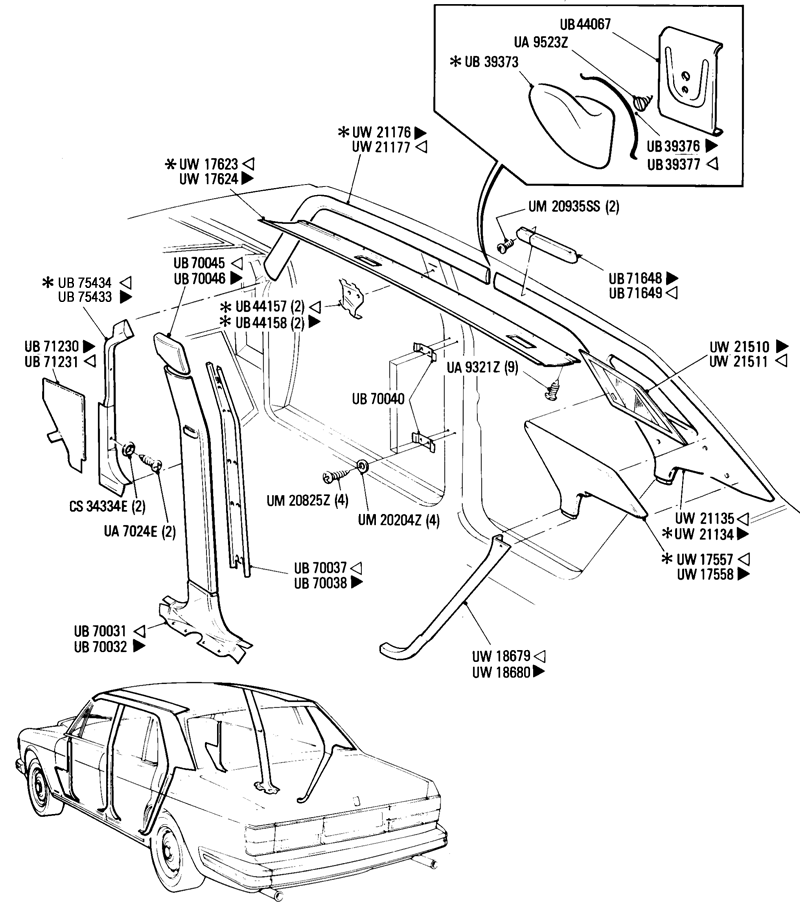

Visos Bentley Mulsanne SL dalys →Schema
Paspauskite schemą, kad padidintumėte, arba poziciją lentelėje.
Pozicijos ir kodai
| Nr. | Detalė / OEM kodas | Skelb. | Kaina nuo | |
|---|---|---|---|---|
| 1 | ASSY CARPET PANEL A POST LH UB71231 | – | – | Ieškoti |
| 2 | ASSY CARPET PANEL A POST RH UB71230 | – | – | Ieškoti |
| 3 | ASSY COAT HOOK BEIGE UB39373 | – | – | Ieškoti |
| 3 | ASSY COAT HOOK BLACK UB39374 | – | – | Ieškoti |
| 4 | ASSY COVER TRIM BC POST UPPER LH UB70045 | – | – | Ieškoti |
| 5 | ASSY COVER TRIM BC POST UPPER RH UB70046 | – | – | Ieškoti |
| 6 | ASSY DUCHESS STRAP LH UB71649 | – | – | Ieškoti |
| 7 | ASSY DUCHESS STRAP RH UB71648 | – | – | Ieškoti |
| 8 | ASSY PANEL BC POST DRAUGHT WELT LH UB70037 | – | – | Ieškoti |
| 9 | ASSY PANEL BC POST DRAUGHT WELT RH UB70038 | – | – | Ieškoti |
| 10 | ASSY TRIM A POST LOWER LH UB75432 | – | – | Ieškoti |
| 10 | ASSY TRIM A POST LOWER LH UB75434 | – | – | Ieškoti |
| 11 | ASSY TRIM A POST LOWER RH UB75431 | – | – | Ieškoti |
| 11 | ASSY TRIM A POST LOWER RH UB75433 | – | – | Ieškoti |
| 12 | ASSY TRIM A POST UPPER LH LWB UW21213 | – | – | Ieškoti |
| 12 | ASSY TRIM A POST UPPER LH LWB UW21215 | – | – | Ieškoti |
| 12 | ASSY TRIM A POST UPPER LH LWB UW21211 | – | – | Ieškoti |
| 12 | ASSY TRIM A POST UPPER LH LWB UW21209 | – | – | Ieškoti |
| 12 | ASSY TRIM A POST UPPER LH SWB UW21181 | – | – | Ieškoti |
| 12 | ASSY TRIM A POST UPPER LH SWB UW21183 | – | – | Ieškoti |
| 12 | ASSY TRIM A POST UPPER LH SWB UW21177 | – | – | Ieškoti |
| 12 | ASSY TRIM A POST UPPER LH SWB UW21179 | – | – | Ieškoti |
| 13 | ASSY TRIM A POST UPPER RH LWB UW21210 | – | – | Ieškoti |
| 13 | ASSY TRIM A POST UPPER RH LWB UW21212 | – | – | Ieškoti |
| 13 | ASSY TRIM A POST UPPER RH LWB UW21214 | – | – | Ieškoti |
| 13 | ASSY TRIM A POST UPPER RH LWB UW21216 | – | – | Ieškoti |
| 13 | ASSY TRIM A POST UPPER RH SWB UW21176 | – | – | Ieškoti |
| 13 | ASSY TRIM A POST UPPER RH SWB UW21182 | – | – | Ieškoti |
| 13 | ASSY TRIM A POST UPPER RH SWB UW21180 | – | – | Ieškoti |
| 13 | ASSY TRIM A POST UPPER RH SWB UW21178 | – | – | Ieškoti |
| 14 | ASSY TRIM D POST LOWER LH UW18679 | – | – | Ieškoti |
| 15 | ASSY TRIM D POST LOWER RH UW18680 | – | – | Ieškoti |
| 16 | ASSY TRIM REAR QUARTER PANEL LH UW21135 | – | – | Ieškoti |
| 16 | ASSY TRIM REAR QUARTER PANEL LH UW21137 | – | – | Ieškoti |
| 16 | ASSY TRIM REAR QUARTER PANEL LH UW21139 | – | – | Ieškoti |
| 16 | ASSY TRIM REAR QUARTER PANEL LH UW21141 | – | – | Ieškoti |
| 17 | ASSY TRIM REAR QUARTER PANEL RH UW21138 | – | – | Ieškoti |
| 17 | ASSY TRIM REAR QUARTER PANEL RH UW21136 | – | – | Ieškoti |
| 17 | ASSY TRIM REAR QUARTER PANEL RH UW21140 | – | – | Ieškoti |
| 17 | ASSY TRIM REAR QUARTER PANEL RH UW21134 | – | – | Ieškoti |
| 18 | ASSY TRIM SHOULDER PAD REAR QUARTER LH UW17563 | – | – | Ieškoti |
| 18 | ASSY TRIM SHOULDER PAD REAR QUARTER LH UW17561 | – | – | Ieškoti |
| 18 | ASSY TRIM SHOULDER PAD REAR QUARTER LH UW17559 | – | – | Ieškoti |
| 18 | ASSY TRIM SHOULDER PAD REAR QUARTER LH UW17557 | – | – | Ieškoti |
| 19 | ASSY TRIM SHOULDER PAD REAR QUARTER RH UW17560 | – | – | Ieškoti |
| 19 | ASSY TRIM SHOULDER PAD REAR QUARTER RH UW17558 | – | – | Ieškoti |
| 19 | ASSY TRIM SHOULDER PAD REAR QUARTER RH UW17562 | – | – | Ieškoti |
| 19 | ASSY TRIM SHOULDER PAD REAR QUARTER RH UW17564 | – | – | Ieškoti |
| 20 | ASSY TRIM SIDE HEADER PANEL LH LWB UW17635 | – | – | Ieškoti |
| 20 | ASSY TRIM SIDE HEADER PANEL LH LWB UW17633 | – | – | Ieškoti |
| 20 | ASSY TRIM SIDE HEADER PANEL LH LWB UW17637 | – | – | Ieškoti |
| 20 | ASSY TRIM SIDE HEADER PANEL LH LWB UW17631 | – | – | Ieškoti |
| 20 | ASSY TRIM SIDE HEADER PANEL LH SWB UW17629 | – | – | Ieškoti |
| 20 | ASSY TRIM SIDE HEADER PANEL LH SWB UW17627 | – | – | Ieškoti |
| 20 | ASSY TRIM SIDE HEADER PANEL LH SWB UW17623 | – | – | Ieškoti |
| 20 | ASSY TRIM SIDE HEADER PANEL LH SWB UW17625 | – | – | Ieškoti |
| 21 | ASSY TRIM SIDE HEADER PANEL RH LWB UW17632 | – | – | Ieškoti |
| 21 | ASSY TRIM SIDE HEADER PANEL RH LWB UW17634 | – | – | Ieškoti |
| 21 | ASSY TRIM SIDE HEADER PANEL RH LWB UW17636 | – | – | Ieškoti |
| 21 | ASSY TRIM SIDE HEADER PANEL RH LWB UW17638 | – | – | Ieškoti |
| 21 | ASSY TRIM SIDE HEADER PANEL RH SWB UW17630 | – | – | Ieškoti |
| 21 | ASSY TRIM SIDE HEADER PANEL RH SWB UW17628 | – | – | Ieškoti |
| 21 | ASSY TRIM SIDE HEADER PANEL RH SWB UW17626 | – | – | Ieškoti |
| 21 | ASSY TRIM SIDE HEADER PANEL RH SWB UW17624 | – | – | Ieškoti |
| 22 | ASSY VANITY MIRROR REAR QUARTER LH UW21511 | – | – | Ieškoti |
| 23 | ASSY VANITY MIRROR REAR QUARTER RH UW21510 | – | – | Ieškoti |
| 24 | MOUNTING BRACKET BC POST TRIM UPPER UB38028 | – | – | Ieškoti |
| 25 | PANEL BC POST TRIM LOWER LH UB70031 | – | – | Ieškoti |
| 26 | PANEL BC POST TRIM LOWER RH UB70032 | – | – | Ieškoti |
| 27 | RETAINER BC POST TRIM UPPER UB38027 | – | – | Ieškoti |
| 27 | RETAINER TRIM COVER BC POST UPPER LH UB44157 | – | – | Ieškoti |
| 24 | RETAINER TRIM COVER BC POST UPPER RH UB44158 | – | – | Ieškoti |
| 28 | SCREW CSK HEAD M5 X 20MM LONG UM20935SS | – | – | Ieškoti |
| 29 | SCREW FLANGE HEAD NO.8 X .500 IN. LONG UA9321Z | – | – | Ieškoti |
| 30 | SCREW PAN HEAD M5 X 16MM LONG UM20825Z | – | – | Ieškoti |
| 31 | SCREW PAN HEAD TEKS NO.10 X .750 IN. LONG UA9523Z | – | – | Ieškoti |
| 32 | SCREW RAISED HEAD NO.6 X .750 IN. LONG UA7024E | – | – | Ieškoti |
| 33 | SLEEVE COAT HOOK BEIGE UB39376 | – | – | Ieškoti |
| 34 | SLEEVE COAT HOOK BLACK UB39377 | – | – | Ieškoti |
| 35 | TRIM PLATE COATHOOK CANTRAIL UB44067 | – | – | Ieškoti |
| 36 | WASHER CUP NO.6 CS34334E | – | – | Ieškoti |
| 37 | WASHER PLAIN M5 UM20204Z | – | – | Ieškoti |
