Bentley Continental R Le Mans rear quarter trim le mans – schema ir OEM kodai
Rear Quarter. 2 Door · 23 pozicijos · 0 skelbimų

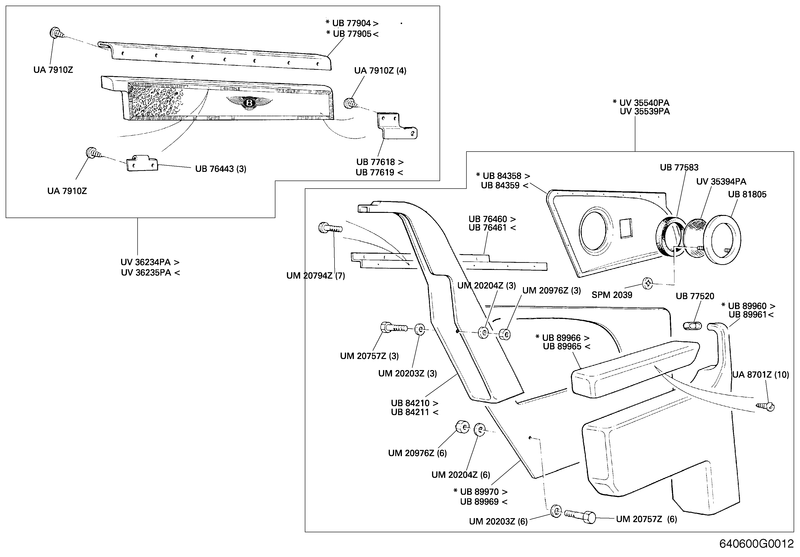

Visos Bentley Continental R Le Mans dalys →Schema
Paspauskite schemą, kad padidintumėte, arba poziciją lentelėje.
Pozicijos ir kodai
| Nr. | Detalė / OEM kodas | Skelb. | Kaina nuo | |
|---|---|---|---|---|
| 12 | ASSY BEZEL CO-AXIAL SPEAKER UB81805 | – | – | Ieškoti |
| 15 | ASSY INFILL PANEL ARMREST RECESS REAR QUARTER LH UB84359 | – | – | Ieškoti |
| 15 | ASSY INFILL PANEL ARMREST RECESS REAR QUARTER RH UB84358 | – | – | Ieškoti |
| 9 | ASSY PANEL REAR QUARTER TRIM LH UB89969 | – | – | Ieškoti |
| 9 | ASSY PANEL REAR QUARTER TRIM RH UB89970 | – | – | Ieškoti |
| 18 | ASSY TRIM ARMREST REAR QUARTER LH UB89965 | – | – | Ieškoti |
| 18 | ASSY TRIM ARMREST REAR QUARTER RH UB89966 | – | – | Ieškoti |
| 23 | ASSY TRIM GRAB HANDLE REAR QUARTER LH UB89961 | – | – | Ieškoti |
| 23 | ASSY TRIM GRAB HANDLE REAR QUARTER RH UB89960 | – | – | Ieškoti |
| 1 | ASSY TRIM REAR QUARTER LH UV35541PA | – | – | Ieškoti |
| 1 | ASSY TRIM REAR QUARTER LH UV35539PA | – | – | Ieškoti |
| 1 | ASSY TRIM REAR QUARTER RH UV35540PA | – | – | Ieškoti |
| 1 | ASSY TRIM REAR QUARTER RH UV35542PA | – | – | Ieškoti |
| 8 | ASSY WAISTRAIL FINISHER REAR QUARTER LH UB77905 | – | – | Ieškoti |
| 8 | ASSY WAISTRAIL FINISHER REAR QUARTER RH UB77904 | – | – | Ieškoti |
| 3 | ASSY WAISTRAIL REAR QUARTER LH UV36235PA | – | – | Ieškoti |
| 3 | ASSY WAISTRAIL REAR QUARTER RH UV36234PA | – | – | Ieškoti |
| 10 | BEZEL GRAB HANDLE DOOR & REAR QUARTER TRIM UB77520 | – | – | Ieškoti |
| 22 | BOLT M4 X 20MM LONG UM20757Z | – | – | Ieškoti |
| 7 | BRACKET MOUNTING REAR QUARTER WAISTRAIL UB76443 | – | – | Ieškoti |
| 14 | BRACKET UPPER MOUNTING REAR QUARTER LH UB76461 | – | – | Ieškoti |
| 14 | BRACKET UPPER MOUNTING REAR QUARTER RH UB76460 | – | – | Ieškoti |
| 5 | BRACKET WAISTRAIL FIXING REAR QUARTER LH UB77619 | – | – | Ieškoti |
| 5 | BRACKET WAISTRAIL FIXING REAR QUARTER RH UB77618 | – | – | Ieškoti |
| 11 | GASKET SPEAKER REAR QUARTER PANEL UB77583 | – | – | Ieškoti |
| 2 | GRILLE COAXIAL SPEAKER UV35394PA | – | – | Ieškoti |
| 19 | NUT PLAIN M5 UM20976Z | – | – | Ieškoti |
| 17 | SCREW PAN HEAD M4 X 10MM LONG UM20794Z | – | – | Ieškoti |
| 4 | SCREW PAN HEAD NO.6 X .375 IN. LONG UA7910Z | – | – | Ieškoti |
| 16 | TRIMMED ASSY SQUAB INFILL REAR QUARTER TRIM LH UB84211 | – | – | Ieškoti |
| 16 | TRIMMED ASSY SQUAB INFILL REAR QUARTER TRIM RH UB84210 | – | – | Ieškoti |
| 21 | WASHER PLAIN M4 UM20203Z | – | – | Ieškoti |
| 20 | WASHER PLAIN M5 UM20204Z | – | – | Ieškoti |
| 13 | WASHER STARLOCK 3MM NOMINAL SPM2039 | – | – | Ieškoti |
| 24 | WOODSCREW ROUND HEAD NO.8 X .375 IN. LONG UA8701Z | – | – | Ieškoti |
