Bentley Continental R Le Mans luggage compartment carpet panels & fittings le mans – schema ir OEM kodai

Luggage Compartment · 43 pozicijos · 0 skelbimų

Visos Bentley Continental R Le Mans dalys →

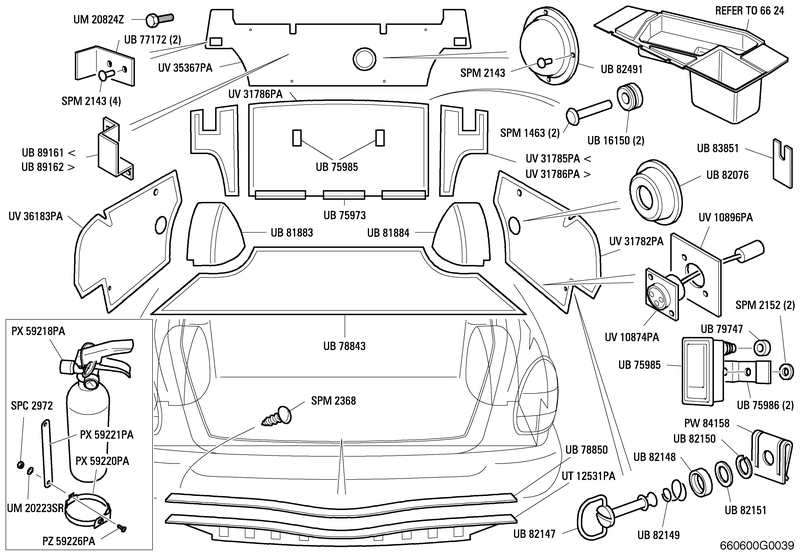

Schema

Paspauskite schemą, kad padidintumėte, arba poziciją lentelėje.

Pozicijos ir kodai

Nr.	Detalė / OEM kodas	Skelb.	Kaina nuo
25	ASSY CARPET BOOT FLOOR UB78843	–	–	Ieškoti
16	ASSY CARPET BOOT SIDE LH UV36183PA	–	–	Ieškoti
17	ASSY CARPET BOOT SIDE RH UV31782PA	–	–	Ieškoti
34	ASSY FINISHER BOOT RAIL UT12531PA	–	–	Ieškoti
22	ASSY PANEL FUEL TANK BOOT UV35367PA	–	–	Ieškoti
21	ASSY PANEL FUEL TANK ICE EQUIPMENT UV31768PA	–	–	Ieškoti
18	ASSY TRIM INFILL PANEL FUEL TANK BOOT LH UV31785PA	–	–	Ieškoti
19	ASSY TRIM INFILL PANEL FUEL TANK BOOT RH UV31786PA	–	–	Ieškoti
15	ASSY TRIM SWITCH SHROUD UB82076	–	–	Ieškoti
9	ASSY TRIMMED FLAP BOOT HINGE UB83851	–	–	Ieškoti
2	BLIND RIVET .125 IN. SPM2143	–	–	Ieškoti
8	BLIND RIVET .125 IN. SPM2143	–	–	Ieškoti
7	BRACKET LOCATION BOOT SIDE PANELS UB77172	–	–	Ieškoti
12	BRACKET MOUNTING FLUSH SWELL LATCH UB75986	–	–	Ieškoti
23	CARPET WHEELARCH BOOT LH UB81883	–	–	Ieškoti
24	CARPET WHEELARCH BOOT RH UB81884	–	–	Ieškoti
4	CENTRE STUD CARPET FASTENER UB16150	–	–	Ieškoti
38	CLASP SPRING TRIMMED FIRE EXTINGUISHER MOUNTING PX59220PA	–	–	Ieškoti
14	CLIP RETAINING DZUS FASTENER PW84158	–	–	Ieškoti
1	COVER FUEL TANK SENDER UNIT UB82491	–	–	Ieškoti
32	FASTENER BONNET PAD SPM2368	–	–	Ieškoti
33	FINISHER BOOT RAIL MOULDING UB78850	–	–	Ieškoti
37	FIRE EXTINGUISHER POLISHED PX59218PA	–	–	Ieškoti
43	FLUSH SWELL LATCH TANK PANEL UB75985	–	–	Ieškoti
13	FLUSH SWELL LATCH TANK PANEL UB75985	–	–	Ieškoti
20	HINGE TANK PANEL TO BOOT FLOOR UB75973	–	–	Ieškoti
31	KIT CHARGING SOCKET & LOOM UV10874PA	–	–	Ieškoti
35	MOULDING RETAINER WARNING TRIANGLE LH UB89161	–	–	Ieškoti
36	MOULDING RETAINER WARNING TRIANGLE RH UB89162	–	–	Ieškoti
3	MOUNTING PLATE CHARGING SOCKET UV10896PA	–	–	Ieškoti
42	NUT SELF LOCKING M6 SPC2972	–	–	Ieškoti
39	PLATE STIFFENING FIRE EXTINGUISHER MOUNTING PX59221PA	–	–	Ieškoti
5	POP RIVET SPM1463	–	–	Ieškoti
29	RETAINER SPLIT RING 1/4 TURN FASTENER UB82150	–	–	Ieškoti
40	SCREW BUTTON HEAD M6 X 16MM LONG PZ59226PA	–	–	Ieškoti
6	SCREW PAN HEAD M5 X 12MM LONG UM20824Z	–	–	Ieškoti
11	SPACER SWELL LATCH UB79747	–	–	Ieškoti
28	SPRING EJECTOR 1/4 TURN FASTENER UB82149	–	–	Ieškoti
26	STUD BAIL TYPE 1/4 TURN FASTENER UB82147	–	–	Ieškoti
30	WASHER FLAT 1/4 TURN FASTENER UB82151	–	–	Ieškoti
27	WASHER NYLON CUPPED 1/4 TURN FASTENER UB82148	–	–	Ieškoti
41	WASHER PLAIN M6 UM20223SR	–	–	Ieškoti
10	WASHER STARLOCK SPM2152	–	–	Ieškoti
