Bentley Continental R Le Mans shell panels, front le mans – schema ir OEM kodai

Body Shell. Excl Body Panels · 47 pozicijos · 0 skelbimų

Visos Bentley Continental R Le Mans dalys →

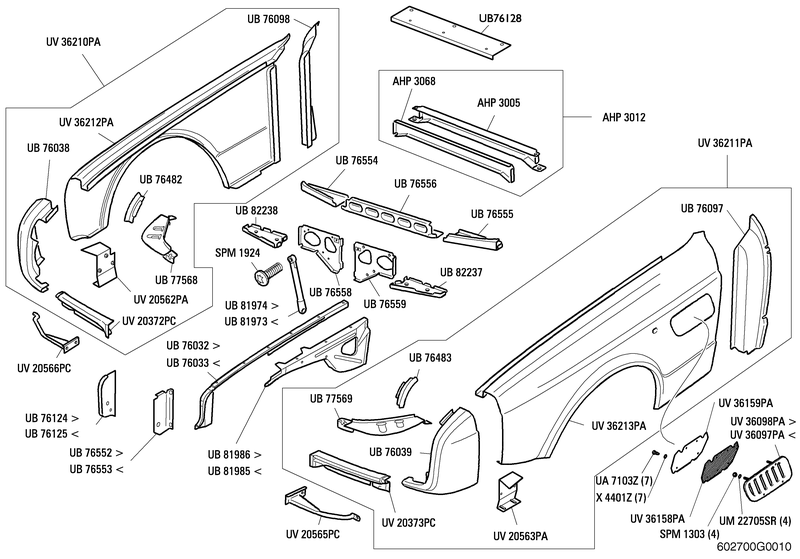

Schema

Paspauskite schemą, kad padidintumėte, arba poziciją lentelėje.

Pozicijos ir kodai

Nr.	Detalė / OEM kodas	Skelb.	Kaina nuo
31	ASSY CLOSING PLATE RADIATOR APERTURE LH UB76553	–	–	Ieškoti
32	ASSY CLOSING PLATE RADIATOR APERTURE RH UB76552	–	–	Ieškoti
48	ASSY CROSSMEMBER CLOSING AHP3068	–	–	Ieškoti
3	ASSY CROSSMEMBER FRONT LOWER AHP3012	–	–	Ieškoti
30	ASSY EXTENSION CLOSING PANEL RADIATOR LH UB76125	–	–	Ieškoti
28	ASSY EXTENSION CLOSING PANEL RADIATOR RH UB76124	–	–	Ieškoti
39	ASSY FRONT WING LH UV36211PA	–	–	Ieškoti
38	ASSY FRONT WING RH UV36210PA	–	–	Ieškoti
17	ASSY PANEL FRONT LAMP MOUNTING LH UB77569	–	–	Ieškoti
16	ASSY PANEL FRONT LAMP MOUNTING RH UB77568	–	–	Ieškoti
21	ASSY PANEL HEADLAMP EXTENSION FRONT WING LH UV20373PC	–	–	Ieškoti
20	ASSY PANEL HEADLAMP EXTENSION FRONT WING RH UV20372PC	–	–	Ieškoti
1	ASSY PANEL RADIATOR APERTURE UPPER UB76128	–	–	Ieškoti
29	ASSY REINFORCEMENT FRONT VALANCE LH UB81985	–	–	Ieškoti
27	ASSY REINFORCEMENT FRONT VALANCE RH UB81986	–	–	Ieškoti
14	ASSY STIFFENING PANEL FRONT END LH UB82237	–	–	Ieškoti
13	ASSY STIFFENING PANEL FRONT END RH UB82238	–	–	Ieškoti
23	ASSY STRUT FRONT END REINFORCEMENT LH UB81973	–	–	Ieškoti
22	ASSY STRUT FRONT END REINFORCEMENT RH UB81974	–	–	Ieškoti
37	ASSY SUPPORT BAR FRONT WING LH UV20565PC	–	–	Ieškoti
26	ASSY SUPPORT BAR FRONT WING RH UV20566PC	–	–	Ieškoti
41	BLACKOUT PANEL WING VENT UV36159PA	–	–	Ieškoti
12	CHANNEL FRONT DIAPHRAGM UPPER SIDE CENTRE UB76556	–	–	Ieškoti
8	CHANNEL FRONT DIAPHRAGM UPPER SIDE LH UB76555	–	–	Ieškoti
7	CHANNEL FRONT DIAPHRAGM UPPER SIDE RH UB76554	–	–	Ieškoti
33	CLOSING PANEL FRONT WING LH UB76097	–	–	Ieškoti
47	CLOSING PANEL FRONT WING RH UB76098	–	–	Ieškoti
40	MESH WING VENT UV36158PA	–	–	Ieškoti
36	MOUNTING BRACKET FRONT BUMPER SIDE LH UV20563PB	–	–	Ieškoti
11	MOUNTING BRACKET FRONT BUMPER SIDE RH UV20562PA	–	–	Ieškoti
43	NUT NYLOC M5 X 0.8 SPM1303	–	–	Ieškoti
4	PANEL CLOSING CROSSMEMBER AHP3005	–	–	Ieškoti
19	PANEL DIAPHRAGM SIDE RADIATOR APERTURE LH UB76559	–	–	Ieškoti
18	PANEL DIAPHRAGM SIDE RADIATOR APERTURE RH UB76558	–	–	Ieškoti
25	PANEL EXTENSION FRONT VALANCE LH UB76033	–	–	Ieškoti
24	PANEL EXTENSION FRONT VALANCE RH UB76032	–	–	Ieškoti
10	PANEL FILLER GUTTER BONNET FRONT LH UB76483	–	–	Ieškoti
9	PANEL FILLER GUTTER BONNET FRONT RH UB76482	–	–	Ieškoti
34	PANEL FRONT WING LH UV36213PA	–	–	Ieškoti
35	PANEL FRONT WING RH UV36212PA	–	–	Ieškoti
6	PANEL NOSE FRONT WING LH UB76039	–	–	Ieškoti
5	PANEL NOSE FRONT WING RH UB76038	–	–	Ieškoti
45	SCREW FLANGE HEAD NO.4 X .500 IN. LONG UA7103Z	–	–	Ieškoti
15	SCREW TORX T50 HEAD M10 X 25MM LONG SPM1924	–	–	Ieškoti
42	VENT FRONT WING LH UV36097PA	–	–	Ieškoti
42	VENT FRONT WING RH UV36098PA	–	–	Ieškoti
46	WASHER PLAIN 5BA X4401Z	–	–	Ieškoti
44	WASHER PLAIN M5 UM22705SR	–	–	Ieškoti
