Bentley Continental R Le Mans rear bumper le mans – schema ir OEM kodai

Bumpers · 40 pozicijų · 0 skelbimų

Visos Bentley Continental R Le Mans dalys →

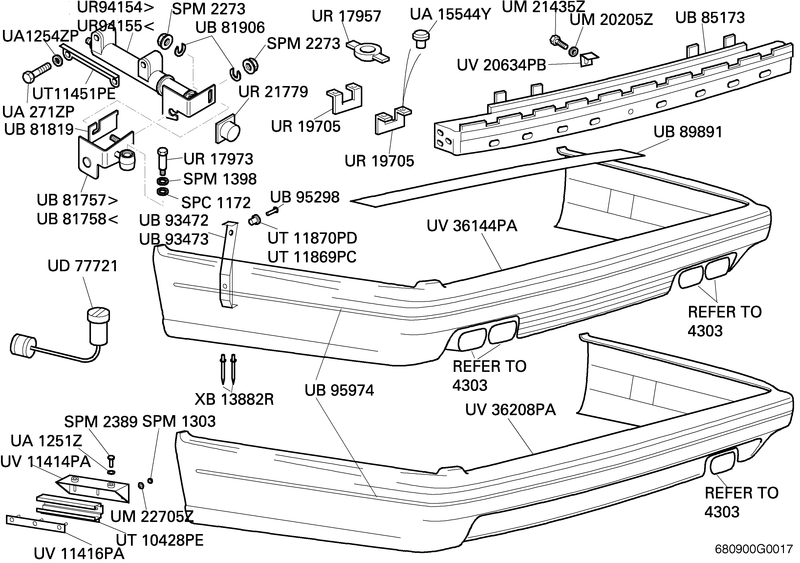

Schema

Paspauskite schemą, kad padidintumėte, arba poziciją lentelėje.

Pozicijos ir kodai

Nr.	Detalė / OEM kodas	Skelb.	Kaina nuo
34	ASSY BEAM BUMPER REAR UB85173	–	–	Ieškoti
3	ASSY ENERGY ABSORBING UNIT REAR BUMPER LH UR94155	–	–	Ieškoti
2	ASSY ENERGY ABSORBING UNIT REAR BUMPER RH UR94154	–	–	Ieškoti
8	ASSY FIXING BRACKET REAR BUMPER SIDE UV11414PA	–	–	Ieškoti
25	ASSY MOUNTING BRACKET BUMPER BEAM LH UB81757	–	–	Ieškoti
26	ASSY MOUNTING BRACKET BUMPER BEAM RH UB81758	–	–	Ieškoti
4	ASSY STUD PLATE REAR BUMPER SIDE FIXING UV11416PA	–	–	Ieškoti
16	ASSY TOP FINISHER BUMPER REAR UB89891	–	–	Ieškoti
22	BOBBIN SIDE MOUNTING FRONT BUMPER UT11870PD	–	–	Ieškoti
21	BOBBIN SIDE MOUNTING REAR BUMPER UT11869PC	–	–	Ieškoti
30	BOLT .4375 UNF X 3.250 IN. LONG UA271ZP	–	–	Ieškoti
20	BOLT BUMPER BEAM UR17973	–	–	Ieškoti
27	BRACKET CAPTIVE NUT TO BUMPER BEAM UR19705	–	–	Ieškoti
38	CAPTIVE NUT BUMPER BEAM UR17957	–	–	Ieškoti
7	INFILL FINISHER REAR BUMPER UB95974	–	–	Ieškoti
13	KIT REVERSING AID SENSORS UD77721	–	–	Ieškoti
15	MOULDING REAR BUMPER QUAD EXHAUST PIPES UV36144PA	–	–	Ieškoti
14	MOULDING REAR BUMPER TWIN EXHAUST PIPES UV36208PA	–	–	Ieškoti
24	MOUNTING BRACKET REAR BUMPER LH UB93473	–	–	Ieškoti
23	MOUNTING BRACKET REAR BUMPER RH UB93472	–	–	Ieškoti
5	MOUNTING SLIDE BUMPER (BODY MOUNTED) UT10428PE	–	–	Ieškoti
1	NUT COMBINATION M8 SPM2273	–	–	Ieškoti
32	NUT COMBINATION M8 SPM2273	–	–	Ieškoti
10	NUT NYLOC M5 X 0.8 SPM1303	–	–	Ieškoti
37	RIVET BRIV MUSHROOM HEAD .124 IN. X .290 IN. LONG UA15544Y	–	–	Ieškoti
12	RIVET POP DOMED HEAD .187 IN. X .500 IN. LONG XB13882R	–	–	Ieškoti
17	SCREW CSK SOCKET HEAD M8 X 45MM LONG UB95298	–	–	Ieškoti
28	SEAL BUMPER MOUNTING TO BODY UR21779	–	–	Ieškoti
36	SETSCREW M6 X 14MM LONG UM21435Z	–	–	Ieškoti
11	SETSCREW M6 X 20MM LONG SPM2389	–	–	Ieškoti
29	SHIM BUMPER ADJUSTMENT UB81819	–	–	Ieškoti
39	SHIM WASHER BUMPER MOUNTING UB81906	–	–	Ieškoti
33	SUPPORT BRACKET BUMPER MOULDING UV20634PB	–	–	Ieškoti
31	TAPPING PLATE BUMPER MOUNTING UT11451PE	–	–	Ieškoti
18	WASHER SPC1172	–	–	Ieškoti
19	WASHER SPM1398	–	–	Ieškoti
9	WASHER PLAIN .265 IN. I.D. UA1251Z	–	–	Ieškoti
40	WASHER PLAIN .453 IN. I.D. UA1254ZP	–	–	Ieškoti
6	WASHER PLAIN M5 UM22705Z	–	–	Ieškoti
35	WASHER PLAIN M6 UM20205Z	–	–	Ieškoti
