Bentley Continental R Le Mans front hub & axle pivot – schema ir OEM kodai
Front Suspension · 28 pozicijos · 0 skelbimų

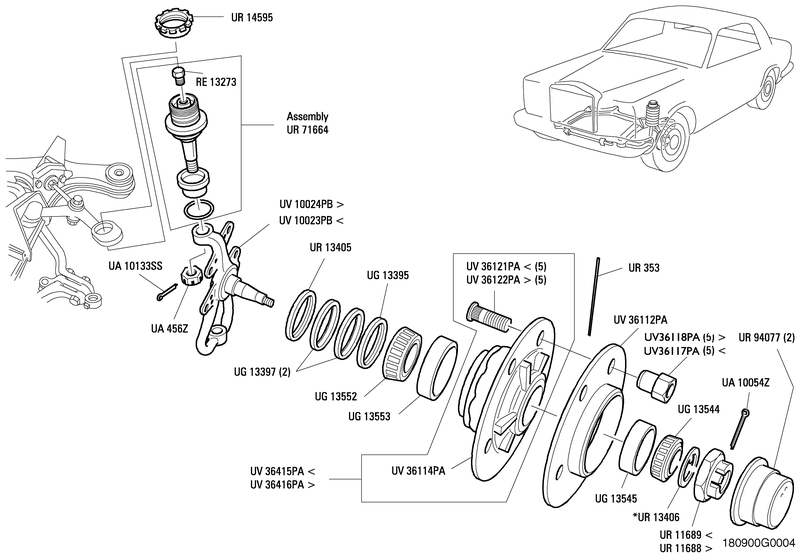

Visos Bentley Continental R Le Mans dalys →Schema
Paspauskite schemą, kad padidintumėte, arba poziciją lentelėje.
Pozicijos ir kodai
| Nr. | Detalė / OEM kodas | Skelb. | Kaina nuo | |
|---|---|---|---|---|
| 23 | ASSY BALL JOINT FRONT SUSPENSION UPPER UR71664 | – | – | Ieškoti |
| 12 | ASSY HUB FRONT LH UV36415PA | – | – | Ieškoti |
| 13 | ASSY HUB FRONT RH UV36416PA | – | – | Ieškoti |
| 2 | CONE WHEEL BEARING UG13544 | – | – | Ieškoti |
| 15 | CONE WHEEL BEARING UG13552 | – | – | Ieškoti |
| 28 | CUP WHEEL BEARING UG13545 | – | – | Ieškoti |
| 14 | CUP WHEEL BEARING UG13553 | – | – | Ieškoti |
| 18 | DISTANCE PIECE FRONT HUB UR13405 | – | – | Ieškoti |
| 5 | DUST COVER FRONT HUB UR94077 | – | – | Ieškoti |
| 9 | HUB FRONT SUSPENSION UV36114PA | – | – | Ieškoti |
| 1 | KEY WASHER FRONT HUB BEARING (.138 IN.) UR13406 | – | – | Ieškoti |
| 1 | KEY WASHER FRONT HUB BEARING (.140 IN.) UR13407 | – | – | Ieškoti |
| 19 | NUT CASTELLATED .625 UNF UA456Z | – | – | Ieškoti |
| 25 | NUT CASTELLATED BALL JOINT FRONT SUSPENSION UPPER UR14595 | – | – | Ieškoti |
| 4 | NUT HUB RETAINING FRONT LH UR11689 | – | – | Ieškoti |
| 3 | NUT HUB RETAINING FRONT RH UR11688 | – | – | Ieškoti |
| 7 | NUT ROAD WHEEL LH (DOMED) UR73857 | – | – | Ieškoti |
| 6 | NUT ROAD WHEEL RH (DOMED) UR73858 | – | – | Ieškoti |
| 17 | OIL SEAL FRONT HUB UG13397 | – | – | Ieškoti |
| 12 | PHONIC GEAR WHEEL FRONT HUB (ABS) UR26955 | – | – | Ieškoti |
| 13 | PHONIC GEAR WHEEL FRONT HUB (ABS) UR26955 | – | – | Ieškoti |
| 24 | PLUG BLANKING 1/8 BSP RE13273 | – | – | Ieškoti |
| 16 | PROTECTOR OIL SEAL FRONT HUB UG13395 | – | – | Ieškoti |
| 8 | SEALING BAND AXLE PIVOT NUT UR353 | – | – | Ieškoti |
| 26 | SPACER ROAD WHEEL FRONT (12MM) UV36112PA | – | – | Ieškoti |
| 22 | SPLIT PIN .124 IN. X 1.000 IN. LONG UA10133SS | – | – | Ieškoti |
| 27 | SPLIT PIN .186 IN. X 1.625 IN. LONG UA10054Z | – | – | Ieškoti |
| 11 | STUD ROAD WHEEL LH (2.078 IN.) UV36121PA | – | – | Ieškoti |
| 10 | STUD ROAD WHEEL RH (2.078 IN.) UV36122PA | – | – | Ieškoti |
| 20 | UPRIGHT FRONT SUSPENSION LH UV10023PB | – | – | Ieškoti |
| 21 | UPRIGHT FRONT SUSPENSION RH UV10024PB | – | – | Ieškoti |
