Bentley Continental R Le Mans map sensor – schema ir OEM kodai
Engine Management · 14 pozicijų · 0 skelbimų

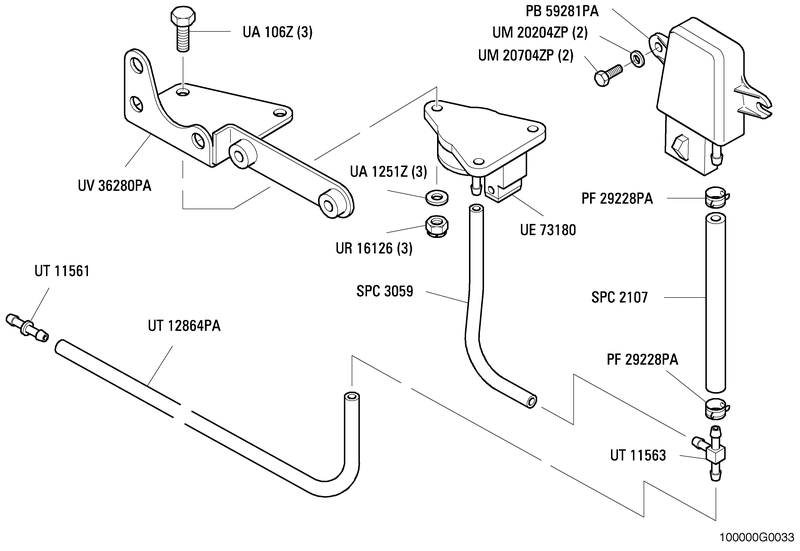

Visos Bentley Continental R Le Mans dalys →Schema
Paspauskite schemą, kad padidintumėte, arba poziciją lentelėje.
Pozicijos ir kodai
| Nr. | Detalė / OEM kodas | Skelb. | Kaina nuo | |
|---|---|---|---|---|
| 7 | ASSY MOUNTING BRACKET AIR PRESSURE SENSOR UV36280PA | – | – | Ieškoti |
| 8 | BOLT .250 UNF X 1.000 IN. LONG UA106Z | – | – | Ieškoti |
| 12 | CLIP HOSE 10.5/11.5 MM PF29228PA | – | – | Ieškoti |
| 13 | HOSE CANISTER TO UNDERWING SPC2107 | – | – | Ieškoti |
| 3 | HOSE PRESSURE SWITCH SPC3059 | – | – | Ieškoti |
| 1 | HOSE PRESSURE TRANSDUCER UT12864PA | – | – | Ieškoti |
| 2 | INLINE CONNECTOR VACUUM HOSE UT11561 | – | – | Ieškoti |
| 4 | NUT SELF LOCKING .250 UNF UR16126 | – | – | Ieškoti |
| 9 | SENSOR MANIFOLD ABSOLUTE PRESSURE PB59281PA | – | – | Ieškoti |
| 11 | SETSCREW M5 X 12MM LONG UM20704ZP | – | – | Ieškoti |
| 14 | T PIECE VACUUM HOSE UT11563 | – | – | Ieškoti |
| 6 | TRANSDUCER AIR PRESSURE UE73180 | – | – | Ieškoti |
| 5 | WASHER PLAIN .265 IN. I.D. UA1251Z | – | – | Ieškoti |
| 10 | WASHER PLAIN M5 UM20204ZP | – | – | Ieškoti |
