Bentley Azure T pipes & hoses, engine to tank – schema ir OEM kodai

Emission Control · 45 pozicijos · 0 skelbimų

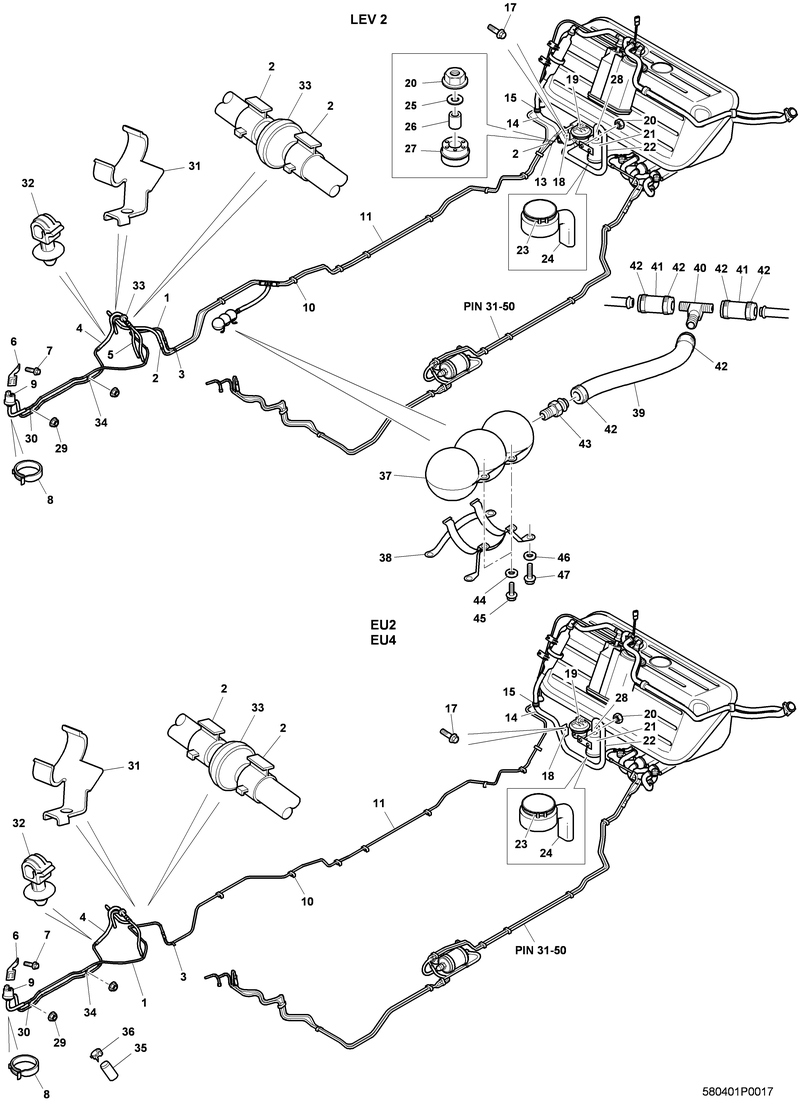

Schema

Paspauskite schemą, kad padidintumėte, arba poziciją lentelėje.

Pozicijos ir kodai

Nr.	Detalė / OEM kodas	Skelb.	Kaina nuo
5	ASSY HOSE VACUUM CLUSTER ENGINE LEAK DETECTION PUMP PB116562PA	–	–	Ieškoti
13	ASSY HOSE VACUUM PIPE TO LEAK DETECTION PUMP PB55645PA	–	–	Ieškoti
4	ASSY PIPE PURGE VALVE ENGINE PB116494PB	–	–	Ieškoti
1	ASSY PIPE VACUUM CLUSTER PURGE VALVE PB116492PB	–	–	Ieškoti
3	ASSY PURGE & VACUUM PIPES 3Z7201991	–	–	Ieškoti
18	BRACKET MOUNTING LEAK DETECTION PUMP PB55916PA	–	–	Ieškoti
6	BRACKET MOUNTING PURGE VALVE PB108387PD	–	–	Ieškoti
31	BRACKET SUPPORT PURGE LEAK DETECTION PUMP HOSES PF109523PA	–	–	Ieškoti
38	BRACKET VACUUM RESERVOIR SECONDARY AIR INJECTION 3Z0201505	–	–	Ieškoti
28	CLIP HOSE 21.5/23.0 MM PF29242PA	–	–	Ieškoti
21	FILTER LEAK DETECTION PUMP PB21406PA	–	–	Ieškoti
23	HOSE CLIP (COBRA 64/9) PB31171PA	–	–	Ieškoti
42	HOSE CLIP SPRING CLAMP C14 X 12 N90768301	–	–	Ieškoti
39	HOSE FUEL 240MM 3Z0201153	–	–	Ieškoti
41	HOSE FUEL 57 MM 3Z0201153B	–	–	Ieškoti
22	HOSE LEAK DETECTION PUMP TO FILTER PB56361PA	–	–	Ieškoti
14	HOSE SCRUBBER TO FILTER 3Z7201384	–	–	Ieškoti
14	HOSE SCRUBBER TO FILTER 3Z0201384	–	–	Ieškoti
14	HOSE SCRUBBER TO LEAK DETECTION PUMP PB114139PA	–	–	Ieškoti
14	HOSE SCRUBBER TO LEAK DETECTION PUMP PB115115PA	–	–	Ieškoti
19	LEAK DETECTION PUMP PB21405PC	–	–	Ieškoti
15	NOT SOLD SEPARATELY ZZZZZ	–	–	Ieškoti
20	NUT WHIZTITE M6 PB25054PA	–	–	Ieškoti
29	NUT WHIZTITE M6 PB25054PA	–	–	Ieškoti
33	ONE WAY VALVE 3Z0201523	–	–	Ieškoti
10	PIPE CLIP 2 X 8.00 RETAINED TYPE PC31719PA	–	–	Ieškoti
32	PIPE CLIP TRW PF32017PA	–	–	Ieškoti
11	PIPE PURGE CANISTER TO SOLENOID SWB PB116673PA	–	–	Ieškoti
30	PLATE CLAMP PIPES FRONT PB116496PA	–	–	Ieškoti
34	PLATE CLAMP PIPES REAR PB116497PA	–	–	Ieškoti
35	PLUG 022133369A	–	–	Ieškoti
9	PURGE VALVE ASSEMBLY PB100368PF	–	–	Ieškoti
27	RUBBER MOUNT PC21090PA	–	–	Ieškoti
45	SCREW M4 X 12 LONG HEX HD WHT003660	–	–	Ieškoti
17	SCREW PRESSURE PUMP MOUNTING PB23173PB	–	–	Ieškoti
7	SETSCREW FLANGED HEAD M6 X 8MM LONG PW30852PA	–	–	Ieškoti
47	SETSCREW HEX HEAD M8 X 16 WHT003663	–	–	Ieškoti
26	SPACER RUBBER MOUNT PC21094PA	–	–	Ieškoti
36	SPRING CLAMP B14 X 12 N90686701	–	–	Ieškoti
8	SPRING CLAMP B14 X 12 N90686701	–	–	Ieškoti
2	SPRING CLAMP B14 X 12 N90686701	–	–	Ieškoti
43	STRAIGHT CONNECTOR 3Z0201831	–	–	Ieškoti
40	T PIECE VACUUM HOSE 3Z0201413	–	–	Ieškoti
37	VACUUM TANK 443131541	–	–	Ieškoti
25	WASHER PC21093PA	–	–	Ieškoti
44	WASHER M4 WHT003668	–	–	Ieškoti
46	WASHER PLAIN .328 IN. I.D. WHT002850	–	–	Ieškoti
24	WATERSHIELD LEAK DETECTION PUMP FILTER PB27312PB	–	–	Ieškoti
