Bentley Azure T interior trim & fittings, 2 dr – schema ir OEM kodai
Rear Quarter. 2 Door · 34 pozicijos · 0 skelbimų

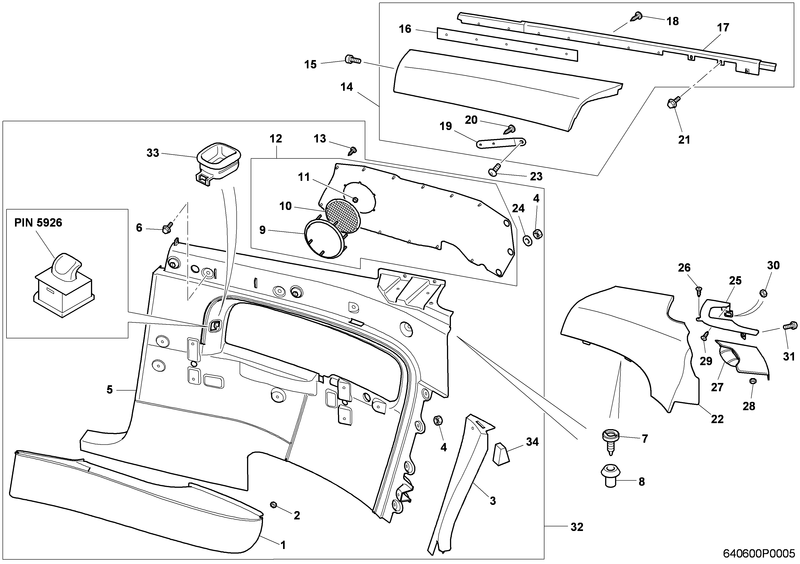

Schema
Paspauskite schemą, kad padidintumėte, arba poziciją lentelėje.
Pozicijos ir kodai
| Nr. | Detalė / OEM kodas | Skelb. | Kaina nuo | |
|---|---|---|---|---|
| 1 | ASSY ARMREST REAR QUARTER LH 3Z7864207 | – | – | Ieškoti |
| 1 | ASSY ARMREST REAR QUARTER RH 3Z7864208 | – | – | Ieškoti |
| 12 | ASSY INSERT PANEL REAR QUARTER QUILTED HIDE LH 3Z7867081A | – | – | Ieškoti |
| 12 | ASSY INSERT PANEL REAR QUARTER QUILTED HIDE RH 3Z7867082A | – | – | Ieškoti |
| 3 | ASSY REAR QUARTER EXTENSION LH 3Z7863171 | – | – | Ieškoti |
| 3 | ASSY REAR QUARTER EXTENSION RH 3Z7863172 | – | – | Ieškoti |
| 25 | ASSY SUPPORT C FLAP LH PN116989PA | – | – | Ieškoti |
| 25 | ASSY SUPPORT C FLAP RH PN116990PA | – | – | Ieškoti |
| 22 | ASSY TRIM CORNER PANEL REAR QUARTER LH PQ114795PA | – | – | Ieškoti |
| 22 | ASSY TRIM CORNER PANEL REAR QUARTER RH PQ114800PA | – | – | Ieškoti |
| 32 | ASSY TRIM PANEL REAR QUARTER QUILTED HIDE LH 3Z7867043B | – | – | Ieškoti |
| 32 | ASSY TRIM PANEL REAR QUARTER QUILTED HIDE RH 3Z7867044B | – | – | Ieškoti |
| 27 | ASSY TRIM SEATBELT COVER REAR SEAT LH PW114629PA | – | – | Ieškoti |
| 27 | ASSY TRIM SEATBELT COVER REAR SEAT RH PW114594PA | – | – | Ieškoti |
| 14 | ASSY WAISTRAIL REAR QUARTER LH 3Z7867041 | – | – | Ieškoti |
| 14 | ASSY WAISTRAIL REAR QUARTER RH 3Z7867042 | – | – | Ieškoti |
| 33 | BEZEL SINGLE SWITCH 3Z7837031 | – | – | Ieškoti |
| 9 | BEZEL SPEAKER CHROMED REAR QUARTER PQ116460PA | – | – | Ieškoti |
| 17 | BLACKWARE REAR QUARTER WAISTRAIL 3Z7854707 | – | – | Ieškoti |
| 17 | BLACKWARE REAR QUARTER WAISTRAIL 3Z7854708 | – | – | Ieškoti |
| 19 | BRACKET WAISTRAIL REAR QUARTER PQ116123PA | – | – | Ieškoti |
| 34 | FOAM SPACER REAR QUARTER EXTENSION 3Z7863568 | – | – | Ieškoti |
| 16 | INSEAL X 25MM X 1.5MM X 4.8M LONG UB75620 | – | – | Ieškoti |
| 5 | MOULDING TRIM PANEL REAR QUARTER LH 3Z7867377 | – | – | Ieškoti |
| 5 | MOULDING TRIM PANEL REAR QUARTER RH 3Z7867378 | – | – | Ieškoti |
| 28 | NUT HEX FLANGE M6 N90215801 | – | – | Ieškoti |
| 4 | NUT HEXAGON FLANGE M5 WHT003528 | – | – | Ieškoti |
| 30 | NUT PLAIN M5 UM20976Z | – | – | Ieškoti |
| 2 | NUT WHIZTITE M5 X 0.8 PT24658PA | – | – | Ieškoti |
| 18 | SCREW .112 DIA X .375 WHT003451 | – | – | Ieškoti |
| 6 | SCREW FLANGE HEAD M6 X14MM LONG PF22518PA | – | – | Ieškoti |
| 13 | SCREW FLANGE HEAD NO.8 X .500 IN. LONG UA9321Z | – | – | Ieškoti |
| 21 | SCREW HEX SOCKET M4 X 12 N10621601 | – | – | Ieškoti |
| 15 | SCREW HEX SOCKET M4 X 12 N10621601 | – | – | Ieškoti |
| 26 | SCREW HEX SOCKET M4 X 8.5 N90999801 | – | – | Ieškoti |
| 29 | SCREW HEX SOCKET M6 X 12 N10406501 | – | – | Ieškoti |
| 31 | SCREW HEX SOCKET M6 X 12 N10406501 | – | – | Ieškoti |
| 23 | SETSCREW BUTTON HEAD M6 X 20MM LONG PP32605PA | – | – | Ieškoti |
| 10 | SPEAKER GRILLE REAR QUARTER ANTHRACITE PQ116459PAW43 | – | – | Ieškoti |
| 10 | SPEAKER GRILLE REAR QUARTER AUTUMN PQ116459PAT76 | – | – | Ieškoti |
| 10 | SPEAKER GRILLE REAR QUARTER BELUGA PQ116459PA4BH | – | – | Ieškoti |
| 10 | SPEAKER GRILLE REAR QUARTER BURGUNDY PQ116459PA52W | – | – | Ieškoti |
| 10 | SPEAKER GRILLE REAR QUARTER BURNT OAK PQ116459PA2BY | – | – | Ieškoti |
| 10 | SPEAKER GRILLE REAR QUARTER CASHEW BEIGE PQ116459PAV51 | – | – | Ieškoti |
| 10 | SPEAKER GRILLE REAR QUARTER COGNAC PQ116459PA1FT | – | – | Ieškoti |
| 10 | SPEAKER GRILLE REAR QUARTER COTSWOLD PQ116459PAT46 | – | – | Ieškoti |
| 10 | SPEAKER GRILLE REAR QUARTER CUMBRIAN GREEN PQ116459PAV50 | – | – | Ieškoti |
| 10 | SPEAKER GRILLE REAR QUARTER FIREGLOW PQ116459PA1LU | – | – | Ieškoti |
| 10 | SPEAKER GRILLE REAR QUARTER FRENCH NAVY PQ116459PAU95 | – | – | Ieškoti |
| 10 | SPEAKER GRILLE REAR QUARTER HOTSPUR PQ116459PA1BV | – | – | Ieškoti |
| 10 | SPEAKER GRILLE REAR QUARTER IMPERIAL BLUE PQ116459PAV66 | – | – | Ieškoti |
| 10 | SPEAKER GRILLE REAR QUARTER LINEN PQ116459PA51V | – | – | Ieškoti |
| 10 | SPEAKER GRILLE REAR QUARTER MAGNOLIA PQ116459PAAA8 | – | – | Ieškoti |
| 10 | SPEAKER GRILLE REAR QUARTER NAUTIC BLUE PQ116459PA1BM | – | – | Ieškoti |
| 10 | SPEAKER GRILLE REAR QUARTER NEWMARKET TAN PQ116459PAW09 | – | – | Ieškoti |
| 10 | SPEAKER GRILLE REAR QUARTER OATMEAL PQ116459PAT91 | – | – | Ieškoti |
| 10 | SPEAKER GRILLE REAR QUARTER PEACOCK PQ116459PAV69 | – | – | Ieškoti |
| 10 | SPEAKER GRILLE REAR QUARTER PORPOISE PQ116459PA1DR | – | – | Ieškoti |
| 10 | SPEAKER GRILLE REAR QUARTER PORTLAND PQ116459PA5BZ | – | – | Ieškoti |
| 10 | SPEAKER GRILLE REAR QUARTER REDWOOD PQ116459PAW26 | – | – | Ieškoti |
| 10 | SPEAKER GRILLE REAR QUARTER SADDLE PQ116459PA9AL | – | – | Ieškoti |
| 10 | SPEAKER GRILLE REAR QUARTER SAFFRON PQ116459PA6AZ | – | – | Ieškoti |
| 10 | SPEAKER GRILLE REAR QUARTER SAVANNAH PQ116459PA8AF | – | – | Ieškoti |
| 10 | SPEAKER GRILLE REAR QUARTER STRATOS PQ116459PAU49 | – | – | Ieškoti |
| 10 | SPEAKER GRILLE REAR QUARTER WINDSOR BLUE PQ116459PAW15 | – | – | Ieškoti |
| 8 | STUD HOLDER TRIM PANELS GREEN PP28903PB | – | – | Ieškoti |
| 7 | TRIM CLIP FIXED RED PP32162PA | – | – | Ieškoti |
| 24 | WASHER SPM1795 | – | – | Ieškoti |
| 11 | WASHER STARLOCK .062 IN. NOMINAL UB42377 | – | – | Ieškoti |
| 20 | WOODSCREW CSK HEAD NO.4 X .375 IN. LONG UA8003SC | – | – | Ieškoti |
