Bentley Azure T base frame mechanism, seat – schema ir OEM kodai
Seats Front · 32 pozicijos · 0 skelbimų

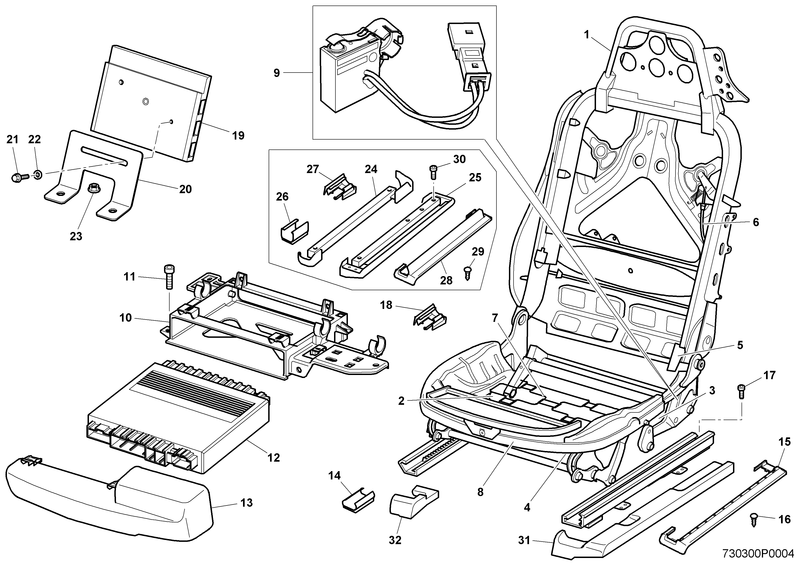

Schema
Paspauskite schemą, kad padidintumėte, arba poziciją lentelėje.
Pozicijos ir kodai
| Nr. | Detalė / OEM kodas | Skelb. | Kaina nuo | |
|---|---|---|---|---|
| 24 | ASSY ADAPTOR SEAT RAIL INBOARD LH 3Z7881201 | – | – | Ieškoti |
| 24 | ASSY ADAPTOR SEAT RAIL INBOARD RH 3Z7881202 | – | – | Ieškoti |
| 25 | ASSY ADAPTOR SEAT RAIL OUTBOARD LH 3Z7881201A | – | – | Ieškoti |
| 25 | ASSY ADAPTOR SEAT RAIL OUTBOARD RH 3Z7881202A | – | – | Ieškoti |
| 8 | ASSY CUSHION EXTENSION WITH MOTOR 3W3881374 | – | – | Ieškoti |
| 1 | ASSY SEAT MECHANISM DRIVER & PASSENGER LH 3Z7881681C | – | – | Ieškoti |
| 1 | ASSY SEAT MECHANISM DRIVER & PASSENGER RH 3Z7881682C | – | – | Ieškoti |
| 1 | ASSY SEAT MECHANISM PASSENGER PODS (NORTH AMERICA) 3Z7881682D | – | – | Ieškoti |
| 20 | BRACKET CONTROL MODULE PW116290PA | – | – | Ieškoti |
| 10 | BRACKET SEAT CONTROL MODULE FRONT LH 3W0959115B | – | – | Ieškoti |
| 10 | BRACKET SEAT CONTROL MODULE FRONT RH 3W0959116A | – | – | Ieškoti |
| 6 | CABLE SEAT SQUAB RELEASE LH 3W3881602 | – | – | Ieškoti |
| 6 | CABLE SEAT SQUAB RELEASE RH 3W3881603 | – | – | Ieškoti |
| 19 | CONTROL MODULE FRONT SEAT DRIVERS PW55147PA | – | – | Ieškoti |
| 13 | COVER CONTROL MODULE FRONT SEAT LH 3W0959509A | – | – | Ieškoti |
| 13 | COVER CONTROL MODULE FRONT SEAT RH 3W0959510A | – | – | Ieškoti |
| 26 | COVER SEAT RAIL INBOARD FRONT LH 3Z7881791 | – | – | Ieškoti |
| 14 | COVER SEAT RAIL INBOARD FRONT LH 3Z7881791 | – | – | Ieškoti |
| 14 | COVER SEAT RAIL INBOARD FRONT RH 3Z7881792 | – | – | Ieškoti |
| 26 | COVER SEAT RAIL INBOARD FRONT RH 3Z7881792 | – | – | Ieškoti |
| 18 | COVER SEAT RAIL INBOARD REAR LH 3Z7864451 | – | – | Ieškoti |
| 27 | COVER SEAT RAIL INBOARD REAR LH REST OF WORLD 3Z7881087 | – | – | Ieškoti |
| 18 | COVER SEAT RAIL INBOARD REAR RH 3Z7864452 | – | – | Ieškoti |
| 27 | COVER SEAT RAIL INBOARD REAR RH REST OF WORLD 3Z7881088 | – | – | Ieškoti |
| 15 | COVER SEAT RAIL OUTBOARD LH 3Z7864435 | – | – | Ieškoti |
| 28 | COVER SEAT RAIL OUTBOARD LH REST OF WORLD 3Z3867071 | – | – | Ieškoti |
| 15 | COVER SEAT RAIL OUTBOARD RH 3Z7864436 | – | – | Ieškoti |
| 28 | COVER SEAT RAIL OUTBOARD RH REST OF WORLD 3Z3867072 | – | – | Ieškoti |
| 12 | DRIVERS SEAT CONTROL MODULE WITH MASSAGE 3W0959760B06 | – | – | Ieškoti |
| 12 | DRIVERS SEAT CONTROL MODULE WITHOUT MASSAGE 3W0959760B05 | – | – | Ieškoti |
| 32 | EPP BLOCK INBOARD LH 3Z7863029 | – | – | Ieškoti |
| 32 | EPP BLOCK INBOARD RH 3Z7863030 | – | – | Ieškoti |
| 31 | EPP BLOCK OUTBOARD LH 3Z7863027 | – | – | Ieškoti |
| 31 | EPP BLOCK OUTBOARD RH 3Z7863028 | – | – | Ieškoti |
| 12 | FRONT PASSENGER SEAT CONTROL MODULE WITH MASSAGE WITH PODS 3W0959759B00E | – | – | Ieškoti |
| 12 | FRONT PASSENGER SEAT CONTROL MODULE WITH MASSAGE WITHOUT PODS 3W0959759B00C | – | – | Ieškoti |
| 12 | FRONT PASSENGER SEAT CONTROL MODULE WITHOUT MASSAGE WITH PODS 3W0959759B00D | – | – | Ieškoti |
| 12 | FRONT PASSENGER SEAT CONTROL MODULE WITHOUT MASSAGE WITHOUT PODS 3W0959759B00B | – | – | Ieškoti |
| 4 | MOTOR SEAT CUSHION TILT ADJUST LH 3W3959761B | – | – | Ieškoti |
| 4 | MOTOR SEAT CUSHION TILT ADJUST RH 3W3959762B | – | – | Ieškoti |
| 2 | MOTOR SEAT FORE AFT ADJUST LH 3W3959761 | – | – | Ieškoti |
| 2 | MOTOR SEAT FORE AFT ADJUST RH 3W3959762 | – | – | Ieškoti |
| 3 | MOTOR SEAT HEIGHT ADJUST LH 3W3959761A | – | – | Ieškoti |
| 3 | MOTOR SEAT HEIGHT ADJUST RH 3W3959762A | – | – | Ieškoti |
| 5 | MOTOR SEAT SQUAB ANGLE ADJUST LH 3W3959761C | – | – | Ieškoti |
| 5 | MOTOR SEAT SQUAB ANGLE ADJUST RH 3W3959762C | – | – | Ieškoti |
| 23 | NUT WHIZTITE M6 PB25054PA | – | – | Ieškoti |
| 16 | RETAINER COVER OUTBOARD 3W0881279 | – | – | Ieškoti |
| 29 | RETAINER COVER OUTBOARD 3W0881279 | – | – | Ieškoti |
| 11 | SCREW HEX SOCKET M5 X 12 N90944603 | – | – | Ieškoti |
| 17 | SCREW MULTI POINT HEAD M10 X 30 3Z7881078 | – | – | Ieškoti |
| 30 | SCREW MULTI POINT HEAD M10 X 65 3Z7881077 | – | – | Ieškoti |
| 21 | SETSCREW M6 X 12MM LONG UM21434Z | – | – | Ieškoti |
| 7 | SUSPENSION MAT FRONT SEAT 3W3881375 | – | – | Ieškoti |
| 9 | SWITCH SQUAB LOCK FRONT SEAT LH 3W3959763 | – | – | Ieškoti |
| 9 | SWITCH SQUAB LOCK FRONT SEAT RH 3W3959764 | – | – | Ieškoti |
| 22 | WASHER PLAIN M6 UM22706Z | – | – | Ieškoti |
