Bentley Azure T interior trim & waistrail – schema ir OEM kodai
Door Front · 39 pozicijos · 0 skelbimų

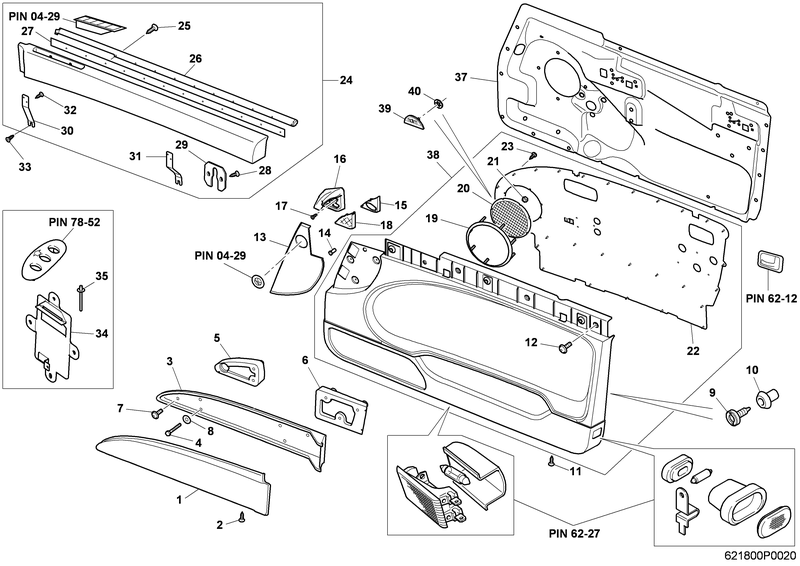

Schema
Paspauskite schemą, kad padidintumėte, arba poziciją lentelėje.
Pozicijos ir kodai
| Nr. | Detalė / OEM kodas | Skelb. | Kaina nuo | |
|---|---|---|---|---|
| 5 | ASSY ARMREST BRACKET TRIMMED FRONT LH PP115823PA | – | – | Ieškoti |
| 5 | ASSY ARMREST BRACKET TRIMMED FRONT RH PP115822PA | – | – | Ieškoti |
| 6 | ASSY ARMREST BRACKET TRIMMED REAR LH PP115827PA | – | – | Ieškoti |
| 6 | ASSY ARMREST BRACKET TRIMMED REAR RH PP115826PA | – | – | Ieškoti |
| 1 | ASSY ARMREST DOOR LH PP115301PA | – | – | Ieškoti |
| 1 | ASSY ARMREST DOOR RH PP115300PA | – | – | Ieškoti |
| 26 | ASSY BLACKWARE WAISTRAIL DOOR FRONT LH 3Z7853465 | – | – | Ieškoti |
| 26 | ASSY BLACKWARE WAISTRAIL DOOR FRONT RH 3Z7853466 | – | – | Ieškoti |
| 22 | ASSY DOOR INSERT PANEL PLAIN HIDE LH 3Z7867117 | – | – | Ieškoti |
| 22 | ASSY DOOR INSERT PANEL PLAIN HIDE RH 3Z7867118 | – | – | Ieškoti |
| 22 | ASSY DOOR INSERT PANEL QUILTED HIDE LH 3Z8867117 | – | – | Ieškoti |
| 22 | ASSY DOOR INSERT PANEL QUILTED HIDE RH 3Z8867118 | – | – | Ieškoti |
| 38 | ASSY DOOR TRIM PAD LH PP115831PA | – | – | Ieškoti |
| 38 | ASSY DOOR TRIM PAD RH PP115830PA | – | – | Ieškoti |
| 13 | ASSY TRIM QUARTER PANEL DOOR LH PP115847PA | – | – | Ieškoti |
| 13 | ASSY TRIM QUARTER PANEL DOOR RH PP115846PA | – | – | Ieškoti |
| 24 | ASSY WAISTRAIL DOOR FRONT LH 3Z7867101 | – | – | Ieškoti |
| 24 | ASSY WAISTRAIL DOOR FRONT RH 3Z7867102 | – | – | Ieškoti |
| 39 | BADGE NAIM SPEAKER GRILLE 3W4867932A | – | – | Ieškoti |
| 19 | BEZEL SPEAKER CHROMED 3Z0858053 | – | – | Ieškoti |
| 19 | BEZEL SPEAKER CHROMED PP100830PA | – | – | Ieškoti |
| 11 | BOLT FLANGE HEAD M5 X 10MM LONG PC24818PA | – | – | Ieškoti |
| 3 | BRACKET ARMREST LH PP115817PA | – | – | Ieškoti |
| 3 | BRACKET ARMREST RH PP115816PA | – | – | Ieškoti |
| 34 | BRACKET GARAGE DOOR OPENER 3Z3867075 | – | – | Ieškoti |
| 15 | CARRIER TWEETER MESH DOOR LH PP114951PA | – | – | Ieškoti |
| 15 | CARRIER TWEETER MESH DOOR RH PP114952PA | – | – | Ieškoti |
| 14 | FRICTION BUSH PLASTIC PW29919PB | – | – | Ieškoti |
| 20 | GRILLE SPEAKER ANTHRACITE 3Z5035409W43 | – | – | Ieškoti |
| 20 | GRILLE SPEAKER AUTUMN 3Z5035409T76 | – | – | Ieškoti |
| 20 | GRILLE SPEAKER BELUGA 3Z50354094BH | – | – | Ieškoti |
| 20 | GRILLE SPEAKER BURGUNDY 3Z503540952W | – | – | Ieškoti |
| 20 | GRILLE SPEAKER BURNT OAK 3Z50354092BY | – | – | Ieškoti |
| 20 | GRILLE SPEAKER CASHEW BEIGE 3Z5035409V51 | – | – | Ieškoti |
| 20 | GRILLE SPEAKER COGNAC 3Z50354091FT | – | – | Ieškoti |
| 20 | GRILLE SPEAKER COTSWOLD 3Z5035409T46 | – | – | Ieškoti |
| 20 | GRILLE SPEAKER CUMBRIAN GREEN 3Z5035409V50 | – | – | Ieškoti |
| 20 | GRILLE SPEAKER FIREGLOW 3Z50354091LU | – | – | Ieškoti |
| 20 | GRILLE SPEAKER FRENCH NAVY 3Z5035409U95 | – | – | Ieškoti |
| 20 | GRILLE SPEAKER HOTSPUR 3Z50354091BV | – | – | Ieškoti |
| 20 | GRILLE SPEAKER IMPERIAL BLUE 3Z5035409V66 | – | – | Ieškoti |
| 20 | GRILLE SPEAKER LINEN 3Z503540951V | – | – | Ieškoti |
| 20 | GRILLE SPEAKER MAGNOLIA 3Z5035409AA8 | – | – | Ieškoti |
| 20 | GRILLE SPEAKER NAUTIC BLUE 3Z50354091BM | – | – | Ieškoti |
| 20 | GRILLE SPEAKER NEWMARKET TAN 3Z5035409W09 | – | – | Ieškoti |
| 20 | GRILLE SPEAKER OATMEAL 3Z5035409T91 | – | – | Ieškoti |
| 20 | GRILLE SPEAKER PEACOCK 3Z5035409V69 | – | – | Ieškoti |
| 20 | GRILLE SPEAKER PORPOISE 3Z50354091DR | – | – | Ieškoti |
| 20 | GRILLE SPEAKER PORTLAND 3Z50354095BZ | – | – | Ieškoti |
| 20 | GRILLE SPEAKER REDWOOD 3Z5035409W26 | – | – | Ieškoti |
| 20 | GRILLE SPEAKER SADDLE 3Z50354099AL | – | – | Ieškoti |
| 20 | GRILLE SPEAKER SAFFRON 3Z50354096AZ | – | – | Ieškoti |
| 20 | GRILLE SPEAKER SAVANNAH 3Z50354098AF | – | – | Ieškoti |
| 20 | GRILLE SPEAKER STRATOS 3Z5035409U49 | – | – | Ieškoti |
| 20 | GRILLE SPEAKER WINDSOR BLUE 3Z5035409W15 | – | – | Ieškoti |
| 27 | INSEAL X 25MM X 1.5MM X 4.8M LONG UB75620 | – | – | Ieškoti |
| 29 | KEYHOLE PLATE PP27153PC | – | – | Ieškoti |
| 18 | MESH TWEETER DOOR LH PM115141PA | – | – | Ieškoti |
| 18 | MESH TWEETER DOOR RH PM115142PA | – | – | Ieškoti |
| 16 | PANEL CHEATER DOOR LH PP115147PA | – | – | Ieškoti |
| 16 | PANEL CHEATER DOOR LH 3Z7837901B | – | – | Ieškoti |
| 16 | PANEL CHEATER DOOR RH 3Z7837902B | – | – | Ieškoti |
| 16 | PANEL CHEATER DOOR RH PP115146PA | – | – | Ieškoti |
| 40 | RETAINING CLIP STARLOCK WASHER 3W0868517A | – | – | Ieškoti |
| 35 | RIVET 4 X 9.5 N0162061 | – | – | Ieškoti |
| 25 | SCREW .112 DIA X .375 WHT003451 | – | – | Ieškoti |
| 23 | SCREW 4.0 X 12.0 N10415902 | – | – | Ieškoti |
| 32 | SCREW CSK HEAD NO.4 X .250 IN. LONG UA8903Z | – | – | Ieškoti |
| 28 | SCREW CSK HEAD NO.4 X .250 IN. LONG UA8903Z | – | – | Ieškoti |
| 12 | SCREW FLANGED HEAD M5 X 16MM LONG PZ104785PA | – | – | Ieškoti |
| 2 | SCREW FLANGED HEAD M5 X 16MM LONG PZ104785PA | – | – | Ieškoti |
| 33 | SCREW HEX SOCKETM5 X 18 N90807401 | – | – | Ieškoti |
| 4 | SCREW M5 X 70 N10574601 | – | – | Ieškoti |
| 17 | SCREW PAN HEAD NO.6 X .375 IN. LONG UA7910Z | – | – | Ieškoti |
| 7 | SETSCREW BUTTON HEAD M6 X 20MM LONG PP32605PA | – | – | Ieškoti |
| 21 | SNAP NUT CLAMP M5 X 16.6 X 17.0 N90356204 | – | – | Ieškoti |
| 10 | STUD HOLDER TRIM PANELS GREEN PP28903PB | – | – | Ieškoti |
| 30 | SUPPORT BRACKET WAISTRAIL FRONT LH PP115767PA | – | – | Ieškoti |
| 30 | SUPPORT BRACKET WAISTRAIL FRONT RH PP115766PA | – | – | Ieškoti |
| 31 | SUPPORT BRACKET WAISTRAIL REAR LH PP115769PA | – | – | Ieškoti |
| 31 | SUPPORT BRACKET WAISTRAIL REAR RH PP115768PA | – | – | Ieškoti |
| 9 | TRIM CLIP ADJUSTABLE WHITE PP28904PA | – | – | Ieškoti |
| 9 | TRIM CLIP FIXED RED PP32162PA | – | – | Ieškoti |
| 8 | WASHER PLAIN M5 UM20222Z | – | – | Ieškoti |
| 37 | WATER SHEDDER DOOR FRONT LH PP115387PB | – | – | Ieškoti |
| 37 | WATER SHEDDER DOOR FRONT RH PP115388PB | – | – | Ieškoti |
