Bentley Azure T carpets – schema ir OEM kodai

Passenger Compartment Trim · 21 pozicija · 0 skelbimų

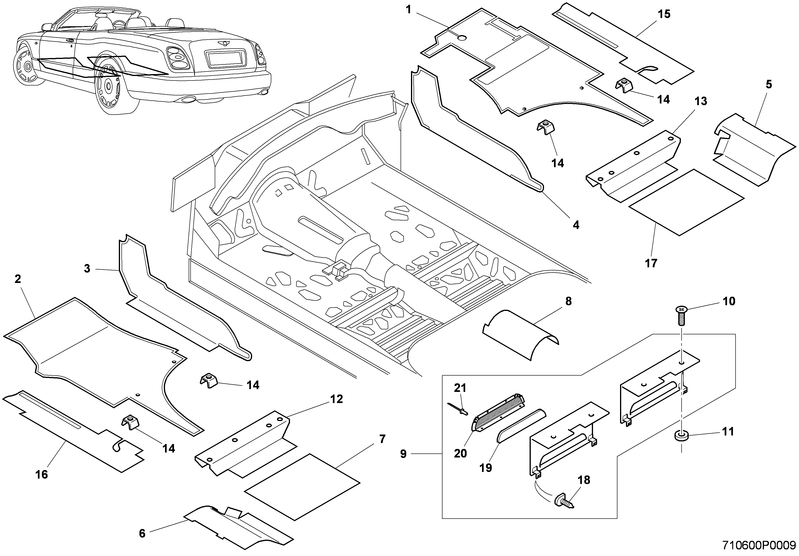

Schema

Paspauskite schemą, kad padidintumėte, arba poziciją lentelėje.

Pozicijos ir kodai

Nr.	Detalė / OEM kodas	Skelb.	Kaina nuo
3	ASSY CARPET CONSOLE LH LHD 3Z3863711	–	–	Ieškoti
3	ASSY CARPET CONSOLE LH RHD 3Z3863712A	–	–	Ieškoti
4	ASSY CARPET CONSOLE RH LHD 3Z3863712	–	–	Ieškoti
4	ASSY CARPET CONSOLE RH RHD 3Z3863711A	–	–	Ieškoti
1	ASSY CARPET DRIVERS LHD 3Z3863367	–	–	Ieškoti
1	ASSY CARPET DRIVERS RHD 3Z3863368	–	–	Ieškoti
16	ASSY CARPET FLOOR SUPPORT LH PV110001PA	–	–	Ieškoti
15	ASSY CARPET FLOOR SUPPORT RH PV110002PA	–	–	Ieškoti
2	ASSY CARPET PASSENGERS LHD 3Z3863703	–	–	Ieškoti
2	ASSY CARPET PASSENGERS RHD 3Z3863704	–	–	Ieškoti
7	ASSY CARPET REAR FLOOR LH 3Z7863677	–	–	Ieškoti
17	ASSY CARPET REAR FLOOR RH 3Z7863678	–	–	Ieškoti
8	ASSY CARPET REAR TUNNEL 3Z7863869	–	–	Ieškoti
12	ASSY HIDE PANEL SEAT BEAM LH PV57861PA	–	–	Ieškoti
13	ASSY HIDE PANEL SEAT BEAM RH PV57862PA	–	–	Ieškoti
6	CARPET INNER SILL REAR LH 3Z7863123	–	–	Ieškoti
5	CARPET INNER SILL REAR RH 3Z7863124	–	–	Ieškoti
18	CLIP TRIM FIRTREE TYPE PZ57637PA	–	–	Ieškoti
19	FOAM HEELBOARD GRILLE 3Z7867683	–	–	Ieškoti
20	GRILLE HEELBOARD ANTHRACITE 3Z7035345W43	–	–	Ieškoti
20	GRILLE HEELBOARD AUTUMN 3Z7035345T76	–	–	Ieškoti
20	GRILLE HEELBOARD BELUGA 3Z70353454BH	–	–	Ieškoti
20	GRILLE HEELBOARD BURGUNDY 3Z703534552W	–	–	Ieškoti
20	GRILLE HEELBOARD BURNT OAK 3Z70353452BY	–	–	Ieškoti
20	GRILLE HEELBOARD CASHEW 3Z7035345V51	–	–	Ieškoti
20	GRILLE HEELBOARD COGNAC 3Z70353451FT	–	–	Ieškoti
20	GRILLE HEELBOARD COTSWOLD 3Z7035345T46	–	–	Ieškoti
20	GRILLE HEELBOARD CUMBRIAN GREEN 3Z7035345V50	–	–	Ieškoti
20	GRILLE HEELBOARD FIREGLOW 3Z70353451LU	–	–	Ieškoti
20	GRILLE HEELBOARD FRENCH NAVY 3Z7035345U95	–	–	Ieškoti
20	GRILLE HEELBOARD HOTSPUR 3Z70353451BV	–	–	Ieškoti
20	GRILLE HEELBOARD IMPERIAL BLUE 3Z7035345V66	–	–	Ieškoti
20	GRILLE HEELBOARD LINEN 3Z703534551V	–	–	Ieškoti
20	GRILLE HEELBOARD MAGNOLIA 3Z7035345AA8	–	–	Ieškoti
20	GRILLE HEELBOARD NEWMARKET TAN 3Z7035345W09	–	–	Ieškoti
20	GRILLE HEELBOARD OATMEAL 3Z7035345T91	–	–	Ieškoti
20	GRILLE HEELBOARD PEACOCK 3Z7035345V69	–	–	Ieškoti
20	GRILLE HEELBOARD PORPOISE 3Z70353451DR	–	–	Ieškoti
20	GRILLE HEELBOARD PORTLAND 3Z70353455BZ	–	–	Ieškoti
20	GRILLE HEELBOARD REDWOOD 3Z7035345W26	–	–	Ieškoti
20	GRILLE HEELBOARD SADDLE 3Z70353459AL	–	–	Ieškoti
20	GRILLE HEELBOARD SAFFRON 3Z70353456AZ	–	–	Ieškoti
20	GRILLE HEELBOARD SAVANNAH 3Z70353458AF	–	–	Ieškoti
20	GRILLE HEELBOARD STRATOS 3Z7035345U49	–	–	Ieškoti
20	GRILLE HEELBOARD WINDSOR BLUE 3Z7035345W15	–	–	Ieškoti
14	HIDE PANEL SEAT PEDESTAL FRONT PV29488PB	–	–	Ieškoti
9	PANEL HEELBOARD VALANCE WITH SPEAKER GRILLES 3Z7867829	–	–	Ieškoti
21	RIVET POP DOMED HEAD .125 IN. X .382 IN. LONG XB13830R	–	–	Ieškoti
10	SCREW HEXALOBULAR SOCKETM6 X 20 N90896301	–	–	Ieškoti
11	SPACER PV32079PA	–	–	Ieškoti
