Bentley Arnage Final Series release mechanism (door rear) – schema ir OEM kodai

Door Rear · 36 pozicijos · 0 skelbimų

Visos Bentley Arnage Final Series dalys →

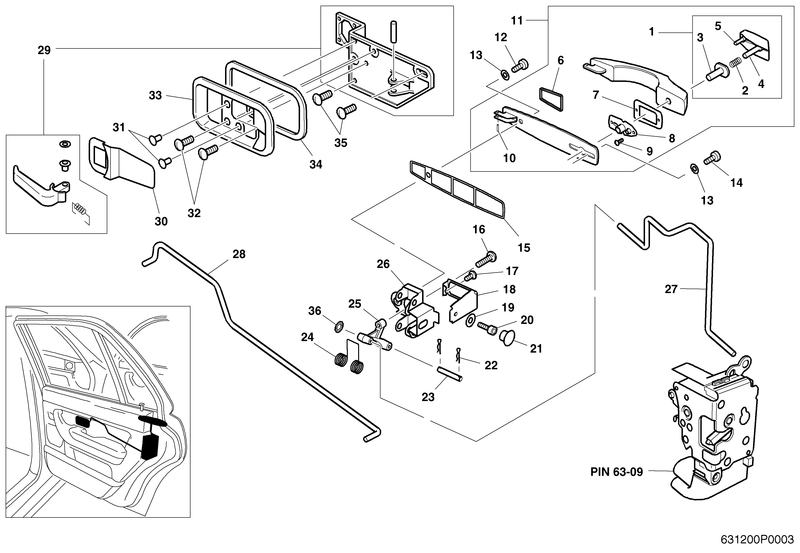

Schema

Paspauskite schemą, kad padidintumėte, arba poziciją lentelėje.

Pozicijos ir kodai

Nr.	Detalė / OEM kodas	Skelb.	Kaina nuo
1	ASSEMBLY PUSH BUTTON EXTERIOR DOOR HANDLE PP33138PB	–	–	Ieškoti
30	ASSY COVER INTERIOR HANDLE LH 3Z5839971	–	–	Ieškoti
30	ASSY COVER INTERIOR HANDLE RH 3Z5839972	–	–	Ieškoti
29	ASSY DOOR HANDLE INTERIOR CHROME LH 3Z5839225	–	–	Ieškoti
29	ASSY DOOR HANDLE INTERIOR CHROME RH 3Z5839226	–	–	Ieškoti
29	ASSY DOOR HANDLE INTERIOR COINED LH 3Z5839113	–	–	Ieškoti
29	ASSY DOOR HANDLE INTERIOR COINED RH 3Z5839114	–	–	Ieškoti
11	ASSY EXTERIOR DOOR HANDLE & BASEPLATE CHROME PP33154PC	–	–	Ieškoti
11	ASSY EXTERIOR DOOR HANDLE & BASEPLATE COINED PP106508PA	–	–	Ieškoti
26	ASSY PIVOT BRACKET LEVER PUSH BUTTON PP33146PB	–	–	Ieškoti
18	ASSY TRAP PLATE PUSH BUTTON EXTERIOR DOOR HANDLE UB88180	–	–	Ieškoti
8	BEARING PUSH BUTTON EXTERIOR DOOR HANDLE UB80577	–	–	Ieškoti
35	BOLT FLANGE HEAD M5 X 10MM LONG PC24818PA	–	–	Ieškoti
14	CAPSCREW SOCKET HEAD M5 X 16MM LONG UM20954SR	–	–	Ieškoti
20	CAPSCREW SOCKET HEAD M5 X 16MM LONG UM20954Z	–	–	Ieškoti
12	CAPSCREW SOCKET HEAD M5 X 20MM LONG UM20955SR	–	–	Ieškoti
33	ESCUTCHEON INTERIOR HANDLE LH 3Z5837235	–	–	Ieškoti
33	ESCUTCHEON INTERIOR HANDLE RH 3Z5837236	–	–	Ieškoti
15	GASKET EXTERIOR DOOR HANDLE UB85202	–	–	Ieškoti
6	GASKET EXTERIOR DOOR HANDLE PIVOT PP33137PB	–	–	Ieškoti
7	GASKET EXTERIOR DOOR HANDLE PUSH BUTTON PP33136PA	–	–	Ieškoti
21	GROMMET SPM2240	–	–	Ieškoti
5	GUIDE PIN PUSH BUTTON EXTERIOR DOOR HANDLE UB81372	–	–	Ieškoti
4	GUIDE ROD PUSH BUTTON EXTERIOR DOOR HANDLE UB79545	–	–	Ieškoti
25	LEVER PUSH BUTTON PP33150PA	–	–	Ieškoti
3	LINEAR BEARING PP33141PA	–	–	Ieškoti
27	LINK EXTERIOR HANDLE REAR DOOR LH PP26141PC	–	–	Ieškoti
27	LINK EXTERIOR HANDLE REAR DOOR RH PP26142PC	–	–	Ieškoti
28	LINK INTERIOR HANDLE REAR DOOR LH PP26277PD	–	–	Ieškoti
28	LINK INTERIOR HANDLE REAR DOOR RH PP26278PD	–	–	Ieškoti
23	PIVOT PIN DOOR EXTERIOR RELEASE LEVER UB74867	–	–	Ieškoti
10	ROLL PIN 3MM X 14MM LONG SPM2125	–	–	Ieškoti
16	SCREW ADJUSTMENT BELL CRANK PP33151PA	–	–	Ieškoti
17	SCREW CSK HEAD M5 X 10MM LONG UM21572SR	–	–	Ieškoti
9	SCREW PAN HEAD M4 X 6MM LONG UM20792SR	–	–	Ieškoti
32	SCREW PAN HEAD M4 X 8 LONG WHT003635	–	–	Ieškoti
34	SEAL ESCUTCHEON PLATE PP57465PA	–	–	Ieškoti
22	SPRING CLIP UB18816	–	–	Ieškoti
2	SPRING PUSH BUTTON DOOR HANDLE UB42968	–	–	Ieškoti
36	STARLOCK WASHER WHT003815	–	–	Ieškoti
31	STUD ANCHOR ESCUTCHEON COVER PLATE UD11793	–	–	Ieškoti
24	TORSION SPRING PP33152PA	–	–	Ieškoti
19	WASHER PLAIN 2BA X4404Z	–	–	Ieškoti
13	WASHER PLAIN M5 UM20204SR	–	–	Ieškoti
