Bentley Arnage Final Series interior trim & waistrail (door rear) – schema ir OEM kodai

Door Rear · 43 pozicijos · 0 skelbimų

Visos Bentley Arnage Final Series dalys →

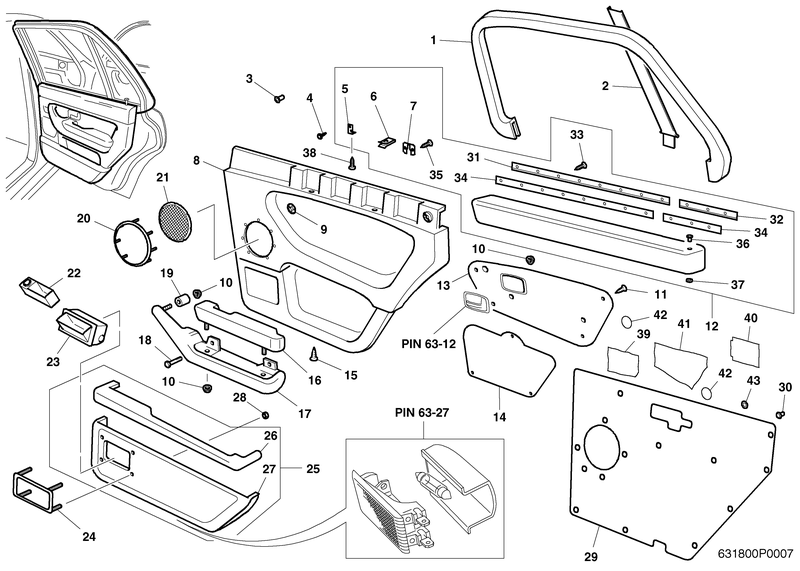

Schema

Paspauskite schemą, kad padidintumėte, arba poziciją lentelėje.

Pozicijos ir kodai

Nr.	Detalė / OEM kodas	Skelb.	Kaina nuo
16	ASSY ARMREST REAR DOOR LH PP56915PA	–	–	Ieškoti
16	ASSY ARMREST REAR DOOR RH PP56916PA	–	–	Ieškoti
22	ASSY ASHTRAY INSERT LH PP32573PA	–	–	Ieškoti
22	ASSY ASHTRAY INSERT RH PP32574PA	–	–	Ieškoti
23	ASSY ASHTRAY TRIMMED DOOR LH PP33332PA	–	–	Ieškoti
23	ASSY ASHTRAY TRIMMED DOOR RH PP33330PA	–	–	Ieškoti
24	ASSY BEZEL ASHTRAY TRIMMED LH PP29703PB	–	–	Ieškoti
24	ASSY BEZEL ASHTRAY TRIMMED RH PP29702PB	–	–	Ieškoti
26	ASSY DOOR POCKET UPPER REAR LH PP23895PC	–	–	Ieškoti
26	ASSY DOOR POCKET UPPER REAR RH PP23896PC	–	–	Ieškoti
19	ASSY DOOR PULL BOSS REAR LH PP25419PB	–	–	Ieškoti
19	ASSY DOOR PULL BOSS REAR RH PP25418PB	–	–	Ieškoti
17	ASSY DOOR PULL REAR LH PP56913PA	–	–	Ieškoti
17	ASSY DOOR PULL REAR RH PP56914PA	–	–	Ieškoti
1	ASSY DOOR UPPER REAR LH PP21361PC	–	–	Ieškoti
1	ASSY DOOR UPPER REAR RH PP21362PC	–	–	Ieškoti
14	ASSY INSERT PANEL LOWER TRIMMED LH PP100845PA	–	–	Ieškoti
14	ASSY INSERT PANEL LOWER TRIMMED RH PP100846PA	–	–	Ieškoti
13	ASSY INSERT PANEL UPPER TRIMMED LH PP100847PA	–	–	Ieškoti
13	ASSY INSERT PANEL UPPER TRIMMED RH PP100848PA	–	–	Ieškoti
27	ASSY POCKET LOWER REAR DOOR LH PV110073PA	–	–	Ieškoti
27	ASSY POCKET LOWER REAR DOOR RH PV110074PA	–	–	Ieškoti
25	ASSY POCKET REAR DOOR LH PP110465PA	–	–	Ieškoti
25	ASSY POCKET REAR DOOR RH PP110464PA	–	–	Ieškoti
8	ASSY TRIM PAD REAR DOOR LH PP100959PA	–	–	Ieškoti
8	ASSY TRIM PAD REAR DOOR RH PP100958PA	–	–	Ieškoti
12	ASSY WAISTRAIL WITH CHROME STRIP & LOGO REAR DOOR LH PP117005PA	–	–	Ieškoti
12	ASSY WAISTRAIL WITH CHROME STRIP & LOGO REAR DOOR RH PP117004PA	–	–	Ieškoti
20	BEZEL SPEAKER CHROMED PP100830PA	–	–	Ieškoti
18	BOLT M5 X 25 LG HEX HD WHT003751	–	–	Ieškoti
5	BRACKET SUPPORT WAISTRAIL PP27154PD	–	–	Ieškoti
36	BUSH SILL BUTTON UB35300	–	–	Ieškoti
6	CAPTIVE NUT UB15969	–	–	Ieškoti
3	CAPTIVE NUT (FASTEX) UB72026	–	–	Ieškoti
32	FINISHER WAISTRAIL INNER QUARTER LIGHT PP107170PA	–	–	Ieškoti
31	FINISHER WAISTRAIL INNER REAR PP107169PA	–	–	Ieškoti
2	GLASS DIVISION BAR TRIM REAR DOOR LH PP25421PB	–	–	Ieškoti
2	GLASS DIVISION BAR TRIM REAR DOOR RH PP25422PB	–	–	Ieškoti
21	GRILLE SPEAKER ANTHRACITE 3Z5035409W43	–	–	Ieškoti
21	GRILLE SPEAKER AUTUMN 3Z5035409T76	–	–	Ieškoti
21	GRILLE SPEAKER BELUGA 3Z50354094BH	–	–	Ieškoti
21	GRILLE SPEAKER BURGUNDY 3Z503540952W	–	–	Ieškoti
21	GRILLE SPEAKER BURNT OAK 3Z50354092BY	–	–	Ieškoti
21	GRILLE SPEAKER CASHEW BEIGE 3Z5035409V51	–	–	Ieškoti
21	GRILLE SPEAKER COGNAC 3Z50354091FT	–	–	Ieškoti
21	GRILLE SPEAKER COTSWOLD 3Z5035409T46	–	–	Ieškoti
21	GRILLE SPEAKER CUMBRIAN GREEN 3Z5035409V50	–	–	Ieškoti
21	GRILLE SPEAKER FIREGLOW 3Z50354091LU	–	–	Ieškoti
21	GRILLE SPEAKER FRENCH NAVY 3Z5035409U95	–	–	Ieškoti
21	GRILLE SPEAKER IMPERIAL BLUE 3Z5035409V66	–	–	Ieškoti
21	GRILLE SPEAKER LINEN 3Z503540951V	–	–	Ieškoti
21	GRILLE SPEAKER MAGNOLIA 3Z5035409AA8	–	–	Ieškoti
21	GRILLE SPEAKER NEWMARKET TAN 3Z5035409W09	–	–	Ieškoti
21	GRILLE SPEAKER OATMEAL 3Z5035409T91	–	–	Ieškoti
21	GRILLE SPEAKER PEACOCK 3Z5035409V69	–	–	Ieškoti
21	GRILLE SPEAKER PORTLAND 3Z50354095BZ	–	–	Ieškoti
21	GRILLE SPEAKER REDWOOD 3Z5035409W26	–	–	Ieškoti
21	GRILLE SPEAKER SADDLE 3Z50354099AL	–	–	Ieškoti
21	GRILLE SPEAKER SAFFRON 3Z50354096AZ	–	–	Ieškoti
21	GRILLE SPEAKER SAVANNAH 3Z50354098AF	–	–	Ieškoti
21	GRILLE SPEAKER STRATOS 3Z5035409U49	–	–	Ieškoti
21	GRILLE SPEAKER WINDSOR BLUE 3Z5035409W15	–	–	Ieškoti
34	INSEAL X 25MM X 1.5MM X 4.8M LONG UB75620	–	–	Ieškoti
7	KEYHOLE PLATE PP27153PC	–	–	Ieškoti
28	NUT M4 COMBINATION PF30219PA	–	–	Ieškoti
10	NUT WHIZTITE M5 X 0.8 PT24658PA	–	–	Ieškoti
42	PATCH 30MM DIAMETER SELF ADHESIVE PP59689PA	–	–	Ieškoti
35	SCREW CSK HEAD NO.4 X .375 IN. LONG UA8901ZP	–	–	Ieškoti
33	SCREW FLANGE HEAD NO.4 X .500 IN. LONG UA7103Z	–	–	Ieškoti
15	SCREW FLANGE HEAD NO.6 X .625 IN. LONG UA9313Z	–	–	Ieškoti
11	SCREW FLANGE HEAD NO.8 X .500 IN. LONG UA9321Z	–	–	Ieškoti
38	SCREW WASHER PAN HEAD NO.6 X .750 IN. LONG BLACK SPC2735	–	–	Ieškoti
37	STARLOCK WASHER .500 IN. NOMINAL UB35297	–	–	Ieškoti
9	STARLOCK WASHER 2.00MM NOMINAL SPM1859	–	–	Ieškoti
30	STUD HOLDER TRIM PANELS GREEN PP28903PB	–	–	Ieškoti
4	TRIM CLIP FIXED RED PP32162PA	–	–	Ieškoti
43	WASHER RUBBER PP59785PA	–	–	Ieškoti
39	WATER SHEDDER CHECK ARM APERTURE REAR DOOR LH PP59381PA	–	–	Ieškoti
39	WATER SHEDDER CHECK ARM APERTURE REAR DOOR RH PP59382PA	–	–	Ieškoti
41	WATER SHEDDER LARGE APERTURE REAR DOOR LH PP59385PA	–	–	Ieškoti
41	WATER SHEDDER LARGE APERTURE REAR DOOR RH PP59386PA	–	–	Ieškoti
29	WATER SHEDDER REAR DOOR LH 3Z4833547	–	–	Ieškoti
29	WATER SHEDDER REAR DOOR RH 3Z4833548	–	–	Ieškoti
40	WATER SHEDDER SMALL APERTURE REAR DOOR LH PP59383PA	–	–	Ieškoti
40	WATER SHEDDER SMALL APERTURE REAR DOOR RH PP59384PA	–	–	Ieškoti
