Bentley Arnage Final Series demister panel – schema ir OEM kodai
Dashboard · 14 pozicijų · 0 skelbimų

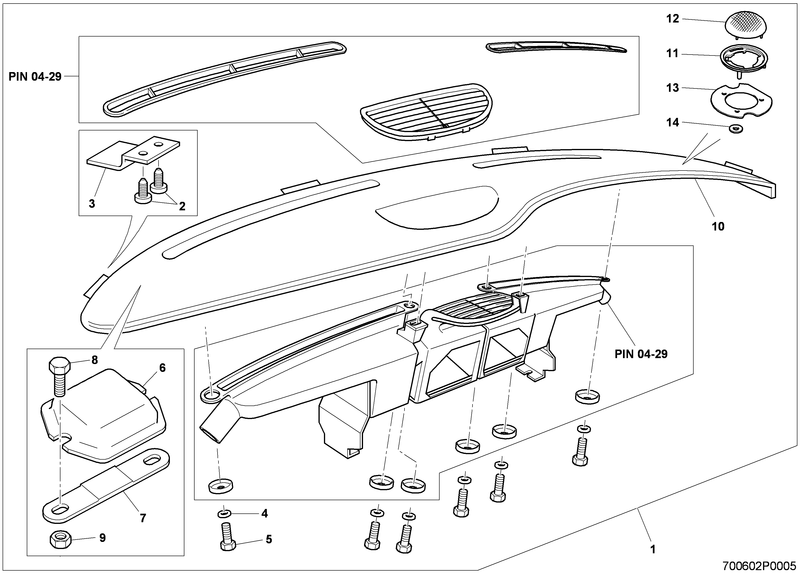

Visos Bentley Arnage Final Series dalys →Schema
Paspauskite schemą, kad padidintumėte, arba poziciją lentelėje.
Pozicijos ir kodai
| Nr. | Detalė / OEM kodas | Skelb. | Kaina nuo | |
|---|---|---|---|---|
| 1 | ASSY TRIMMED DEMISTER PANEL COMPLETE LHD 3Z4857192 | – | – | Ieškoti |
| 1 | ASSY TRIMMED DEMISTER PANEL COMPLETE LHD 3Z4857192B | – | – | Ieškoti |
| 1 | ASSY TRIMMED DEMISTER PANEL COMPLETE LHD PX111873PA | – | – | Ieškoti |
| 1 | ASSY TRIMMED DEMISTER PANEL COMPLETE RHD 3Z4857192A | – | – | Ieškoti |
| 1 | ASSY TRIMMED DEMISTER PANEL COMPLETE RHD 3Z4857192C | – | – | Ieškoti |
| 1 | ASSY TRIMMED DEMISTER PANEL COMPLETE RHD PX111890PA | – | – | Ieškoti |
| 1 | ASSY TRIMMED DEMISTER PANEL LHD PU111871PA | – | – | Ieškoti |
| 1 | ASSY TRIMMED DEMISTER PANEL RHD PU111888PA | – | – | Ieškoti |
| 11 | BEZEL TWEETER BELUGA 3Z08681614BH | – | – | Ieškoti |
| 12 | GRILLE TWEETER BELUGA 3Z58572274BH | – | – | Ieškoti |
| 6 | HOUSING VICS BEACON PAINTED PX110215PA | – | – | Ieškoti |
| 10 | MOULDING DEMISTER PANEL LHD 3Z4819635 | – | – | Ieškoti |
| 10 | MOULDING DEMISTER PANEL LHD 3Z4819635B | – | – | Ieškoti |
| 10 | MOULDING DEMISTER PANEL LHD PX111889PC | – | – | Ieškoti |
| 10 | MOULDING DEMISTER PANEL LHD PU111885PC | – | – | Ieškoti |
| 10 | MOULDING DEMISTER PANEL RHD PU111872PC | – | – | Ieškoti |
| 10 | MOULDING DEMISTER PANEL RHD 3Z4819635A | – | – | Ieškoti |
| 10 | MOULDING DEMISTER PANEL RHD 3Z4819635C | – | – | Ieškoti |
| 10 | MOULDING DEMISTER PANEL RHD PX111874PC | – | – | Ieškoti |
| 9 | NUT M4 COMBINATION PF30219PA | – | – | Ieškoti |
| 14 | RETAINING CLIP STARLOCK 3W0868517 | – | – | Ieškoti |
| 8 | SCREW CSK SOCKET HEAD M4 X 16MM LONG UV35013PA | – | – | Ieškoti |
| 2 | SCREW FLANGE HEAD NO.6 X .625 IN. LONG UA7124Z | – | – | Ieškoti |
| 5 | SETSCREW M5 X 16MM LONG UM20706ZP | – | – | Ieškoti |
| 3 | SPRING CLIP UT14377PA | – | – | Ieškoti |
| 7 | STRAP MOULDING VICS BEACON PX110216PA | – | – | Ieškoti |
| 13 | WASHER DEMIST TWEETER LHD CENTRE 3Z1867907A | – | – | Ieškoti |
| 13 | WASHER DEMIST TWEETER LHD LH 3Z1867907 | – | – | Ieškoti |
| 13 | WASHER DEMIST TWEETER LHD RH 3Z1867907B | – | – | Ieškoti |
| 13 | WASHER DEMISTER PANEL TWEETER RHD CENTRE 3Z2867907A | – | – | Ieškoti |
| 13 | WASHER DEMISTER PANEL TWEETER RHD LH 3Z2867907 | – | – | Ieškoti |
| 13 | WASHER DEMISTER PANEL TWEETER RHD RH 3Z2867907B | – | – | Ieškoti |
| 4 | WASHER PLAIN M5 UM20204ZP | – | – | Ieškoti |
