Bentley Arnage Final Series interior trim & waistrail (door front) – schema ir OEM kodai

Door Front · 46 pozicijos · 0 skelbimų

Visos Bentley Arnage Final Series dalys →

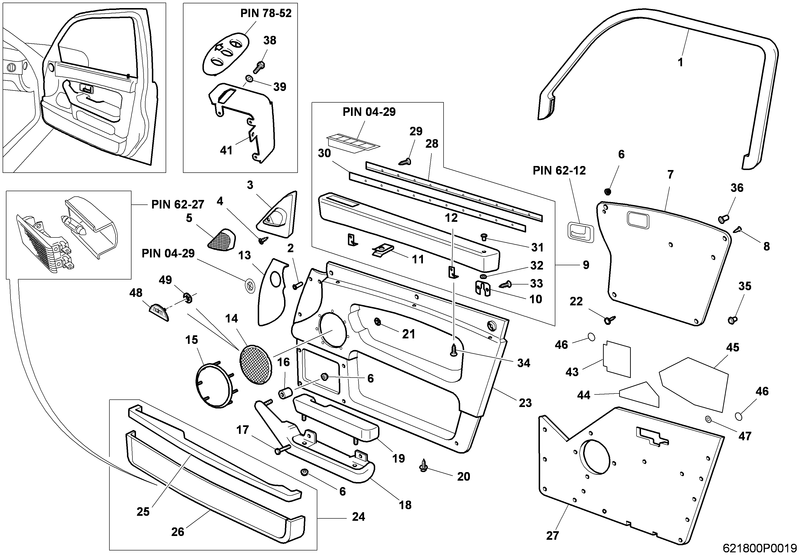

Schema

Paspauskite schemą, kad padidintumėte, arba poziciją lentelėje.

Pozicijos ir kodai

Nr.	Detalė / OEM kodas	Skelb.	Kaina nuo
19	ASSY ARMREST FRONT DOOR LH PP21171PD	–	–	Ieškoti
19	ASSY ARMREST FRONT DOOR RH PP21170PD	–	–	Ieškoti
24	ASSY DOOR POCKET FRONT LH PP110463PA	–	–	Ieškoti
24	ASSY DOOR POCKET FRONT RH PP110462PA	–	–	Ieškoti
26	ASSY DOOR POCKET LOWER LH PV110071PA	–	–	Ieškoti
26	ASSY DOOR POCKET LOWER RH PV110072PA	–	–	Ieškoti
25	ASSY DOOR POCKET UPPER FRONT LH PP23893PD	–	–	Ieškoti
25	ASSY DOOR POCKET UPPER FRONT RH PP23898PD	–	–	Ieškoti
16	ASSY DOOR PULL BOSS FRONT LH PP25417PC	–	–	Ieškoti
16	ASSY DOOR PULL BOSS FRONT RH PP25416PC	–	–	Ieškoti
18	ASSY DOOR PULL FRONT LH PP21241PC	–	–	Ieškoti
18	ASSY DOOR PULL FRONT RH PP21240PC	–	–	Ieškoti
7	ASSY INSERT PANEL GARAGE DOOR OPENER TRIMMED LH PP110807PA	–	–	Ieškoti
7	ASSY INSERT PANEL TRIMMED LH PP110805PA	–	–	Ieškoti
7	ASSY INSERT PANEL TRIMMED RH PP110806PA	–	–	Ieškoti
13	ASSY QUARTER PANEL TRIMMED LH PP21947PC	–	–	Ieškoti
13	ASSY QUARTER PANEL TRIMMED RH PP21946PC	–	–	Ieškoti
23	ASSY TRIM PAD LH PP100957PA	–	–	Ieškoti
23	ASSY TRIM PAD RH PP100956PA	–	–	Ieškoti
1	ASSY UPPER DOOR FRONT LH PP21295PG	–	–	Ieškoti
1	ASSY UPPER DOOR FRONT RH PP21294PG	–	–	Ieškoti
9	ASSY WAISTRAIL WITH CHROME STRIP & LOGO FRONT DOOR LH PP117003PA	–	–	Ieškoti
9	ASSY WAISTRAIL WITH CHROME STRIP & LOGO FRONT DOOR RH PP117002PA	–	–	Ieškoti
48	BADGE NAIM SPEAKER GRILLE 3W4867932A	–	–	Ieškoti
15	BEZEL SPEAKER CHROMED PP100830PA	–	–	Ieškoti
17	BOLT M5 X 25 LG HEX HD WHT003751	–	–	Ieškoti
41	BRACKET GARAGE DOOR OPENER PP111050PA	–	–	Ieškoti
12	BRACKET SUPPORT WAISTRAIL PP27154PD	–	–	Ieškoti
31	BUSH SILL BUTTON UB35300	–	–	Ieškoti
11	CAPTIVE NUT UB15969	–	–	Ieškoti
36	CAPTIVE NUT (FASTEX) UB72026	–	–	Ieškoti
28	FINISHER WAISTRAIL FRONT DOOR PP29447PE	–	–	Ieškoti
2	FRICTION BUSH PLASTIC PW29919PB	–	–	Ieškoti
14	GRILLE SPEAKER ANTHRACITE 3Z5035409W43	–	–	Ieškoti
14	GRILLE SPEAKER AUTUMN 3Z5035409T76	–	–	Ieškoti
14	GRILLE SPEAKER BELUGA 3Z50354094BH	–	–	Ieškoti
14	GRILLE SPEAKER BURGUNDY 3Z503540952W	–	–	Ieškoti
14	GRILLE SPEAKER BURNT OAK 3Z50354092BY	–	–	Ieškoti
14	GRILLE SPEAKER CASHEW BEIGE 3Z5035409V51	–	–	Ieškoti
14	GRILLE SPEAKER COGNAC 3Z50354091FT	–	–	Ieškoti
14	GRILLE SPEAKER COTSWOLD 3Z5035409T46	–	–	Ieškoti
14	GRILLE SPEAKER CUMBRIAN GREEN 3Z5035409V50	–	–	Ieškoti
14	GRILLE SPEAKER FIREGLOW 3Z50354091LU	–	–	Ieškoti
14	GRILLE SPEAKER FRENCH NAVY 3Z5035409U95	–	–	Ieškoti
14	GRILLE SPEAKER IMPERIAL BLUE 3Z5035409V66	–	–	Ieškoti
14	GRILLE SPEAKER LINEN 3Z503540951V	–	–	Ieškoti
14	GRILLE SPEAKER MAGNOLIA 3Z5035409AA8	–	–	Ieškoti
14	GRILLE SPEAKER NEWMARKET TAN 3Z5035409W09	–	–	Ieškoti
14	GRILLE SPEAKER OATMEAL 3Z5035409T91	–	–	Ieškoti
14	GRILLE SPEAKER PEACOCK 3Z5035409V69	–	–	Ieškoti
14	GRILLE SPEAKER PORTLAND 3Z50354095BZ	–	–	Ieškoti
14	GRILLE SPEAKER REDWOOD 3Z5035409W26	–	–	Ieškoti
14	GRILLE SPEAKER SADDLE 3Z50354099AL	–	–	Ieškoti
14	GRILLE SPEAKER SAFFRON 3Z50354096AZ	–	–	Ieškoti
14	GRILLE SPEAKER SAVANNAH 3Z50354098AF	–	–	Ieškoti
14	GRILLE SPEAKER STRATOS 3Z5035409U49	–	–	Ieškoti
14	GRILLE SPEAKER WINDSOR BLUE 3Z5035409W15	–	–	Ieškoti
5	GRILLE TWEETER BLACK FRONT DOOR LH PP57859PB	–	–	Ieškoti
5	GRILLE TWEETER BLACK FRONT DOOR RH PP57860PB	–	–	Ieškoti
30	INSEAL X 25MM X 1.5MM X 4.8M LONG UB75620	–	–	Ieškoti
10	KEYHOLE PLATE PP27153PC	–	–	Ieškoti
6	NUT WHIZTITE M5 X 0.8 PT24658PA	–	–	Ieškoti
3	PANEL CHEATER LH PP21685PD	–	–	Ieškoti
3	PANEL CHEATER RH PP21684PD	–	–	Ieškoti
3	PANEL CHEATER TRIMMED LH 3Z5837901	–	–	Ieškoti
3	PANEL CHEATER TRIMMED RH 3Z5837902	–	–	Ieškoti
46	PATCH 30MM DIAMETER SELF ADHESIVE PP59689PA	–	–	Ieškoti
49	RETAINING CLIP STARLOCK WASHER 3W0868517A	–	–	Ieškoti
33	SCREW CSK HEAD NO.4 X .375 IN. LONG UA8901ZP	–	–	Ieškoti
29	SCREW FLANGE HEAD NO.4 X .375 IN. LONG UA7102Z	–	–	Ieškoti
20	SCREW FLANGE HEAD NO.6 X .625 IN. LONG UA9313Z	–	–	Ieškoti
8	SCREW FLANGE HEAD NO.8 X .500 IN. LONG UA9321Z	–	–	Ieškoti
4	SCREW PAN HEAD NO.6 X .375 IN. LONG UA7910Z	–	–	Ieškoti
34	SCREW WASHER PAN HEAD NO.6 X .750 IN. LONG BLACK SPC2735	–	–	Ieškoti
38	SETSCREW M4 X 10MM LONG UM20753Z	–	–	Ieškoti
32	STARLOCK WASHER .500 IN. NOMINAL UB35297	–	–	Ieškoti
21	STARLOCK WASHER 2.00MM NOMINAL SPM1859	–	–	Ieškoti
35	STUD HOLDER TRIM PANELS GREEN PP28903PB	–	–	Ieškoti
22	TRIM CLIP FIXED RED PP32162PA	–	–	Ieškoti
39	WASHER PLAIN M4 UM20203Z	–	–	Ieškoti
47	WASHER RUBBER PP59785PA	–	–	Ieškoti
43	WATER SHEDDER CHECK ARM APERTURE FRONT DOOR LH PP59373PA	–	–	Ieškoti
43	WATER SHEDDER CHECK ARM APERTURE FRONT DOOR RH PP59374PA	–	–	Ieškoti
27	WATER SHEDDER FRONT DOOR LH PP33856PB	–	–	Ieškoti
27	WATER SHEDDER FRONT DOOR LH PP26343PG	–	–	Ieškoti
27	WATER SHEDDER FRONT DOOR RH PP26344PG	–	–	Ieškoti
45	WATER SHEDDER LARGE APERTURE FRONT DOOR LH PP59379PA	–	–	Ieškoti
45	WATER SHEDDER LARGE APERTURE FRONT DOOR RH PP59380PA	–	–	Ieškoti
44	WATER SHEDDER SMALL APERTURE FRONT DOOR LH PP59375PA	–	–	Ieškoti
44	WATER SHEDDER SMALL APERTURE FRONT DOOR RH PP59376PA	–	–	Ieškoti
