Bentley Arnage Final Series fuel tank & fittings – schema ir OEM kodai

Fuel System · 36 pozicijos · 0 skelbimų

Visos Bentley Arnage Final Series dalys →

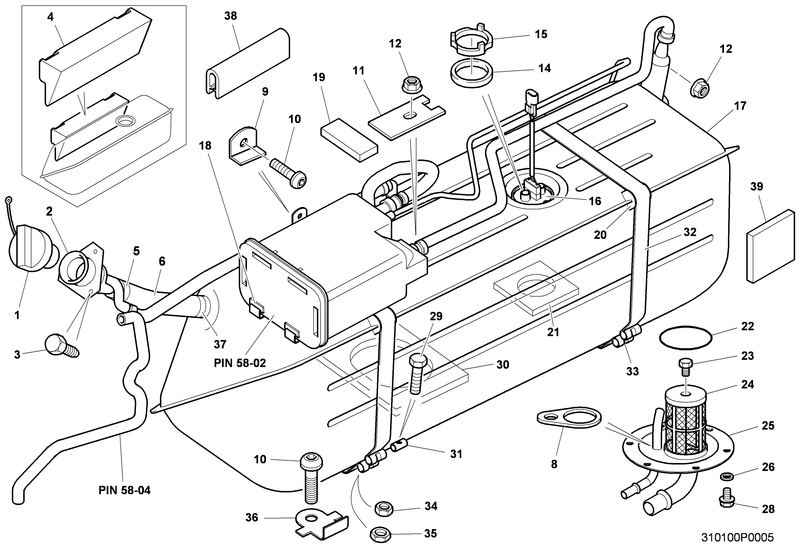

Schema

Paspauskite schemą, kad padidintumėte, arba poziciją lentelėje.

Pozicijos ir kodai

Nr.	Detalė / OEM kodas	Skelb.	Kaina nuo
25	ASSY ADAPTOR FUEL FEED RETURN PF55211PC	–	–	Ieškoti
2	ASSY FUEL FILLER NECK (RESTRICTED) PF21386PF	–	–	Ieškoti
17	ASSY FUEL TANK COMPLETE PF114117PD	–	–	Ieškoti
33	ASSY STRAP LOWER FUEL TANK PF55306PA	–	–	Ieškoti
32	ASSY STRAP UPPER FUEL TANK PF55305PA	–	–	Ieškoti
20	BOBBIN FUEL TANK STRAP PF55310PA	–	–	Ieškoti
29	BOLT.250 UNF X 2.500 IN. LONG UA118Z	–	–	Ieškoti
24	FILTER FUEL FEED PF114119PA	–	–	Ieškoti
1	FUEL CAP TETHERED PF114141PA	–	–	Ieškoti
1	FUEL CAP TETHERED CHROME MULLINER BLACK PF116240PA	–	–	Ieškoti
1	FUEL CAP TETHERED CHROME MULLINER MAROON PF116239PA	–	–	Ieškoti
8	GASKET FUEL FILTER LOWER PF114296PA	–	–	Ieškoti
5	HOSE CLIP 25/40MM SPM1984	–	–	Ieškoti
37	HOSE CLIP 25/40MM SPM1984	–	–	Ieškoti
6	HOSE FUEL FILLER PIPE PF55231PC	–	–	Ieškoti
15	LOCKING RING FUEL TANK SENDER UNIT UE70475	–	–	Ieškoti
12	NUT HEX FLANGED M5 N90663601	–	–	Ieškoti
34	NUT PLAIN .250 UNF UA301Z	–	–	Ieškoti
35	NUT PLAIN LOCK .250 UNF UA351Z	–	–	Ieškoti
22	O RING ADAPTOR FUEL FEED RETURN PF55212PA	–	–	Ieškoti
21	PAD SEALING BOOT FLOOR PF27173PA	–	–	Ieškoti
30	PAD SEALING BOOT FLOOR FEED RETURN PF55311PA	–	–	Ieškoti
39	PAD SELF ADHESIVE 3W8863995A	–	–	Ieškoti
4	PANEL FOAM FUEL TANK PF55337PA	–	–	Ieškoti
11	PLATE CLAMPING CANISTER PB114130PA	–	–	Ieškoti
38	PROTECTIVE EDGING FUEL FILLER 3W0854551	–	–	Ieškoti
36	RING RETAINING LOWER TANK STRAP PF55892PB	–	–	Ieškoti
9	RING RETAINING UPPER TANK STRAP PF55893PA	–	–	Ieškoti
19	RUBBER MOUNTING SMALL CANISTER PB114341PA	–	–	Ieškoti
18	RUBBER MOUNTINGS LARGE CANISTER PB114131PA	–	–	Ieškoti
10	SCREW PF29290PA WHT003770	–	–	Ieškoti
23	SCREW CHEESE HEAD M3 X 16MM LONG UM21087R	–	–	Ieškoti
28	SCREW FLANGED HEAD M5 X 8MM LONG PZ59115PA	–	–	Ieškoti
14	SEALING RING FUEL TANK SENDER UNIT UE70476	–	–	Ieškoti
16	SENDER UNIT FUEL TANK PF114120PA	–	–	Ieškoti
3	TORX BOLT WITH WASHER PP25736PA	–	–	Ieškoti
31	TUBE INSERT FUEL TANK RESTRAINING STRAP UR19867	–	–	Ieškoti
26	WASHER SHAKEPROOF M5 PZ59114PA	–	–	Ieškoti
