Bentley Arnage Final Series bumper front & mouldings – schema ir OEM kodai

Bumpers · 35 pozicijos · 0 skelbimų

Visos Bentley Arnage Final Series dalys →

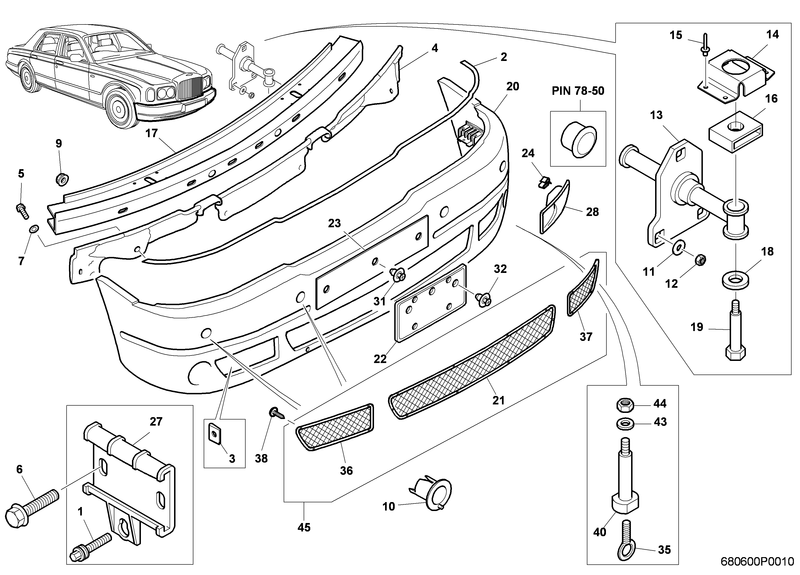

Schema

Paspauskite schemą, kad padidintumėte, arba poziciją lentelėje.

Pozicijos ir kodai

Nr.	Detalė / OEM kodas	Skelb.	Kaina nuo
40	ADAPTOR TOWING EYE PT109674PA	–	–	Ieškoti
20	ASSY FRONT BUMPER NO SIDE MARKER LAMPS PRIMED PT111857PA	–	–	Ieškoti
20	ASSY FRONT BUMPER NO SIDE MARKER LAMPS PRIMED PT111861PA	–	–	Ieškoti
20	ASSY FRONT BUMPER SIDE MARKER LAMPS PRIMED PT111853PA	–	–	Ieškoti
45	ASSY MATRIX DARK TINT STAINLESS STEEL 3Z4807680	–	–	Ieškoti
17	BEAM BUMPER FRONT PT106324PB	–	–	Ieškoti
19	BOLT BUMPER BEAM UR17973	–	–	Ieškoti
4	BRACKET SUPPORT BUMPER TOP SURFACE FRONT PT106092PC	–	–	Ieškoti
21	BUMPER GRILLE MATRIX FRONT CENTRE PT106417PB	–	–	Ieškoti
21	BUMPER GRILLE MATRIX FRONT CENTRE PT113977PA	–	–	Ieškoti
37	BUMPER GRILLE MATRIX FRONT LH PT106419PB	–	–	Ieškoti
36	BUMPER GRILLE MATRIX FRONT RH PT106418PB	–	–	Ieškoti
3	CAPTIVE NUT NO.8 SCREW UD13713	–	–	Ieškoti
28	COWL CHARGECOOLER RADIATOR LH PF102039PC	–	–	Ieškoti
28	COWL CHARGECOOLER RADIATOR RH PF102040PC	–	–	Ieškoti
13	DAMPER UNIT BUMPERS PT20489PE	–	–	Ieškoti
24	EDGE CLIP PZ108786PA	–	–	Ieškoti
37	GRILLE MATRIX FRONT BUMPER LH PT113979PA	–	–	Ieškoti
36	GRILLE MATRIX FRONT BUMPER RH PT113978PA	–	–	Ieškoti
10	HOUSING PARK DISTANCE CONTROL SENSOR PX106054PC	–	–	Ieškoti
23	LICENCE PLATE PLINTH NARROW PRIMED PT106352PA	–	–	Ieškoti
23	LICENCE PLATE PLINTH PRIMED PT110735PA	–	–	Ieškoti
23	LICENCE PLATE PLINTH WIDE PRIMED PT106350PA	–	–	Ieškoti
16	NUT DAMPER UNIT TO BUMPER BEAM PT24466PA	–	–	Ieškoti
44	NUT M14 SPM2220	–	–	Ieškoti
9	NUT M8 WHIZZ TYPE PC25597PA	–	–	Ieškoti
12	NUT PLAIN M10 UM21559Z	–	–	Ieškoti
14	NUT RETAINER DAMPER TO BEAM PT23734PA	–	–	Ieškoti
22	PLINTH LICENCE PLATE POLISHED PT30521PA	–	–	Ieškoti
15	RIVET POP DOMED HEAD .125 IN. X .350 IN. LONG XB13879R	–	–	Ieškoti
1	SCREW BUMPER SIDE SUPPORT ADJUSTER PT24412PB	–	–	Ieškoti
5	SCREW FLANGE HEAD M6 X14MM LONG PF22518PA	–	–	Ieškoti
6	SCREW FLANGE HEAD M6 X14MM LONG PF22518PA	–	–	Ieškoti
38	SCREW FLANGE HEAD NO.8 X .625 IN. LONG UA9322Z	–	–	Ieškoti
32	SCREW RIVET UT11940PA	–	–	Ieškoti
31	SCREW RIVET UT11940PA	–	–	Ieškoti
2	SEAL FRONT BUMPER PT102671PA	–	–	Ieškoti
27	SIDE SUPPORT BUMPER (BODY MOUNTED) PT33587PB	–	–	Ieškoti
35	TOWING EYE PT109675PA	–	–	Ieškoti
18	WASHER SPC1172	–	–	Ieškoti
43	WASHER UE34581	–	–	Ieškoti
7	WASHER M6 SPM1926	–	–	Ieškoti
11	WASHER PLAIN M10 UM22709Z	–	–	Ieškoti
