Bentley S2 Continental C series radiator fittings – schema ir OEM kodai

Air Conditioning · 51 pozicija · 0 skelbimų

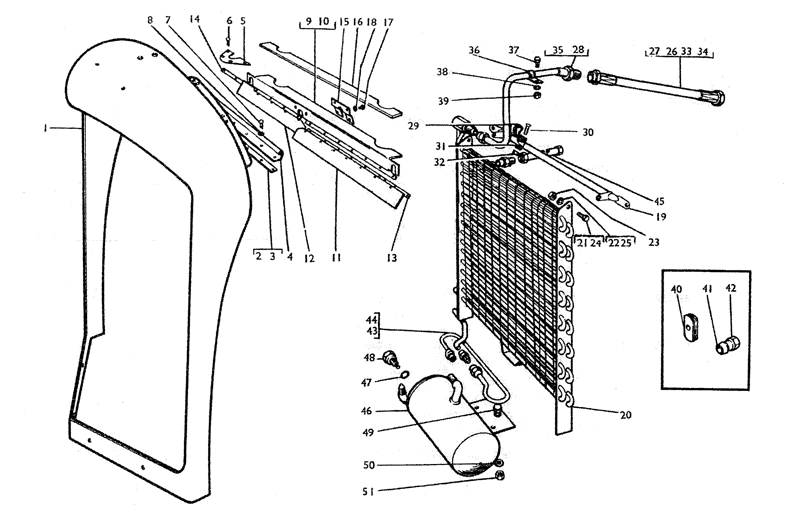

Schema

Paspauskite schemą, kad padidintumėte, arba poziciją lentelėje.

Pozicijos ir kodai

Nr.	Detalė / OEM kodas	Skelb.	Kaina nuo
20	ASSY CONDENSER AIR CONDITIONING UE7702	–	–	Ieškoti
1	ASSY RADIATOR SHELL UE7934	–	–	Ieškoti
46	ASSY RECEIVER AIR CONDITIONING UD3714	–	–	Ieškoti
26	ASSY REFRIGERATION HOSE & PIPE CONDENSER TO COMPRESSOR UE8276	–	–	Ieškoti
33	ASSY REFRIGERATION HOSE & PIPE CONDENSER TO COMPRESSOR UE8277	–	–	Ieškoti
34	ASSY REFRIGERATION HOSE CONDENSER TO COMPRESSOR UE8275	–	–	Ieškoti
27	ASSY REFRIGERATION HOSE CONDENSER TO COMPRESSOR UE8275	–	–	Ieškoti
43	ASSY REFRIGERATION PIPE CONDENSER OUTLET TO RECEIVER UD6171	–	–	Ieškoti
35	ASSY REFRIGERATION PIPE CONDENSER TO FLEXIBLE HOSE UE7772	–	–	Ieškoti
28	ASSY REFRIGERATION PIPE CONDENSER TO FLEXIBLE HOSE UE7776	–	–	Ieškoti
48	ASSY SAFETY PLUG RECEIVER AIR CONDITIONING UD4683	–	–	Ieškoti
9	ASSY SEALING PLATE RADIATOR UPPER UE7939	–	–	Ieškoti
19	ASSY SUPPORT STRUT RADIATOR HORIZONTAL UE7692	–	–	Ieškoti
42	BLANKING NUT UE7909	–	–	Ieškoti
21	BOLT .250 UNF X .500 IN. LONG UA102Z	–	–	Ieškoti
24	BOLT .250 UNF X .500 IN. LONG UA102Z	–	–	Ieškoti
37	BOLT PIPE CLIP REFRIGERATION PIPE UE8701	–	–	Ieškoti
49	BOLT.3125 UNF X .625 IN. LONG UA152Z	–	–	Ieškoti
3	CLAMPING STRIP RADIATOR SEAL LH UE7927	–	–	Ieškoti
13	CLAMPING STRIP RADIATOR SEAL LH UE7915	–	–	Ieškoti
2	CLAMPING STRIP RADIATOR SEAL RH UE7926	–	–	Ieškoti
14	CLAMPING STRIP RADIATOR SEAL RH UE7916	–	–	Ieškoti
40	GROMMET CONDENSER PIPE UE7928	–	–	Ieškoti
41	NIPPLE BLANKING PIPE CONDENSER UE8319	–	–	Ieškoti
32	NUT 2BA K4006Z	–	–	Ieškoti
39	NUT 2BA K4006Z	–	–	Ieškoti
23	NUT PLAIN .250 UNF UA301Z	–	–	Ieškoti
51	NUT PLAIN .3125 UNF UA302Z	–	–	Ieškoti
29	P CLIP RE19626	–	–	Ieškoti
36	P CLIP (.500 IN.) UE8709	–	–	Ieškoti
45	REFRIGERATION PIPE CONDENSER TO CONTROL VALVE UD5080	–	–	Ieškoti
44	REFRIGERATION PIPE CONDENSER TO RECEIVER UD3718	–	–	Ieškoti
7	RIVET BIFURCATED .125 IN. X .250 IN. LONG CS35080Z	–	–	Ieškoti
17	RIVET BIFURCATED .125 IN. X .375 IN. LONG CS35081Z	–	–	Ieškoti
6	RIVET BIFURCATED .125 IN. X .375 IN. LONG CS35081Z	–	–	Ieškoti
16	RUBBING STRIP RADIATOR UPPER UE7937	–	–	Ieškoti
15	SEALING PIECE RADIATOR UPPER UE7925	–	–	Ieškoti
5	SEALING PIECE RADIATOR UPPER UE7923	–	–	Ieškoti
10	SEALING PLATE RADIATOR UE7897	–	–	Ieškoti
11	SEALING STRIP RADIATOR LH UE7913	–	–	Ieškoti
12	SEALING STRIP RADIATOR RH UE7914	–	–	Ieškoti
4	SEALING STRIP RADIATOR UPPER UE7922	–	–	Ieškoti
30	SETSCREW 2BA X .375 IN. LONG UA1501Z	–	–	Ieškoti
47	WASHER COPPER .4375 IN. KB6656	–	–	Ieškoti
38	WASHER PLAIN .200 IN. I.D. K4404Z	–	–	Ieškoti
25	WASHER PLAIN .265 IN. I.D. UA1251Z	–	–	Ieškoti
22	WASHER PLAIN .265 IN. I.D. UA1251Z	–	–	Ieškoti
50	WASHER PLAIN .328 IN. I.D. UA1252Z	–	–	Ieškoti
31	WASHER PLAIN 2BA K4452Z	–	–	Ieškoti
8	WASHER PLAIN 5BA K4401Z	–	–	Ieškoti
18	WASHER PLAIN 5BA K4401Z	–	–	Ieškoti
