Bentley S2 Continental C series unit & compressor (boot refrigeration) – schema ir OEM kodai

Air Conditioning · 146 pozicijos · 0 skelbimų

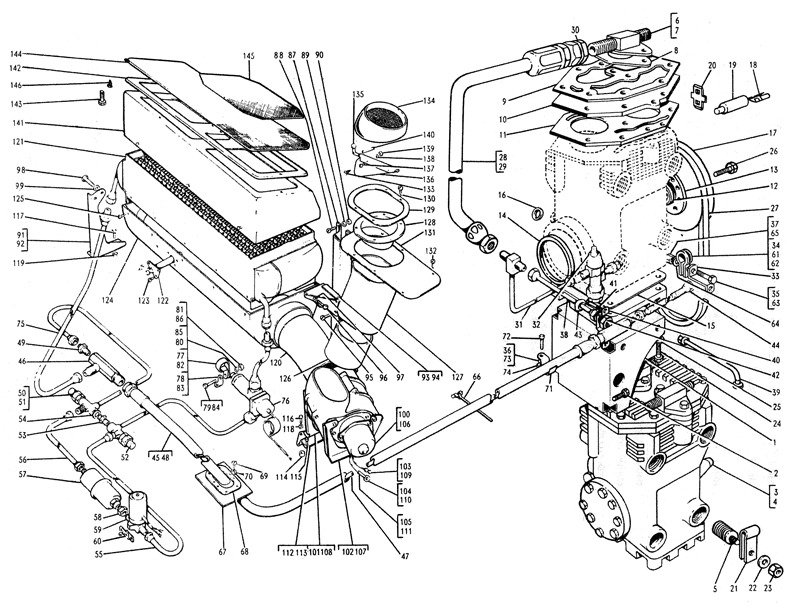

Schema

Paspauskite schemą, kad padidintumėte, arba poziciją lentelėje.

Pozicijos ir kodai

Nr.	Detalė / OEM kodas	Skelb.	Kaina nuo
100	ASSY BLOWER UNIT BOOT AIR CONDITIONING LH UD4163	–	–	Ieškoti
106	ASSY BLOWER UNIT BOOT AIR CONDITIONING RH UD4162	–	–	Ieškoti
51	ASSY BODY SERVICING VALVE REFRIGERATION UD5393	–	–	Ieškoti
52	ASSY BODY SERVICING VALVE REFRIGERATION UD5392	–	–	Ieškoti
142	ASSY CLAMPING PLATE EVAPORATOR INTAKE AIR CONDITIONING UD3489	–	–	Ieškoti
3	ASSY COMPRESSOR AIR CONDITIONING UE9547	–	–	Ieškoti
4	ASSY COMPRESSOR AIR CONDITIONING UE8268	–	–	Ieškoti
46	ASSY CONNECTOR REFRIGERATION PIPE UD4152	–	–	Ieškoti
144	ASSY FILTER & FRAME EVAPORATOR AIR CONDITIONING UD5123	–	–	Ieškoti
1	ASSY MOUNTING BRACKET REFRIGERATION COMPRESSOR UE8266	–	–	Ieškoti
87	ASSY MOUNTING CHANNEL AIR CONDITIONING UNIT UB2365	–	–	Ieškoti
134	ASSY OUTLET DUCT & GRILLE PARCEL SHELF UD4248	–	–	Ieškoti
45	ASSY REFRIGERATION HOSE UD4154	–	–	Ieškoti
28	ASSY REFRIGERATION HOSE COMPRESSOR TO 3 WAY JUNCTION UD5328	–	–	Ieškoti
29	ASSY REFRIGERATION HOSE COMPRESSOR TO EVAPORATOR UD5341	–	–	Ieškoti
30	ASSY REFRIGERATION PIPE COMRESSOR TO FLEXIBLE HOSE UD5229	–	–	Ieškoti
31	ASSY REFRIGERATION PIPE CONTROL VALVE TO SUCTION LINE UD5440	–	–	Ieškoti
56	ASSY REFRIGERATION PIPE SERVICE VALVE TO FILTER DRIER UD5396	–	–	Ieškoti
44	ASSY REFRIGERATION PIPE SILL TO RECEIVER LIQUID LINE UD5441	–	–	Ieškoti
55	ASSY REFRIGERATION PIPE SOLENOID VALVE TO SERVICE VALVE UD5397	–	–	Ieškoti
38	ASSY REFRIGERATION PIPE T PIECE TO MANIFOLD PIPE UD5442	–	–	Ieškoti
39	ASSY REFRIGERATION PIPE T PIECE TO MANIFOLD PIPE UD5683	–	–	Ieškoti
50	ASSY SERVICING VALVE REFRIGERATION UD5391	–	–	Ieškoti
58	ASSY SWIVEL UNION AIR CONDITIONING (.375) UD6159	–	–	Ieškoti
10	ASSY VALVE AIR CONDITIONING COMPRESSOR CD1796	–	–	Ieškoti
131	BLANKING PLATE OUTLET PARCEL SHELF UD4158	–	–	Ieškoti
41	BOLT .250 UNF X .375 IN. LONG UA101Z	–	–	Ieškoti
98	BOLT .250 UNF X .500 IN. LONG UA102Z	–	–	Ieškoti
72	BOLT .250 UNF X .500 IN. LONG UA102Z	–	–	Ieškoti
115	BOLT .250 UNF X .500 IN. LONG UA102Z	–	–	Ieškoti
84	BOLT .250 UNF X .500 IN. LONG UA102Z	–	–	Ieškoti
96	BOLT .250 UNF X .500 IN. LONG UA102Z	–	–	Ieškoti
79	BOLT .250 UNF X .500 IN. LONG UA102Z	–	–	Ieškoti
117	BOLT .250 UNF X .625 IN. LONG UA103Z	–	–	Ieškoti
116	BOLT .250 UNF X .750 IN. LONG UA104Z	–	–	Ieškoti
26	BOLT .250 UNF X 1.000 IN. LONG UA106Z	–	–	Ieškoti
2	BOLT .3125 UNF X .875 IN. LONG UA154Z	–	–	Ieškoti
91	BRACKET EVAPORATOR AIR CONDITIONING LH UD3499	–	–	Ieškoti
92	BRACKET EVAPORATOR AIR CONDITIONING RH UD3500	–	–	Ieškoti
93	BRACKET EVAPORATOR FRONT LH UD3505	–	–	Ieškoti
94	BRACKET EVAPORATOR FRONT RH UD3506	–	–	Ieškoti
83	BRACKET REFRIGERATION PIPE CLIP UD4207	–	–	Ieškoti
78	BRACKET REFRIGERATION PIPE CLIP UD4207	–	–	Ieškoti
110	CABLE EYE RD7990	–	–	Ieškoti
104	CABLE EYE RD7990	–	–	Ieškoti
68	CLAMPING PLATE SEAL AIR CONDITIONING PIPE TO FLOOR UB2651	–	–	Ieškoti
129	CLAMPING PLATE SEAL OUTLET DUCT PARCEL SHELF UD4156	–	–	Ieškoti
66	CLIP FLEXIBLE HOSE UR1734	–	–	Ieškoti
71	CLIP REFRIGERATION PIPE UD4274	–	–	Ieškoti
17	CLUTCH REFRIGERATION COMPRESSOR UE9509	–	–	Ieškoti
18	CONNECTOR LUCAR FEMALE .250 IN. UD5406	–	–	Ieškoti
32	CONTROL VALVE AIR CONDITIONING UD5036	–	–	Ieškoti
136	DEFLECTOR FLAP PARCEL SHELF OUTLET UD4208	–	–	Ieškoti
114	DISTANCE PIECE UD4227	–	–	Ieškoti
27	DRIVE BELTS COMPRESSOR & DYNAMO (MATCHED PAIR) UE5629	–	–	Ieškoti
127	DUCT BLOWER MOTOR TO PARCEL SHELF OUTLET UD4161	–	–	Ieškoti
120	DUCT EVAPORATOR TO BLOWER MOTOR UD4155	–	–	Ieškoti
121	EVAPORATOR BOOT AIR CONDITIONING UD4124	–	–	Ieškoti
76	EXPANSION VALVE AIR CONDITIONING UD4185	–	–	Ieškoti
15	GASKET BOTTOM PLATE AIR CONDITIONING COMPRESSOR CD1806	–	–	Ieškoti
9	GASKET HEAD TO VALVE PLATE AIR CONDITIONING COMPRESSOR CD1790	–	–	Ieškoti
13	GASKET SEAL PLATE AIR CONDITIONING COMPRESSOR CD1801	–	–	Ieškoti
8	GASKET SERVICE VALVE AIR CONDITIONING COMPRESSOR CD1789	–	–	Ieškoti
11	GASKET VALVE PLATE AIR CONDITIONING COMPRESSOR CD1798	–	–	Ieškoti
145	GRILLE EVAPORATOR INTAKE AIR CONDITIONING UD3375	–	–	Ieškoti
43	GROMMET UD1614	–	–	Ieškoti
19	INSULATING SLEEVE LUCAR TERMINAL UD6119	–	–	Ieškoti
141	INTAKE DUCT EVAPORATOR AIR CONDITIONING UD3490	–	–	Ieškoti
140	LEAF SPRING DEFLECTOR FLAP PARCEL SHELF OUTLET UD4212	–	–	Ieškoti
57	LIQUID LINE DRIER AIR CONDITIONING UD4989	–	–	Ieškoti
109	NIPPLE SNAP CONNECTOR UD2141	–	–	Ieškoti
103	NIPPLE SNAP CONNECTOR UD2141	–	–	Ieškoti
37	NUT 2BA K4006Z	–	–	Ieškoti
90	NUT 2BA K4006Z	–	–	Ieškoti
65	NUT 2BA K4006Z	–	–	Ieškoti
23	NUT 2BA K4006Z	–	–	Ieškoti
139	NUT 6BA K4152Z	–	–	Ieškoti
119	NUT PLAIN .250 UNF UA301Z	–	–	Ieškoti
74	NUT PLAIN .250 UNF UA301Z	–	–	Ieškoti
81	NUT PLAIN .250 UNF UA301Z	–	–	Ieškoti
86	NUT PLAIN .250 UNF UA301Z	–	–	Ieškoti
42	NUT REFRIGERATION HOSE TO BRACKET UE8079	–	–	Ieškoti
14	O RING COVER PLATE AIR CONDITIONING COMPRESSOR CD1805	–	–	Ieškoti
16	O RING OIL SCREW AIR CONDITIONING COMPRESSOR CD1807	–	–	Ieškoti
124	OUTLET DUCT EVAPORATOR AIR CONDITIONING UD5399	–	–	Ieškoti
62	P CLIP RE19626	–	–	Ieškoti
34	P CLIP RE19626	–	–	Ieškoti
61	P CLIP RE16256	–	–	Ieškoti
21	P CLIP (.250 IN.) UD3364	–	–	Ieškoti
82	P CLIP (.625 IN.) UD4205	–	–	Ieškoti
77	P CLIP (1.000 IN.) UD4206	–	–	Ieškoti
48	REFRIGERATION HOSE SILL UD4330	–	–	Ieškoti
75	REFRIGERATION PIPE EVAPORATOR TO EXPANSION VALVE UD4253	–	–	Ieškoti
47	REFRIGERATION PIPE SILL UD4151	–	–	Ieškoti
133	SCREW RB7370	–	–	Ieškoti
88	SCREW BINDING HEAD 2BA X .375 IN. LONG CS30541Z	–	–	Ieškoti
132	SCREW BINDING HEAD NO.4 X .250 IN. LONG CS31020Z	–	–	Ieškoti
130	SCREW BINDING HEAD NO.6 X .375 IN. LONG CS31041Z	–	–	Ieškoti
69	SCREW BINDING HEAD NO.6 X .375 IN. LONG CS31041Z	–	–	Ieškoti
125	SCREW BINDING HEAD NO.6 X .375 IN. LONG CS31041Z	–	–	Ieškoti
137	SCREW CHEESE HEAD 6BA X .300 IN. LONG KB7753	–	–	Ieškoti
143	SCREW CSK HEAD 2BA X .750 IN. LONG CS30564Z	–	–	Ieškoti
123	SCREW HEX HEAD 2BA X .375 IN. LONG CS30141Z	–	–	Ieškoti
95	SCREW PAN HEAD .250 UNF X .500 IN. LONG UA4251Z	–	–	Ieškoti
67	SEAL AIR CONDITIONING PIPE TO FLOOR UB2650	–	–	Ieškoti
12	SEAL CRANKSHAFT AIR CONDITIONING COMPRESSOR CD1802	–	–	Ieškoti
128	SEAL OUTLET DUCT PARCEL SHELF UD4159	–	–	Ieškoti
54	SEALING WASHER REFRIGERATION VALVE UD4550	–	–	Ieškoti
6	SERVICE VALVE AIR CONDITIONING COMPRESSOR (.500 IN. SAE) CD1787	–	–	Ieškoti
7	SERVICE VALVE AIR CONDITIONING COMPRESSOR (.625 IN. SAE) CD1788	–	–	Ieškoti
24	SETSCREW RE22669	–	–	Ieškoti
35	SETSCREW 2BA X .375 IN. LONG UA1501Z	–	–	Ieškoti
63	SETSCREW 2BA X .375 IN. LONG UA1501Z	–	–	Ieškoti
135	SHAFT DEFLECTOR FLAP PARCEL SHELF OUTLET UD4223	–	–	Ieškoti
105	SLEEVE RD7589	–	–	Ieškoti
111	SLEEVE RD7589	–	–	Ieškoti
126	SLEEVE DUCT TO BLOWER MOTOR UD4157	–	–	Ieškoti
59	SOLENOID VALVE AIR CONDITIONING UD6175	–	–	Ieškoti
5	STEP STUD 2BA/.375 UNC UE9528	–	–	Ieškoti
101	SUPPORT BRACKET BLOWER MOTOR LH INNER UD3503	–	–	Ieškoti
102	SUPPORT BRACKET BLOWER MOTOR LH OUTER UD3504	–	–	Ieškoti
108	SUPPORT BRACKET BLOWER MOTOR RH INNER UD3501	–	–	Ieškoti
107	SUPPORT BRACKET BLOWER MOTOR RH OUTER UD3502	–	–	Ieškoti
113	SUPPORT BRACKET INNER BRACKET BLOWER BOOT AIR CONDITIONING LH UD4228	–	–	Ieškoti
112	SUPPORT BRACKET INNER BRACKET BLOWER BOOT AIR CONDITIONING RH UD4226	–	–	Ieškoti
33	SUPPORT BRACKET REFRIGERATION CONTROL VALVE PIPE VALANCE PLATE UD5481	–	–	Ieškoti
40	SUPPORT BRACKET REFRIGERATION HOSE UE8078	–	–	Ieškoti
60	SUPPORT BRACKET SOLENOID VALVE BOOT REFRIGERATION UD5401	–	–	Ieškoti
146	TACK .062 IN. X .375 IN. LONG CS32401R	–	–	Ieškoti
146	TBA XXXXX	–	–	Ieškoti
20	TERMINAL MALE LUCAR .250 IN. (DOUBLE) UD6074	–	–	Ieškoti
122	THERMOSTAT AIR CONDITIONING UD4978	–	–	Ieškoti
49	UNION REFRIGERATION PIPE UD4150	–	–	Ieškoti
53	UNION REFRIGERATION VALVE UD4015	–	–	Ieškoti
64	WASHER PLAIN .200 IN. I.D. K4404Z	–	–	Ieškoti
22	WASHER PLAIN .200 IN. I.D. K4404Z	–	–	Ieškoti
36	WASHER PLAIN .265 IN. I.D. UA1251Z	–	–	Ieškoti
73	WASHER PLAIN .265 IN. I.D. UA1251Z	–	–	Ieškoti
80	WASHER PLAIN .265 IN. I.D. UA1251Z	–	–	Ieškoti
85	WASHER PLAIN .265 IN. I.D. UA1251Z	–	–	Ieškoti
25	WASHER PLAIN .390 IN. I.D. UA1253Z	–	–	Ieškoti
70	WASHER PLAIN 3BA K4446Z	–	–	Ieškoti
138	WASHER PLAIN 5BA K4401Z	–	–	Ieškoti
89	WASHER THICK .185 IN. I.D. UA6101Z	–	–	Ieškoti
99	WASHER THICK .255 IN. I.D. UA6102Z	–	–	Ieškoti
118	WASHER THICK .255 IN. I.D. UA6102Z	–	–	Ieškoti
97	WASHER THICK .255 IN. I.D. UA6102Z	–	–	Ieškoti
