Bentley S2 Continental C series interior lights & fittings – schema ir OEM kodai
Electrical System · 64 pozicijos · 0 skelbimų

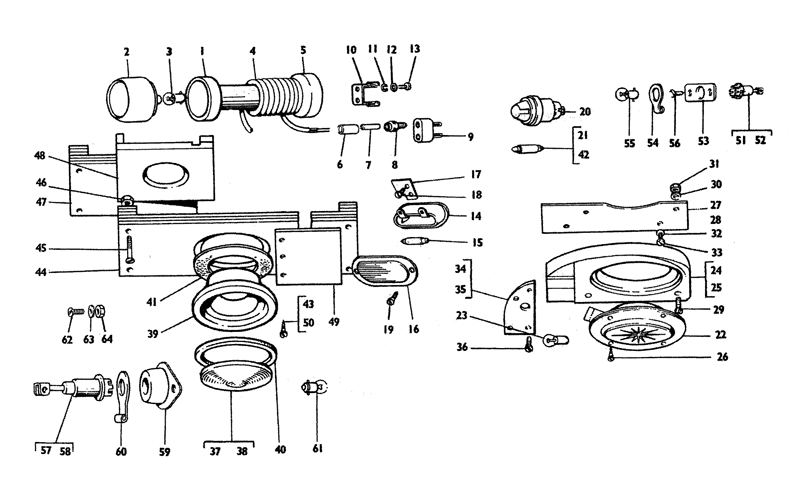

Schema
Paspauskite schemą, kad padidintumėte, arba poziciją lentelėje.
Pozicijos ir kodai
| Nr. | Detalė / OEM kodas | Skelb. | Kaina nuo | |
|---|---|---|---|---|
| 51 | ASSY BULB HOLDER & RETAINING PLATE REAR VANITY MIRROR LAMP UD1717 | – | – | Ieškoti |
| 57 | ASSY BULB HOLDER & SHIELD MAP LIGHT UD1414 | – | – | Ieškoti |
| 20 | ASSY INDICATOR LAMP DOOR PILLAR UD2161 | – | – | Ieškoti |
| 1 | ASSY INSPECTION LAMP UD1839 | – | – | Ieškoti |
| 28 | ASSY MOUNTING PLATE ROOF REAR LAMP LH UB2705 | – | – | Ieškoti |
| 27 | ASSY MOUNTING PLATE ROOF REAR LAMP RH UB2704 | – | – | Ieškoti |
| 47 | ASSY SUPPORT ROOF LAMP UW2353 | – | – | Ieškoti |
| 39 | BEZEL ROOF LAMP CD1571 | – | – | Ieškoti |
| 42 | BULB 1214V 5W6W RD4241 | – | – | Ieškoti |
| 21 | BULB 1214V 5W6W RD4241 | – | – | Ieškoti |
| 23 | BULB 12V 6W RF4518 | – | – | Ieškoti |
| 58 | BULB HOLDER MAP LIGHT UD1413 | – | – | Ieškoti |
| 52 | BULB HOLDER MAP LIGHT UD1413 | – | – | Ieškoti |
| 55 | BULB NO 989 12V 6W RD4997 | – | – | Ieškoti |
| 3 | BULB NO 989 12V 6W RD4997 | – | – | Ieškoti |
| 61 | BULB NO 989 12V 6W RD4997 | – | – | Ieškoti |
| 4 | CABLE INSPECTION LAMP UD1865 | – | – | Ieškoti |
| 8 | CABLE SLEEVE RD4868 | – | – | Ieškoti |
| 7 | CABLE SLEEVE RD4869 | – | – | Ieškoti |
| 6 | CASING INSPECTION LAMP RD4865 | – | – | Ieškoti |
| 11 | CLIP PLUG INSPECTION LAMP RD4531 | – | – | Ieškoti |
| 15 | CLOCK (BENTLEY) UD4241 | – | – | Ieškoti |
| 32 | DISTANCE PIECE RB5817 | – | – | Ieškoti |
| 60 | EARTH CONNECTION MAP LAMP & REAR VANITY MIRROR LAMP UD2248 | – | – | Ieškoti |
| 54 | EARTH CONNECTION MAP LAMP & REAR VANITY MIRROR LAMP UD2248 | – | – | Ieškoti |
| 36 | GASKET REAR ROOF LAMP UW2607 | – | – | Ieškoti |
| 14 | INTERIOR LAMP CAPPING RAIL UD4754 | – | – | Ieškoti |
| 16 | LENS INTERIOR LAMP CAPPING RAIL UD4934 | – | – | Ieškoti |
| 38 | LENS ROOF LAMP CD1570 | – | – | Ieškoti |
| 2 | LIGHT UNIT INSPECTION LAMP UD1838 | – | – | Ieškoti |
| 35 | MOUNTING PLATE ROOF LAMP UB2609 | – | – | Ieškoti |
| 34 | MOUNTING PLATE ROOF LAMP UB2608 | – | – | Ieškoti |
| 49 | NMOUNTING PLATE ROOF LAMP UB2607 | – | – | Ieškoti |
| 22 | NO DESCRIPTION UD4903 | – | – | Ieškoti |
| 31 | NUT 2BA K4006Z | – | – | Ieškoti |
| 64 | NUT 4BA K4004ZP | – | – | Ieškoti |
| 46 | NUT LOCK 2BA K4307Z | – | – | Ieškoti |
| 10 | PLUG INSPECTION LAMP RD4333 | – | – | Ieškoti |
| 53 | RETAINING PLATE REAR VANITY MIRROR LAMP UD1718 | – | – | Ieškoti |
| 37 | ROOF LAMP UD4841 | – | – | Ieškoti |
| 26 | SCREW RB6289 | – | – | Ieškoti |
| 13 | SCREW CHEESE HEAD 5BA X .250 IN. LONG K1702Z | – | – | Ieškoti |
| 45 | SCREW CSK HEAD 2BA X .625 IN. LONG CS30563Z | – | – | Ieškoti |
| 18 | SCREW CSK HEAD 4BA X .375 IN. LONG CS30052Z | – | – | Ieškoti |
| 62 | SCREW CSK HEAD 4BA X .375 IN. LONG CS30052SS | – | – | Ieškoti |
| 19 | SCREW CSK HEAD 4BA X .500 IN. LONG CS30053SS | – | – | Ieškoti |
| 56 | SCREW CSK HEAD NO.3 X .375 IN. LONG CS31333Z | – | – | Ieškoti |
| 29 | SCREW PAN HEAD 2BA X .750 IN. LONG CS30544Z | – | – | Ieškoti |
| 33 | SCREW PAN HEAD 2BA X .750 IN. LONG CS30544Z | – | – | Ieškoti |
| 43 | SCREW WOOD CSK HEAD NO.4 X .500 IN. LONG CS31344Z | – | – | Ieškoti |
| 36 | SCREW WOOD CSK HEAD NO.6 X .500 IN. LONG CS31363Z | – | – | Ieškoti |
| 40 | SEAL ROOF LAMP CD1572 | – | – | Ieškoti |
| 59 | SHIELD MAP LIGHT UD1412 | – | – | Ieškoti |
| 5 | SLEEVE EARTH CABLE INSPECTION LAMP UD2174 | – | – | Ieškoti |
| 48 | SUPPORT ROOF LAMP UW1869 | – | – | Ieškoti |
| 44 | SUPPORT ROOF LAMP UW2081 | – | – | Ieškoti |
| 25 | SUPPORT ROOF LAMP REAR LH UW1873 | – | – | Ieškoti |
| 24 | SUPPORT ROOF LAMP REAR RH UW1872 | – | – | Ieškoti |
| 17 | TAPPING PLATE INTERIOR LAMP UD4755 | – | – | Ieškoti |
| 9 | TERMINAL INSPECTION LAMP SOCKET D70396 | – | – | Ieškoti |
| 63 | WASHER CUP NO.6 CS34334E | – | – | Ieškoti |
| 30 | WASHER PLAIN .200 IN. I.D. K4404Z | – | – | Ieškoti |
| 41 | WASHER ROOF LAMP CD1573 | – | – | Ieškoti |
| 12 | WASHER SPRING 5BA K9003Z | – | – | Ieškoti |
| 50 | WOODSCREW CS34021E | – | – | Ieškoti |
